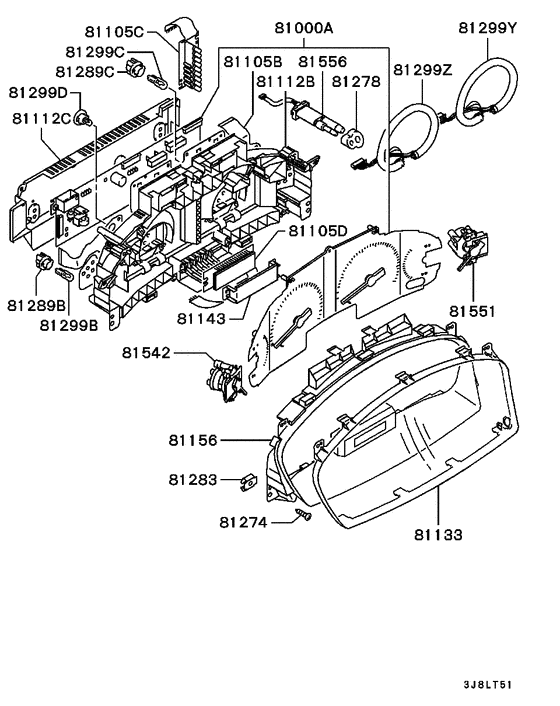

Meter,gauge & clock (COMBINATION METER(H-LINE)) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81000A
|
81000A
MN177353 METER ASSY,COMBINATION |
MN177353 |
US $1,317.68 |
||
|
81105B
|
81105B
AW348386
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
AW348386 |
— | ||
|
81105B
|
81105B
MR444898
BOARD, INSTRUMENT PANEL PRINTED CIRCUIT
|
MR444898 |
— | ||
|
81105B
|
81105B
MR512806
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR512806 |
— | ||
|
81105C
|
81105C
MR298517
BOARD, INSTRUMENT PANEL PRINTED CIRCUIT
|
MR298517 |
— | ||
|
81105C
|
81105C
MR512798
BOARD,INSTRUMENT PANEL PRINTED CIRCUIT
|
MR512798 |
— | ||
|
81105D
|
81105D
MR216189
BOARD, INSTRUMENT PANEL PRINTED CIRCUIT
|
MR216189 |
— | ||
|
81112B
|
81112B
AW348378
CASE,COMBINATION METER
|
AW348378 |
— | ||
|
81112B
|
81112B
MN177402
METER ASSY,COMBINATION
|
MN177402 |
— | ||
|
81112B
|
81112B
MR512767
CASE,COMBINATION METER
|
MR512767 |
— | ||
|
81112C
|
81112C
MR216181
CASE, COMBINATION METER
|
MR216181 |
— | ||
|
81112C
|
81112C
MR512776
CASE,COMBINATION METER
|
MR512776 |
— | ||
|
81133
|
81133
MR216180
GLASS, COMBINATION METER
|
MR216180 |
— | ||
|
81133
|
81133
MR512781
GLASS,COMBINATION METER
|
MR512781 |
— | ||
|
81143
|
81143
MR216190
LENS, COMBINATION METER INDICATOR
|
MR216190 |
— | ||
|
81156
|
81156
MR216179
PLATE, COMBINATION METER WINDOW
|
MR216179 |
— | ||
|
81156
|
81156
MR512777
PLATE,COMBINATION METER WINDOW
|
MR512777 |
— | ||
|
81274
|
81274
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
81283
|
81283
MB326019 NUT, INSTRUMENT PANEL METERSpring,5 |
MB326019 |
US $2.19 |
||
|
81289B
|
81289B
MR066067
SOCKET,INSTRUMENT PANEL METER
|
MR066067 |
— | ||
|
81289C
|
81289C
MB562980
SOCKET, INSTRUMENT PANEL METER
|
MB562980 |
— | ||
|
81299B
|
81299B
MR066068
BULB,INSTRUMENT PANEL METER
|
MR066068 |
— | ||
|
81299B
|
81299B
MR512804 BULB, INSTRUMENT PANEL METER |
MR512804 |
US $2.66 |
||
|
81299C
|
81299C
MR149329 BULB, INSTRUMENT PANEL METER14v-3.0w |
MR149329 |
US $3.56 |
||
|
81299Y
|
81299Y
MR330831
BULB, INSTRUMENT PANEL METER
|
MR330831 |
— | ||
|
81299Z
|
81299Z
MR308529
BULB, INSTRUMENT PANEL METER
|
MR308529 |
— | ||
|
81542
|
81542
MR216184 GAUGE, FUEL |
MR216184 |
US $158.36 |
||
|
81542
|
81542
MR512782
GAUGE,FUEL
|
MR512782 |
— | ||
|
81551
|
81551
MR216185 GAUGE, WATER TEMPERATURE |
MR216185 |
US $158.36 |
||
|
81551
|
81551
MR512786
GAUGE,WATER TEMPERATURE
|
MR512786 |
— | ||
|
81556
|
81556
AW348390
KNOB,TRIP METER
|
AW348390 |
— | ||
|
81556
|
81556
MR117121
KNOB, TRIP METER
|
MR117121 |
— | ||
|
81556
|
81556
MR218263
KNOB, TRIP METER
|
MR218263 |
— |
