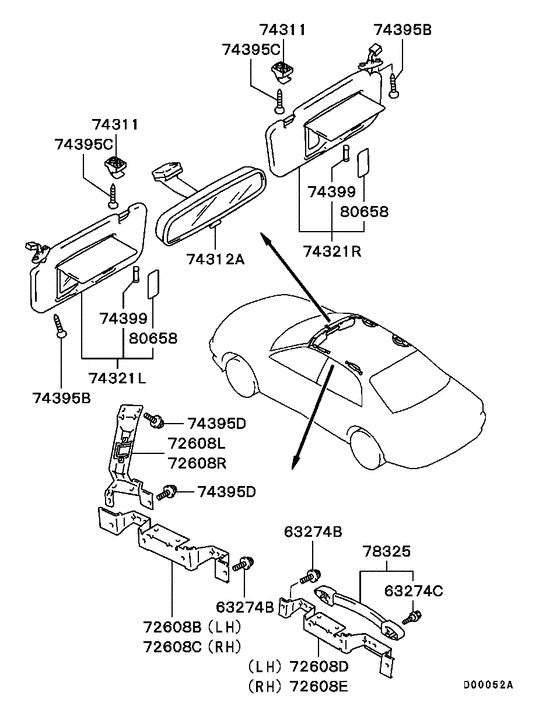

Mirror,grips & sunvisor (0209.1-) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63274B
|
63274B
MS350169 SCREW, ENG CONTROL EQUIPWasher assembled,6x16 |
MS350169 |
from US $2.07 |
||
|
63274C
|
63274C
MS350048 SCREW, STEERING COLUMN SWITCHWasher assembled,5x30 |
MS350048 |
US $2.22 |
||
|
72608B
|
72608B
MR996084
BRACKET,HEADLINING
|
MR996084 |
— | ||
|
72608C
|
72608C
MR996085
BRACKET,HEADLINING
|
MR996085 |
— | ||
|
72608D
|
72608D
MR996087
BRACKET,HEADLINING
|
MR996087 |
— | ||
|
72608E
|
72608E
MR996088
BRACKET,HEADLINING
|
MR996088 |
— | ||
|
72608L
|
72608L
MR996075
BRACKET,HEADLINING,LH
|
MR996075 |
— | ||
|
72608R
|
72608R
MR996076
BRACKET,HEADLINING,RH
|
MR996076 |
— | ||
|
74311
|
74311
MR216998 HOLDER, SUNVISOR |
MR216998 |
US $5.88 |
||
|
74311
|
74311
MR216999 HOLDER, SUNVISOR |
MR216999 |
US $5.88 |
||
|
74312A
|
74312A
MR908667
MIRROR ASSY,ROOM
|
MR908667 |
— | ||
|
74312A
|
74312A
MR921278 MIRROR ASSY, ROOM |
MR921278 |
US $92.50 |
||
|
74321L
|
74321L
MN177351HA
SUNVISOR,LH
|
MN177351HA |
— | ||
|
74321L
|
74321L
MN177351YA
SUNVISOR,LH
|
MN177351YA |
— | ||
|
74321L
|
74321L
MR366866
SUNVISOR,LH
|
MR366866 |
— | ||
|
74321L
|
74321L
MR366867
SUNVISOR,LH
|
MR366867 |
— | ||
|
74321L
|
74321L
MR366870
SUNVISOR,LH
|
MR366870 |
— | ||
|
74321L
|
74321L
MR366871
SUNVISOR,LH
|
MR366871 |
— | ||
|
74321L
|
74321L
MR751879
SUNVISOR,LH
|
MR751879 |
— | ||
|
74321L
|
74321L
MR751880
SUNVISOR,LH
|
MR751880 |
— | ||
|
74321L
|
74321L
MR996073HA
SUNVISOR,LH
|
MR996073HA |
— | ||
|
74321R
|
74321R
MN177352HA
SUNVISOR,RH
|
MN177352HA |
— | ||
|
74321R
|
74321R
MN177352YA
SUNVISOR,RH
|
MN177352YA |
— | ||
|
74321R
|
74321R
MR366868
SUNVISOR,RH
|
MR366868 |
— | ||
|
74321R
|
74321R
MR366869
SUNVISOR,RH
|
MR366869 |
— | ||
|
74321R
|
74321R
MR751887
SUNVISOR,RH
|
MR751887 |
— | ||
|
74321R
|
74321R
MR751888
SUNVISOR,RH
|
MR751888 |
— | ||
|
74321R
|
74321R
MR975422
SUNVISOR,RH
|
MR975422 |
— | ||
|
74321R
|
74321R
MR975423
SUNVISOR,RH
|
MR975423 |
— | ||
|
74321R
|
74321R
MR996074HA
SUNVISOR,RH
|
MR996074HA |
— | ||
|
74395B
|
74395B
AW350769 SCREW, SUNVISOR6x20 |
AW350769 |
US $2.22 |
||
|
74395B
|
74395B
MF205658 SCREW, ROOF LIDMachine cone point,5x25 |
MF205658 |
US $3.97 |
||
|
74395B
|
74395B
MF206106 SCREW, ROOM MIRRORMachine cone point,5x20 |
MF206106 |
US $1.92 |
||
|
74395C
|
74395C
MS100012 BOLT, GUARD BARCross recessed head,6x16 |
MS100012 |
US $0.44 |
||
|
74395C
|
74395C
MS200130 SCREW, QTR WINDOWMachine tapping,6x16 |
MS200130 |
US $3.69 |
||
|
74395D
|
74395D
MS350129 SCREW, FUEL TANKWasher assembled,6x16 |
MS350129 |
US $2.74 |
||
|
74399
|
74399
MB361848 BULB, SUNVISOR12v-1.5w |
MB361848 |
US $4.29 |
||
|
74399
|
74399
MN166598 BULB, SUNVISOR2wx12v |
MN166598 |
US $4.59 |
||
|
78325
|
78325
MR250913
GRIP,ROOF INSIDE ASSIST
|
MR250913 |
— | ||
|
78325
|
78325
MR250914
GRIP,ROOF INSIDE ASSIST
|
MR250914 |
— | ||
|
78325
|
78325
MR250915
GRIP,ROOF INSIDE ASSIST
|
MR250915 |
— | ||
|
78325
|
78325
MR250916
GRIP,ROOF INSIDE ASSIST
|
MR250916 |
— | ||
|
78325
|
78325
MR330017 GRIP, ROOF INSIDE ASSIST |
MR330017 |
US $19.84 |
||
|
78325
|
78325
MR330018 GRIP, ROOF INSIDE ASSIST |
MR330018 |
US $16.28 |
||
|
78325
|
78325
MR330019 GRIP, ROOF INSIDE ASSIST |
MR330019 |
US $45.14 |
||
|
78325
|
78325
MR330020 GRIP, ROOF INSIDE ASSIST |
MR330020 |
US $29.60 |
||
|
78325
|
78325
MR330021 GRIP, ROOF INSIDE ASSIST |
MR330021 |
US $45.14 |
||
|
78325
|
78325
MR330022 GRIP, ROOF INSIDE ASSIST |
MR330022 |
US $29.60 |
||
|
78325
|
78325
MR739203 GRIP, ROOF INSIDE ASSISTLh/rh(w/o hanger) |
MR739203 |
US $59.20 |
||
|
78325
|
78325
MR739204 GRIP, ROOF INSIDE ASSISTLh/rh(w/o hanger) |
MR739204 |
US $59.20 |
||
|
78325
|
78325
MR908884
GRIP,ROOF INSIDE ASSIST
|
MR908884 |
— | ||
|
78325
|
78325
MR908885
GRIP,ROOF INSIDE ASSIST
|
MR908885 |
— | ||
|
78325
|
78325
MR908889
GRIP,ROOF INSIDE ASSIST
|
MR908889 |
— | ||
|
78325
|
78325
MR908890
GRIP,ROOF INSIDE ASSIST
|
MR908890 |
— | ||
|
78325
|
78325
MR908891
GRIP,ROOF INSIDE ASSIST
|
MR908891 |
— | ||
|
78325
|
78325
MR908892
GRIP,ROOF INSIDE ASSIST
|
MR908892 |
— | ||
|
78325
|
78325
MR996272HA
GRIP,ROOF INSIDE ASSIST
|
MR996272HA |
— | ||
|
78325
|
78325
MR996272YA
GRIP,ROOF INSIDE ASSIST
|
MR996272YA |
— | ||
|
80658
|
80658
MR148280 LENS, SUNVISOR LAMP |
MR148280 |
US $3.85 |
||
|
80658
|
80658
MR471704 LENS, SUNVISOR LAMP |
MR471704 |
US $4.59 |
