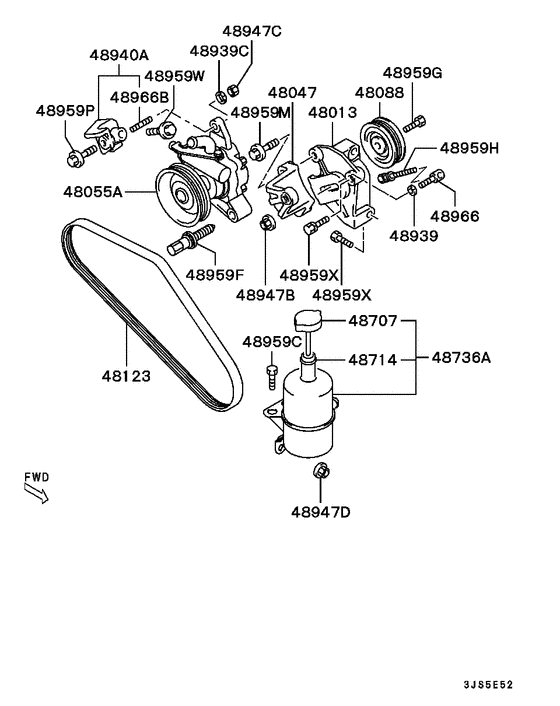

Power steering oil pump (INSTALLING PARTS) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48013
|
48013
MD318634 BRACKET, P/S OIL PUMP |
MD318634 |
US $62.16 |
||
|
48047
|
48047
MD318635 BRACKET, P/S OIL PUMP BELT TENSIONER |
MD318635 |
US $32.56 |
||
|
48055A
|
48055A
MR197688 OIL PUMP ASSY, P/S |
MR197688 |
US $1,110.93 |
||
|
48088
|
48088
MD310150 PULLEY, P/S OIL PUMP BELT TENSION |
MD310150 |
US $108.04 |
||
|
48123
|
48123
MD322330 BELT, P/S900 |
MD322330 |
US $40.70 |
||
|
48123
|
48123
MN158102
BELT, P/S
|
MN158102 |
— | ||
|
48123
|
48123
MN187017 BELT, P/S900 |
MN187017 |
from US $34.40 |
||
|
48707
|
48707
MR272335 CAP, P/S OIL RESERVOIR |
MR272335 |
from US $16.22 |
||
|
48714
|
48714
MB350950 FILTER, P/S OIL RESERVOIR |
MB350950 |
from US $9.15 |
||
|
48736A
|
48736A
MR103012 RESERVOIR ASSY, P/S OIL |
MR103012 |
US $89.54 |
||
|
48736A
|
48736A
MR928364 RESERVOIR ASSY, P/S OIL |
MR928364 |
US $89.54 |
||
|
48939
|
48939
MF450155 WASHER, ENG RR MOUNTINGPlain,10 |
MF450155 |
from US $1.01 |
||
|
48939C
|
48939C
MF450406 WASHERSpring,10 |
MF450406 |
from US $0.41 |
||
|
48940A
|
48940A
MD332036
STAY ASSY,P/S OIL PUMP
|
MD332036 |
— | ||
|
48947B
|
48947B
MF430006 NUT10 |
MF430006 |
from US $1.35 |
||
|
48947B
|
48947B
MF430361 NUT, AIR CLEANER INR10 |
MF430361 |
from US $0.98 |
||
|
48947C
|
48947C
MF430122 NUT, ENG RR MOUNTING10 |
MF430122 |
from US $0.99 |
||
|
48947D
|
48947D
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
48959C
|
48959C
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
48959F
|
48959F
MB636984
BOLT, P/S OIL PUMP
|
MB636984 |
— | ||
|
48959G
|
48959G
MD310153 BOLT, P/S OIL PUMP |
MD310153 |
US $2.66 |
||
|
48959H
|
48959H
MD195640 BOLT, COOLING FAN10x57 |
MD195640 |
from US $6.03 |
||
|
48959M
|
48959M
MF244885 BOLT, TIMING BELT TRAINWasher assembled,10x38 |
MF244885 |
US $3.56 |
||
|
48959P
|
48959P
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
48959W
|
48959W
MF244890 BOLT, INLET MANIFOLDWasher assembled,10x60 |
MF244890 |
US $3.55 |
||
|
48959X
|
48959X
MF300848 BOLT, T/CWasher assembled,10x38 |
MF300848 |
US $2.52 |
||
|
48966
|
48966
MD124336 STUD, COOLING FAN10x40 |
MD124336 |
from US $6.55 |
||
|
48966B
|
48966B
MF401955
STUD, ENG RR PLATE
|
MF401955 |
— | ||
|
48966B
|
48966B
MF402585 STUD, CYLINDER HEAD10x25 |
MF402585 |
US $2.74 |
