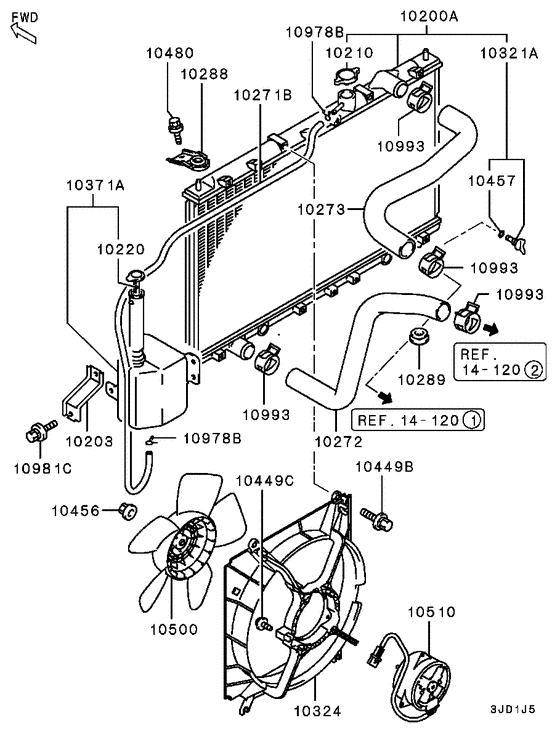

Radiator,hose & condenser tank Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MR431051 RADIATOR ASSY |
MR431051 |
US $1,256.53 |
||
|
10203
|
10203
MR224271 BRACKET, RADIATOR CONDENSER TANK |
MR224271 |
US $8.44 |
||
|
10210
|
10210
MB660667
CAP, RADIATOR
|
MB660667 |
— | ||
| replacement | |||||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10210
|
10210
MR481216 CAP, RADIATOR |
MR481216 |
from US $16.03 |
||
|
10220
|
10220
AW349383
CAP, RADIATOR CONDENSER TANK
|
AW349383 |
— | ||
| replacement | |||||
|
10220
|
10220
AW349382
CAP, RADIATOR CONDENSER TANK
|
AW349382 |
— | ||
|
10220
|
10220
MR258784
CAP,RADIATOR CONDENSER TANK
|
MR258784 |
— | ||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10272
|
10272
AW350831 HOSE, RADIATOR, LWR |
AW350831 |
US $40.70 |
||
|
10273
|
10273
AW342518 HOSE, RADIATOR, UPR |
AW342518 |
from US $7.33 |
||
|
10273
|
10273
MR450959
HOSE,RADIATOR,UPR
|
MR450959 |
— | ||
|
10288
|
10288
MR161149
INSULATOR, RADIATOR SUPPORT, UPR
|
MR161149 |
— | ||
|
10289
|
10289
MB605172
INSULATOR, RADIATOR SUPPORT, LWR
|
MB605172 |
— | ||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10324
|
10324
MR204359 SHROUD, COOLING FAN |
MR204359 |
US $101.92 |
||
|
10324
|
10324
MR552032
SHROUD,COOLING FAN
|
MR552032 |
— | ||
|
10371A
|
10371A
AW345766
TANK ASSY, RADIATOR CONDENSER
|
AW345766 |
— | ||
|
10371A
|
10371A
MR926991
TANK ASSY,RADIATOR CONDENSER
|
MR926991 |
— | ||
|
10449B
|
10449B
MB605073 BOLT, RADIATORWasher assembled |
MB605073 |
US $1.37 |
||
|
10449C
|
10449C
MB890293 BOLT, RADIATOR5x11 |
MB890293 |
from US $1.79 |
||
|
10456
|
10456
MB356066
NUT, RADIATOR
|
MB356066 |
— | ||
| replacement | |||||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MU241006 BOLT, RADIATOR SUPPORTGimlet,8x20 |
MU241006 |
US $3.01 |
||
|
10500
|
10500
MB924441 FAN, COOLING |
MB924441 |
US $79.18 |
||
|
10500
|
10500
MR552034
FAN,COOLING
|
MR552034 |
— | ||
|
10510
|
10510
MR160894 MOTOR, COOLING FAN |
MR160894 |
US $388.75 |
||
|
10510
|
10510
MR552033
MOTOR,COOLING FAN
|
MR552033 |
— | ||
|
10978B
|
10978B
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10981C
|
10981C
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
10981C
|
10981C
MS240396 BOLT, AIR GUIDE PANELWasher assembled,8x16 |
MS240396 |
US $2.52 |
||
|
10993
|
10993
AW347012 CLIP, RADIATOR PIPING |
AW347012 |
US $4.59 |
||
|
