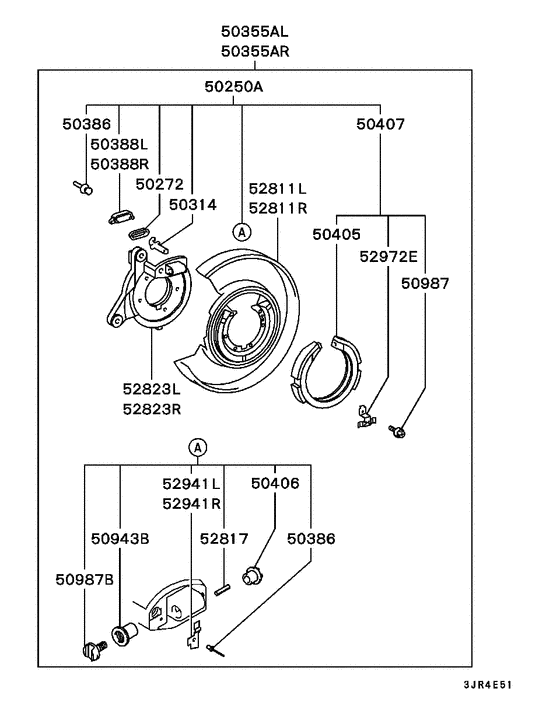

Rear wheel brake (PARKING BRAKE) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50250A
|
50250A
AW349516 BRAKE SUB ASSY, PARKING |
AW349516 |
US $201.28 |
||
|
50272
|
50272
AW350162 CAP, PARKING BRAKE OPERATING LEVER |
AW350162 |
US $21.89 |
||
|
50314
|
50314
AW350161 LEVER, PARKING BRAKE OPERATING |
AW350161 |
US $25.31 |
||
|
50355AL
|
50355AL
MR909981
PLATE & SHOE ASSY,PARKING BRAKE,LH
|
MR909981 |
— | ||
|
50355AL
|
50355AL
MR928261
PLATE & SHOE ASSY,PARKING BRAKE,LH
|
MR928261 |
— | ||
|
50355AR
|
50355AR
MR909982
PLATE & SHOE ASSY,PARKING BRAKE,RH
|
MR909982 |
— | ||
|
50355AR
|
50355AR
MR928262
PLATE & SHOE ASSY,PARKING BRAKE,RH
|
MR928262 |
— | ||
|
50386
|
50386
AW350177
RIVET, PARKING BRAKE
|
AW350177 |
— | ||
|
50388L
|
50388L
AW350178
RETAINER,PARKING BRAKE OPERATING LEVER COVER
|
AW350178 |
— | ||
|
50388L
|
50388L
MR908669 RETAINER, PARKING BRAKE OPERATING LEVER COVER, LH |
MR908669 |
US $13.13 |
||
|
50388R
|
50388R
AW350163
RETAINER,PARKING BRAKE OPERATING LEVER COVER
|
AW350163 |
— | ||
|
50388R
|
50388R
MR908670 RETAINER, PARKING BRAKE OPERATING LEVER COVER, RH |
MR908670 |
US $13.13 |
||
|
50405
|
50405
MR901150 SHOE, PARKING BRAKE |
MR901150 |
US $54.02 |
||
|
50406
|
50406
AW350167 SLEEVE, PARKING BRAKE SHOE ADJUSTER |
AW350167 |
US $6.07 |
||
|
50407
|
50407
AW349515 SHOE KIT, PARKING BRAKE |
AW349515 |
US $58.46 |
||
|
50407
|
50407
MR929891 SHOE KIT,PARKING BRAKE |
MR929891 |
US $62.16 |
||
|
50943B
|
50943B
AW350165 NUT, PARKING BRAKE |
AW350165 |
US $5.18 |
||
|
50987
|
50987
AW350171 SCREW, PARKING BRAKESelf tapping |
AW350171 |
US $3.85 |
||
|
50987B
|
50987B
AW350164 SCREW, PARKING BRAKE |
AW350164 |
US $4.44 |
||
|
52811L
|
52811L
AW350175 COVER, RR BRAKE, LH |
AW350175 |
US $43.78 |
||
|
52811R
|
52811R
AW350176
COVER, RR BRAKE, RH
|
AW350176 |
— | ||
|
52817
|
52817
AW350166 LINK, RR BRAKE CONNECTING |
AW350166 |
US $16.28 |
||
|
52823L
|
52823L
AW350173
PLATE,RR BRAKE BACKING,LH
|
AW350173 |
— | ||
|
52823R
|
52823R
AW350174
PLATE,RR BRAKE BACKING,RH
|
AW350174 |
— | ||
|
52941L
|
52941L
AW350168
SPACER, PARKING BRAKE
|
AW350168 |
— | ||
|
52941R
|
52941R
AW350169
SPACER, PARKING BRAKE
|
AW350169 |
— | ||
|
52972E
|
52972E
MR908390 CLIP, RR BRAKE |
MR908390 |
US $3.11 |
