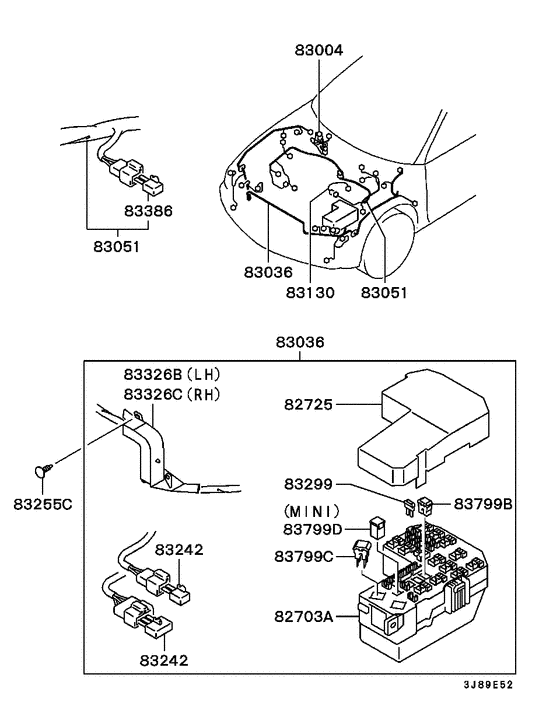

Wiring & attaching parts (WIRING HARNESS..AROUND ENGINE ROOM) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2000
- Sales region
- MMNA/MMAL
- Note
- ES,4FA/T CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- ES
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82703A
|
82703A
8565A017
BOX ASSY,RELAY
|
8565A017 |
— | ||
|
82725
|
82725
MR228702 COVER, RELAY BOX |
MR228702 |
US $44.40 |
||
|
83004
|
83004
MR207145
HARNESS,ABS
|
MR207145 |
— | ||
|
83004
|
83004
MR901667
HARNESS,ABS
|
MR901667 |
— | ||
|
83004
|
83004
MR908597
HARNESS,ABS
|
MR908597 |
— | ||
|
83036
|
83036
AW340620
HARNESS,CHASSIS,FR
|
AW340620 |
— | ||
|
83036
|
83036
AW340627
HARNESS,CHASSIS,FR
|
AW340627 |
— | ||
|
83036
|
83036
AW340629
HARNESS,CHASSIS,FR
|
AW340629 |
— | ||
|
83036
|
83036
MN185322
HARNESS,CHASSIS,FR
|
MN185322 |
— | ||
|
83036
|
83036
MR383428
HARNESS,CHASSIS,FR
|
MR383428 |
— | ||
|
83036
|
83036
MR906411
HARNESS,CHASSIS,FR
|
MR906411 |
— | ||
|
83036
|
83036
MR908148
HARNESS,CHASSIS,FR
|
MR908148 |
— | ||
|
83036
|
83036
MR908149
HARNESS,CHASSIS,FR
|
MR908149 |
— | ||
|
83051
|
83051
AW340692
HARNESS,CONTROL
|
AW340692 |
— | ||
|
83051
|
83051
MR472013
HARNESS,CONTROL
|
MR472013 |
— | ||
|
83051
|
83051
MR906425
HARNESS,CONTROL
|
MR906425 |
— | ||
|
83051
|
83051
MR908161
HARNESS,CONTROL
|
MR908161 |
— | ||
|
83130
|
83130
AW346490 HARNESS, P/S OIL PUMP TERMINAL |
AW346490 |
US $5.18 |
||
|
83242
|
83242
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83242
|
83242
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83242
|
83242
MU804012 DIODE, INSTRUMENT PANEL WIRING1.5a,3p |
MU804012 |
from US $36.26 |
||
|
83242
|
83242
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83255C
|
83255C
MB189333 CLIP, SCUFF PLATE |
MB189333 |
US $2.46 |
||
|
83299
|
83299
MS810876 FUSE, BODY WIRINGBlade(mini) type,10a |
MS810876 |
from US $1.25 |
||
|
83299
|
83299
MS810877 FUSE, SWITCHBlade(mini) type,15a |
MS810877 |
from US $1.15 |
||
|
83299
|
83299
MS810878 FUSE, BODY WIRINGBlade(mini) type,20a |
MS810878 |
from US $1.25 |
||
|
83326B
|
83326B
MR172593 PROTECTOR, CHASSIS HARNESSFront end(lh) |
MR172593 |
US $6.36 |
||
|
83326C
|
83326C
MR172594 PROTECTOR, CHASSIS HARNESSFront end(rh) |
MR172594 |
US $6.36 |
||
|
83386
|
83386
MU804011
DIODE, INSTRUMENT PANEL WIRING
|
MU804011 |
— | ||
| replacement | |||||
|
83386
|
83386
MU804024 DIODE, CHASSIS WIRING2p |
MU804024 |
from US $4.95 |
||
|
83799B
|
83799B
MU840016 FUSIBLE LINK40a,conn type |
MU840016 |
from US $7.98 |
||
|
83799B
|
83799B
MU840018 FUSIBLE LINK60a,conn type |
MU840018 |
US $14.36 |
||
|
83799C
|
83799C
MU840020 FUSIBLE LINK60a,screw up type |
MU840020 |
from US $8.50 |
||
|
83799C
|
83799C
MU840022 FUSIBLE LINK100a,screw up type |
MU840022 |
from US $6.84 |
||
|
83799C
|
83799C
MU840023 FUSIBLE LINK120a,screw up |
MU840023 |
from US $11.47 |
||
|
83799D
|
83799D
MU840031 FUSIBLE LINK30a,conn(mini) type |
MU840031 |
from US $6.34 |
||
|
83799D
|
83799D
MU840032 FUSIBLE LINK40a,conn(mini) type |
MU840032 |
from US $6.83 |
||
|
83799D
|
83799D
MU840035 FUSIBLE LINK30a,conn(mini jw) type |
MU840035 |
US $7.25 |
||
