Component List DIAMANTE
Wiring & attaching parts (ATTACHING PARTS)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
78296	78296 MF453029 SCREW, FR DOOR MOULDING Tapping,5x8	MF453029	US $2.05
83203	83203 MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP 6.6-40/55	MB113038	US $3.97
83213	83213 MF453031 SCREW 5x12 Tapping,5x12	MF453031	from US $1.50
83225	83225 MB056746 CLIP, FUEL VAPOR CONTROL LINE 40	MB056746	US $2.37
83248	83248 MF453031 SCREW 5x12 Tapping,5x12	MF453031	from US $1.50
83249B	83249B MS660152 PLUG, FUEL LINE Taper,6	MS660152	US $3.26
83249C	83249C MR158246 PLUG, RR HEATER WIRING	MR158246	US $3.55
83252	83252 AW337516 NUT, RR BUMPER 6	AW337516	US $2.37
83253	83253 MB381889 GROMMET, ABS CONTROL EQUIP 60x80-(3)	MB381889	US $11.40
83255B	83255B MB157530 CLIP, GEARSHIFT LINK M6	MB157530	from US $1.21
83258	83258 MS240631 BOLT, FUEL FILLER LID PANEL Washer assembled,6x16	MS240631	US $2.87
83258	83258 MU241003 BOLT, EMISSION SOLENOID VALVE Washer assembled,6x20	MU241003	US $1.92
83271	83271 MB249338 BAND, ROCKER COVER L=129.5	MB249338	US $2.87
83271	83271 MB249339 BAND, ENG BREATHER L=169.5	MB249339	from US $1.50
83271	83271 MB617126 BAND, ENG WIRING 201	MB617126	US $3.40
83272	83272 MF243651 BOLT, ENG RR MOUNTING Washer assembled,8x20	MF243651	from US $0.92
83272	83272 MS240095 BOLT, ENG OIL COOLER LINE Washer assembled,8x16	MS240095	US $2.74
83272	83272 MS240121 BOLT, CONNROD Washer assembled,6x16	MS240121	from US $1.70
83272	83272 MS240125 BOLT, FUEL TANK Washer assembled,8x20	MS240125	from US $1.05
83272	83272 MU241003 BOLT, EMISSION SOLENOID VALVE Washer assembled,6x20	MU241003	US $1.92
83272	83272 MU241021 BOLT, ENG WIRING Washer assembled,6x14	MU241021	US $2.37
83273	83273 MU470054 CLAMP, A/C PIPING 23.8	MU470054	US $1.63
83273	83273 MU470055 CLIP, RADIATOR PIPING D=35	MU470055	US $7.10
83273	83273 MU470056 CLAMP, A/C PIPING	MU470056	—
83273	83273 MU470059 CLAMP, A/C PIPING 15.9	MU470059	US $2.37
83273	83273 MU470085 CLAMP, WIRING	MU470085	US $4.29
83274B	83274B MB043630 CLIP, CRUISE CONTROL EQUIP 8.5-40/55	MB043630	US $2.96
	replacement
83274B	83274B MB305867 CLIP, SPEEDOMETER CABLE 8.5-50/65	MB305867	US $4.65
83274B	83274B MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP 6.6-40/55	MB113038	US $3.97
83274B	83274B MB344302 CLAMP, INLET MANIFOLD 8.8-60	MB344302	US $3.26
83274B	83274B MB875984 CLIP, ENG WIRING 6.6-60/75	MB875984	US $3.85
83274C	83274C MR268159 CLIP, ENG WIRING 28	MR268159	US $3.26
83274F	83274F MB636388 CLIP, P/S OIL LINE	MB636388	US $6.70
83274F	83274F MD342188 CLIP, CYLINDER HEAD 40	MD342188	US $2.22
83274H	83274H MS470365 CLIP, ACCEL CONTROL EQUIP	MS470365	—
83274M	83274M MU481157 CLIP, GEARSHIFT LINK 5.4	MU481157	US $3.01
83275	83275 AW337516 NUT, RR BUMPER 6	AW337516	US $2.37
83275	83275 MB286274 NUT, ENG WIRING 6	MB286274	US $1.78
83275	83275 MS440503 NUT, ENG FR MOUNTING Washer assembled,8	MS440503	from US $0.84
83275	83275 MU431012 NUT, FR DOOR LOCKING Washer assembled,6	MU431012	US $0.30
83331	83331 MB876748 PROTECTOR, HARNESS	MB876748	US $5.18
83353C	83353C MR172597 GROMMET, WIRING 80x100	MR172597	US $3.85
83356C	83356C MB189333 CLIP, SCUFF PLATE	MB189333	US $2.46
83356D	83356D MB685927 CLIP, CHASSIS ELECTRICALS	MB685927	US $7.55
83356G	83356G MB479463 CLIP, FOOTREST 6	MB479463	from US $2.18
83357	83357 MB249338 BAND, ROCKER COVER L=129.5	MB249338	US $2.87
83357	83357 MB249340 BAND, FUEL TANK PROTECTOR L=219.5	MB249340	US $2.74
83489	83489 MF453031 SCREW 5x12 Tapping,5x12	MF453031	from US $1.50
83499	83499 MU240121 BOLT, FR DOOR HINGE Washer assembled,8t,8x28	MU240121	US $2.60
83499	83499 MU241021 BOLT, ENG WIRING Washer assembled,6x14	MU241021	US $2.37

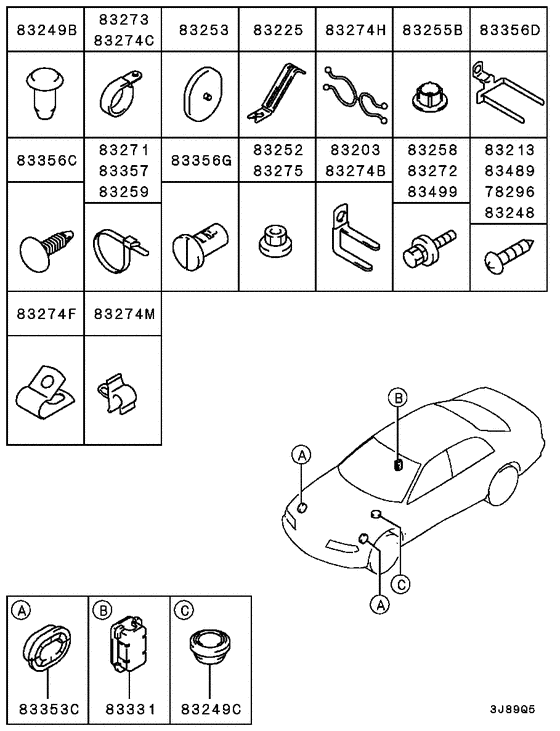

Wiring & attaching parts (ATTACHING PARTS) Diagram Mitsubishi DIAMANTE MMNA/MMAL 1876835-164416

Wiring & attaching parts (ATTACHING PARTS) Diagram Mitsubishi DIAMANTE MMNA/MMAL 1876835-164416
