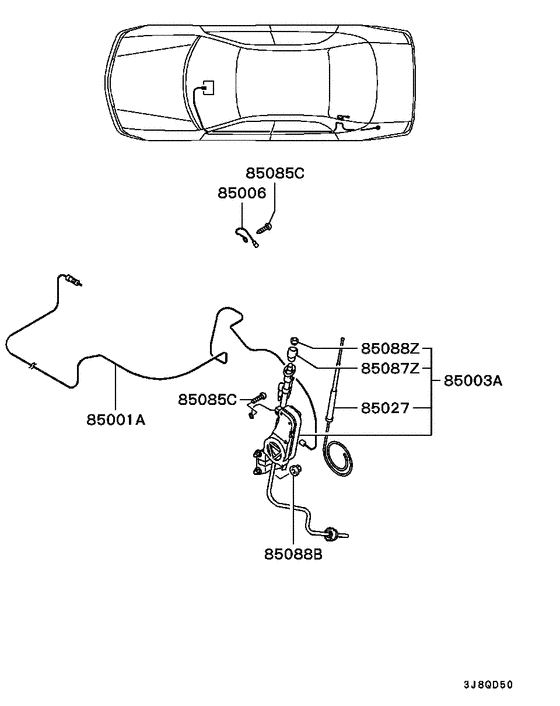

Antenna & condenser (MOTOR ANTENNA(-0208.3)) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85001A
|
85001A
MR172582 AMPLIFIER ASSY,GLASS ANTENNA |
MR172582 |
US $142.82 |
||
|
85001A
|
85001A
MR930742
AMPLIFIER ASSY,GLASS ANTENNA
|
MR930742 |
— | ||
|
85003A
|
85003A
MB953711
ANTENNA ASSY,MOTOR
|
MB953711 |
— | ||
|
85003A
|
85003A
MR924238
ANTENNA ASSY,MOTOR
|
MR924238 |
— | ||
|
85006
|
85006
AW340790
CABLE,ANTENNA
|
AW340790 |
— | ||
|
85027
|
85027
MB953709 ROD, ANTENNA |
MB953709 |
US $59.51 |
||
|
85085C
|
85085C
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.50 |
||
|
85087Z
|
85087Z
MR309852
PLUG, ANTENNA
|
MR309852 |
— | ||
|
85088B
|
85088B
MS440133 NUT, FUEL TANKFlange,6 |
MS440133 |
from US $1.11 |
||
|
85088Z
|
85088Z
MB953708 NUT, ANTENNA |
MB953708 |
from US $1.68 |
