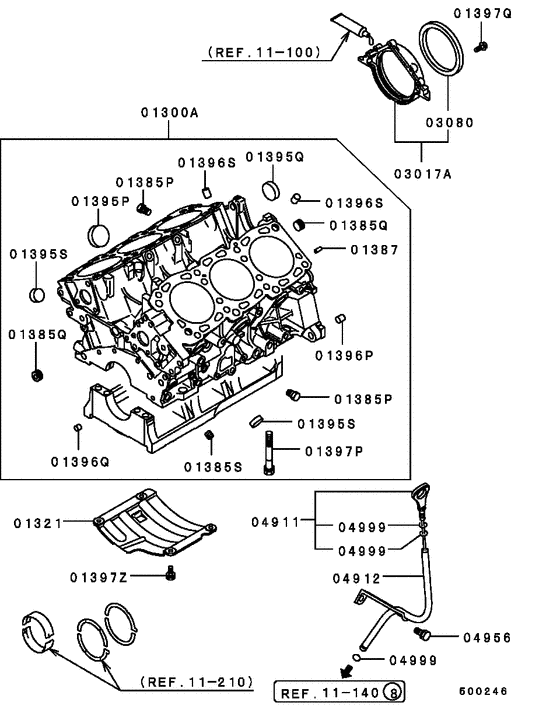

Cylinder block Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01300A
|
01300A
MD346176
BLOCK ASSY,CYLINDER
|
MD346176 |
— | ||
|
01321
|
01321
MD323007
PLATE,CYLINDER BLOCK BAFFLE
|
MD323007 |
— | ||
|
01385P
|
01385P
MD000269 PLUG, CYLINDER BLOCKTaper,1/4 |
MD000269 |
from US $2.52 |
||
|
01385Q
|
01385Q
MD040338 PLUG, CYLINDER BLOCKTaper,3/8 |
MD040338 |
from US $3.53 |
||
|
01385S
|
01385S
MS661142 PLUG, CYLINDER HEADTaper,3/8 |
MS661142 |
from US $3.32 |
||
|
01387
|
01387
MF472403 PIN, CYLINDER BLOCKDowel,6x14 |
MF472403 |
from US $2.42 |
||
|
01395P
|
01395P
MD096863 CAP, CYLINDER BLOCKSealing,41 |
MD096863 |
from US $3.84 |
||
|
01395Q
|
01395Q
MF665541 CAP, CYLINDER BLOCK (HEAD)Sealing,35 |
MF665541 |
from US $1.31 |
||
|
01395S
|
01395S
MF665538 CAP, CYLINDER HEADSealing,25 |
MF665538 |
from US $1.78 |
||
|
01396P
|
01396P
MS471111 BUSHING, CYLINDER BLOCK12x13 |
MS471111 |
from US $1.74 |
||
|
01396Q
|
01396Q
MS471104 BUSHING, CYLINDER HEAD8x9 |
MS471104 |
from US $1.79 |
||
|
01396S
|
01396S
MS471112 BUSHING, CYLINDER BLOCK12x16 |
MS471112 |
US $6.70 |
||
|
01397P
|
01397P
MD173367 BOLT, CYLINDER BLOCK11x96 |
MD173367 |
US $6.07 |
||
|
01397Q
|
01397Q
MF140207 BOLT, ROCKER COVERFlange,6x20 |
MF140207 |
from US $0.72 |
||
|
01397Z
|
01397Z
MF244822 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x12 |
MF244822 |
US $2.60 |
||
|
03017A
|
03017A
MD187561 CASE ASSY, CRANKSHAFT RR OIL SEAL |
MD187561 |
US $91.76 |
||
|
03017A
|
03017A
MN163322
CASE ASSY, CRANKSHAFT RR OIL SEAL
|
MN163322 |
— | ||
|
03080
|
03080
MD120699
OIL SEAL, CRANKSHAFT, RR
|
MD120699 |
— | ||
|
03080
|
03080
MD372251
OIL SEAL, CRANKSHAFT, RR
|
MD372251 |
— | ||
| replacement | |||||
|
03080
|
03080
1052B178 OIL SEALCRANKSHAFTRR |
1052B178 |
from US $23.91 |
||
|
04911
|
04911
MD314130
GAUGE, ENG OIL LEVEL
|
MD314130 |
— | ||
| replacement | |||||
|
04911
|
04911
MD370102 GAUGE, ENG OIL LEVEL |
MD370102 |
US $21.20 |
||
|
04911
|
04911
MD370102 GAUGE, ENG OIL LEVEL |
MD370102 |
US $21.20 |
||
|
04912
|
04912
MD341526
GUIDE,ENG OIL LEVEL GAUGE
|
MD341526 |
— | ||
|
04956
|
04956
MF300001 BOLT, FUEL LINEWasher assembled,10x20 |
MF300001 |
US $2.22 |
||
|
04999
|
04999
MD075834 O-RING, ENG OIL FILLER9 |
MD075834 |
from US $1.15 |
||
|
04999
|
04999
MD317089 O-RING, ENG OIL FILLER |
MD317089 |
from US $1.35 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
11 140
|
Cover,rear plate & oil pan
11 140
|
||||
|
11 140
|
Cover,rear plate & oil pan
11 140
|
||||
|
11 210
|
Piston & crankshaft
11 210
|
||||
|
11 210
|
Piston & crankshaft
11 210
|
||||
|
11 210
|
Piston & crankshaft
11 210
|
||||
|
11 210
|
Piston & crankshaft
11 210
|
||||
