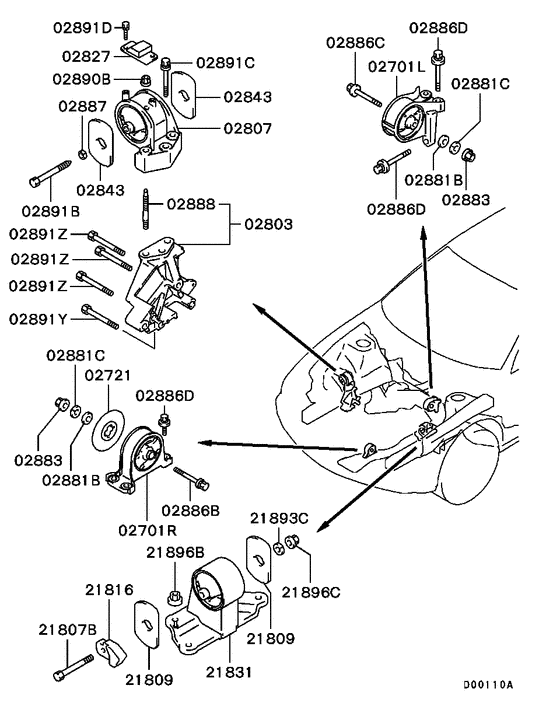

Engine mounting & support (0309.1-) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02701L
|
02701L
MR197368
BRACKET,ENG ROLL STOPPER,LH
|
MR197368 |
— | ||
|
02701L
|
02701L
MR197686 BRACKET, ENG ROLL STOPPER, LH |
MR197686 |
from US $64.99 |
||
|
02701R
|
02701R
MR244458
BRACKET,ENG ROLL STOPPER,RH
|
MR244458 |
— | ||
|
02701R
|
02701R
MR333029 BRACKET, ENG ROLL STOPPER, RH |
MR333029 |
US $161.32 |
||
|
02721
|
02721
MR491000
PROTECTOR,ENG FR ROLL STOPPER HEAT
|
MR491000 |
— | ||
|
02803
|
02803
MD321253 BRACKET, CYLINDER BLOCK ENG FR MOUNTING |
MD321253 |
US $111 |
||
|
02807
|
02807
MR244457 BRACKET, ENG FR MOUNTING |
MR244457 |
from US $232.36 |
||
|
02827
|
02827
MB691195 DAMPER, ENG MOUNTING BRACKET DYNAMIC |
MB691195 |
US $37.74 |
||
|
02843
|
02843
AW325321 STOPPER, ENG FR MOUNTING CUSHION |
AW325321 |
US $9.03 |
||
|
02881B
|
02881B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
02881C
|
02881C
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
02883
|
02883
MF445085 NUT, FUEL TANKSelf locking,10 |
MF445085 |
from US $1.62 |
||
|
02886B
|
02886B
MB844739 BOLT, ENG SUPPORT RODFlange,10x90 |
MB844739 |
US $5.77 |
||
|
02886B
|
02886B
MR244848 BOLT, ENG SUPPORT RODFlange,10x115 |
MR244848 |
from US $4.06 |
||
|
02886C
|
02886C
MB864104
BOLT, ENG SUPPORT ROD
|
MB864104 |
— | ||
|
02886D
|
02886D
MF244882 BOLT, ENG RR MOUNTINGWasher assembled,10x30 |
MF244882 |
from US $1.05 |
||
|
02887
|
02887
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
02888
|
02888
MD314125
STUD, ENG MOUNTING
|
MD314125 |
— | ||
|
02890B
|
02890B
MU431006 NUT, ENG MOUNTING |
MU431006 |
from US $1.44 |
||
|
02891B
|
02891B
MR131865 BOLT, ENG MOUNTING12x118 |
MR131865 |
US $6.22 |
||
|
02891C
|
02891C
MB911545 BOLT, ENG MOUNTING12x74 |
MB911545 |
US $6.57 |
||
|
02891D
|
02891D
MF240049 BOLT, ENG BREATHERWasher assembled,8x12 |
MF240049 |
from US $1.01 |
||
|
02891Y
|
02891Y
MF303378 BOLT, ENG OIL COOLERWashier assembled,10x85 |
MF303378 |
US $4.29 |
||
|
02891Z
|
02891Z
MD314518 BOLT, ENG MOUNTINGWasher assmbled,10x95 |
MD314518 |
US $5.62 |
||
|
21807B
|
21807B
MB242334 BOLT, FR SUSP LWR ARM12x135 |
MB242334 |
US $7.93 |
||
|
21807B
|
21807B
MB338768 BOLT, RR DIFF FR MOUNTING12x130 10t |
MB338768 |
US $7.25 |
||
|
21809
|
21809
AW325321 STOPPER, ENG FR MOUNTING CUSHION |
AW325321 |
US $9.03 |
||
|
21816
|
21816
MD763377
PAD,T/M MOUNTING BRACKET
|
MD763377 |
— | ||
|
21831
|
21831
AW351378
BRACKET,T/M MOUNTING BODY SIDE
|
AW351378 |
— | ||
|
21893C
|
21893C
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
21896B
|
21896B
MU431006 NUT, ENG MOUNTING |
MU431006 |
from US $1.44 |
||
|
21896C
|
21896C
MF430123 NUT, ENG RR MOUNTING12 |
MF430123 |
from US $1.11 |
||
|
21896C
|
21896C
MF434106 NUT, ENG RR MOUNTINGFlange,12 |
MF434106 |
from US $1.17 |
