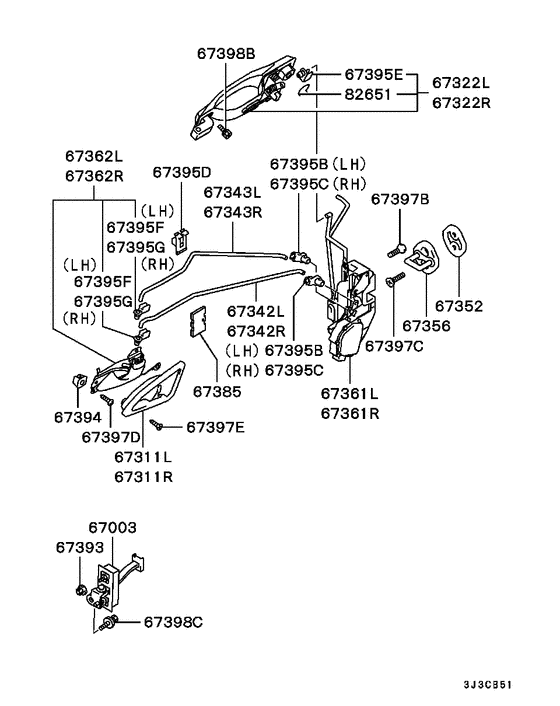

Front door locking Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MR930965 CHECK, FR DOOR |
MR930965 |
US $42.92 |
||
|
67003
|
67003
MR930966 CHECK, FR DOOR |
MR930966 |
US $42.92 |
||
|
67311L
|
67311L
AW391999 COVER,FR DOOR INSIDE HANDLE,LH |
AW391999 |
US $24.42 |
||
|
67311L
|
67311L
AW392003 COVER, FR DOOR INSIDE HANDLE, LH |
AW392003 |
US $37 |
||
|
67311L
|
67311L
AW393147
COVER,FR DOOR INSIDE HANDLE,LH
|
AW393147 |
— | ||
|
67311R
|
67311R
AW392000
COVER,FR DOOR INSIDE HANDLE,RH
|
AW392000 |
— | ||
|
67311R
|
67311R
AW392004 COVER, FR DOOR INSIDE HANDLE, RH |
AW392004 |
US $37.74 |
||
|
67311R
|
67311R
AW393148
COVER,FR DOOR INSIDE HANDLE,RH
|
AW393148 |
— | ||
|
67322L
|
67322L
MR920433 HANDLE, FR DOOR OUTSIDE, LH |
MR920433 |
US $134.68 |
||
|
67322R
|
67322R
MR920434 HANDLE, FR DOOR OUTSIDE, RH |
MR920434 |
US $134.68 |
||
|
67342L
|
67342L
MR170751 ROD, FR DOOR INSIDE HANDLE, LH |
MR170751 |
US $9.47 |
||
|
67342R
|
67342R
MR170752
ROD,FR DOOR INSIDE HANDLE,RH
|
MR170752 |
— | ||
|
67343L
|
67343L
MR169845 ROD, FR DOOR INSIDE LOCK, LH |
MR169845 |
US $7.84 |
||
|
67343R
|
67343R
MR169846 ROD, FR DOOR INSIDE LOCK, RH |
MR169846 |
US $7.84 |
||
|
67352
|
67352
MB888461 SHIM, FR DOOR LATCH STRIKERT=1.6 |
MB888461 |
from US $2.91 |
||
|
67356
|
67356
MB867059 STRIKER, FR DOOR LATCH |
MB867059 |
from US $9.96 |
||
|
67361L
|
67361L
MR236563
LATCH,FR DOOR,LH
|
MR236563 |
— | ||
|
67361R
|
67361R
MN169738
LATCH,FR DOOR,RH
|
MN169738 |
— | ||
|
67361R
|
67361R
MR236564
LATCH,FR DOOR,RH
|
MR236564 |
— | ||
|
67362L
|
67362L
AW392001
HANDLE,FR DOOR INSIDE,LH
|
AW392001 |
— | ||
|
67362L
|
67362L
AW392005 HANDLE, FR DOOR INSIDE, LH |
AW392005 |
US $102.12 |
||
|
67362L
|
67362L
AW393145
HANDLE,FR DOOR INSIDE,LH
|
AW393145 |
— | ||
|
67362R
|
67362R
AW392002
HANDLE,FR DOOR INSIDE,RH
|
AW392002 |
— | ||
|
67362R
|
67362R
AW392006 HANDLE, FR DOOR INSIDE, RH |
AW392006 |
US $125.17 |
||
|
67362R
|
67362R
AW393146
HANDLE,FR DOOR INSIDE,RH
|
AW393146 |
— | ||
|
67385
|
67385
MR906287 CUSHION, FR DOOR LOCK |
MR906287 |
US $2.96 |
||
|
67393
|
67393
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
67394
|
67394
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.82 |
||
|
67395C
|
67395C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395D
|
67395D
MU481161 CLIP, RR DOOR LOCKING |
MU481161 |
US $4.38 |
||
|
67395D
|
67395D
MU481211 CLIP, FR DOOR LOCKING6.9 |
MU481211 |
US $3.69 |
||
|
67395E
|
67395E
MU481254 CLIP, FR DOOR LOCKING |
MU481254 |
US $3.11 |
||
|
67395F
|
67395F
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
67395G
|
67395G
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
67397B
|
67397B
MU200079 SCREW, FR DOOR LOCKINGMachine(plus),6x18 |
MU200079 |
US $3.01 |
||
|
67397C
|
67397C
MU200069 SCREW, FR DOOR LOCKINGWasher assembled,8x22.5 |
MU200069 |
US $3.15 |
||
|
67397D
|
67397D
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
67397E
|
67397E
MF453076 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453076 |
from US $1.76 |
||
|
67397E
|
67397E
MF455136 SCREW, FR SEAT HEADRESTTapping,4x10 |
MF455136 |
US $2.74 |
||
|
67398B
|
67398B
MF240022 BOLT, ROCKER COVERWasher assembled,6x10 |
MF240022 |
US $2.05 |
||
|
67398C
|
67398C
MS240927 BOLT, GEARSHIFT LINKWasher assembled,8x20 |
MS240927 |
US $1.64 |
||
|
82651
|
82651
AW344299 RING, DOOR LOCK CYLINDER |
AW344299 |
US $2.07 |
