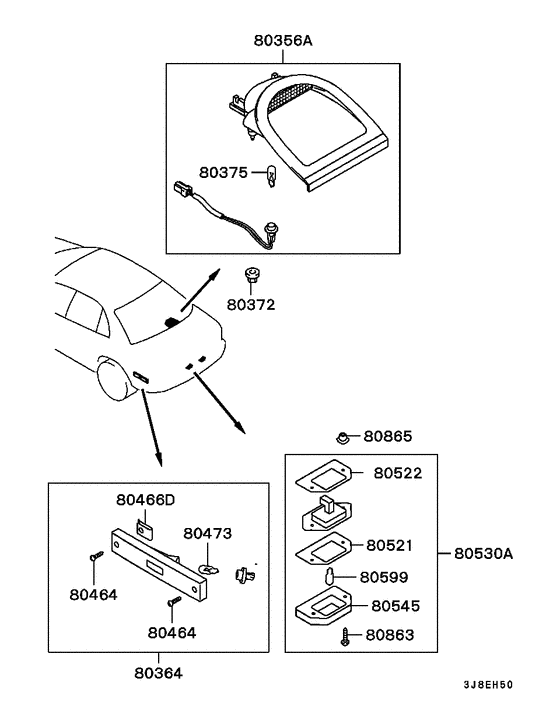

Rear exterior lamp (-0105.3..LICENSE PLATE,HMSL,SIDE MARKER) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80356A
|
80356A
AW392020
LAMP ASSY,HIGH MOUNTED STOP
|
AW392020 |
— | ||
|
80356A
|
80356A
AW392074
LAMP ASSY,HIGH MOUNTED STOP
|
AW392074 |
— | ||
|
80356A
|
80356A
MR908411
LAMP ASSY,HIGH MOUNTED STOP
|
MR908411 |
— | ||
|
80364
|
80364
MR296294
LAMP KIT,SIDE MARKER,RR
|
MR296294 |
— | ||
|
80372
|
80372
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
80375
|
80375
MS820079 BULB, STOP LAMP12v-18w |
MS820079 |
US $9.52 |
||
| replacement | |||||
|
80375
|
80375
MS820023 BULB,RR LAMP |
MS820023 |
from US $4.51 |
||
|
80464
|
80464
MB596495
SCREW, RR LAMP
|
MB596495 |
— | ||
|
80464
|
80464
MF453091 SCREW, FUEL FILLER LID LOCKING |
MF453091 |
from US $1.74 |
||
|
80466D
|
80466D
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80473
|
80473
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80521
|
80521
MB529129 GASKET, LICENSE PLATE LAMP LENS |
MB529129 |
US $2.66 |
||
|
80522
|
80522
MB529130 GASKET, LICENSE PLATE LAMP BASE |
MB529130 |
US $2.22 |
||
|
80522
|
80522
MR300009 GASKET, LICENSE PLATE LAMP BASE |
MR300009 |
US $2.74 |
||
|
80530A
|
80530A
AW343001
LAMP KIT,LICENSE PLATE
|
AW343001 |
— | ||
|
80545
|
80545
MB358848 LENS, LICENSE PLATE LAMP |
MB358848 |
from US $2.87 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.79 |
||
|
80863
|
80863
MR221703 SCREW, LICENSE PLATE LAMPTapping,4x14 |
MR221703 |
US $2.60 |
||
|
80863
|
80863
MS382433
SCREW,LICENSE PLATE LAMP
|
MS382433 |
— | ||
|
80865
|
80865
MB023930 GROMMET, RR END PANEL GARNISHScrew,4 |
MB023930 |
US $3.69 |
||
