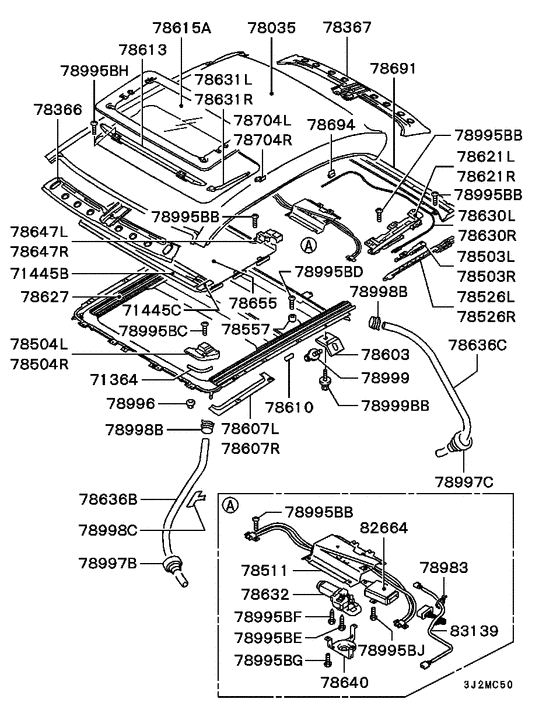

Roof & lid (W/SUNROOF) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71364
|
71364
MR170220 TAPE, SUNROOF SEAL |
MR170220 |
US $2.22 |
||
|
71364
|
71364
MR512309 TAPE, SUNROOF SEAL |
MR512309 |
US $2.52 |
||
|
71445B
|
71445B
MR328672 TAPE, ROOF LID |
MR328672 |
US $9.47 |
||
|
71445C
|
71445C
MR328673 TAPE, ROOF LID |
MR328673 |
US $2.81 |
||
|
78035
|
78035
AW348270
PANEL,ROOF
|
AW348270 |
— | ||
|
78366
|
78366
AW348271 RAIL,ROOF,FRLHD |
AW348271 |
US $128.76 |
||
|
78366
|
78366
AW348310 RAIL, ROOF, FR |
AW348310 |
US $128.76 |
||
|
78366
|
78366
MR927383
RAIL,ROOF,FR
|
MR927383 |
— | ||
|
78367
|
78367
MR920954
RAIL,ROOF,RR
|
MR920954 |
— | ||
|
78503L
|
78503L
MR170203 SLIDER, ROOF LID, LH |
MR170203 |
US $39.96 |
||
|
78503R
|
78503R
MR170204 SLIDER, ROOF LID, RH |
MR170204 |
US $39.96 |
||
|
78504L
|
78504L
MR170218 COVER, SLIDING ROOF RAIL, LH |
MR170218 |
US $9.18 |
||
|
78504R
|
78504R
MR170219 COVER, SLIDING ROOF RAIL, RH |
MR170219 |
US $9.18 |
||
|
78511
|
78511
MR170198 OPERATING UNIT, SLIDING ROOF |
MR170198 |
US $195.36 |
||
|
78526L
|
78526L
MR170215 LINK, ROOF LID LIFTER, LH |
MR170215 |
US $19.24 |
||
|
78526R
|
78526R
MR170216 LINK, ROOF LID LIFTER, RH |
MR170216 |
US $19.24 |
||
|
78557
|
78557
MR170224 PAD, SUNROOF |
MR170224 |
US $5.62 |
||
|
78557
|
78557
MR512308 PAD, SUNROOF |
MR512308 |
US $5.62 |
||
|
78603
|
78603
MR170208 BRACKET, SUNROOF HOUSING SETTING |
MR170208 |
US $6.22 |
||
|
78607L
|
78607L
MR101937 COVER, SUNROOF DECORATION, LH |
MR101937 |
US $45.14 |
||
|
78607R
|
78607R
MR101938 COVER, SUNROOF DECORATION, RH |
MR101938 |
US $45.14 |
||
|
78610
|
78610
MR170221 DAMPER, SUNROOF |
MR170221 |
US $2.52 |
||
|
78613
|
78613
MR170209 DEFLECTOR, SUNROOF |
MR170209 |
US $130.24 |
||
|
78615A
|
78615A
MR101933 GLASS ASSY, SUNROOF LID |
MR101933 |
US $1,278.37 |
||
|
78621L
|
78621L
MR170199 GUIDE, SUNROOF LID, FR LH |
MR170199 |
US $125.80 |
||
|
78621R
|
78621R
MR170200 GUIDE, SUNROOF LID, FR RH |
MR170200 |
US $125.80 |
||
|
78627
|
78627
MR264506
HOUSING,SUNROOF
|
MR264506 |
— | ||
|
78627
|
78627
MR989698
HOUSING,SUNROOF
|
MR989698 |
— | ||
|
78630L
|
78630L
MR248655 CABLE, SUNROOF DRIVE MOTOR, LH |
MR248655 |
US $82.88 |
||
|
78630R
|
78630R
MR248656 CABLE, SUNROOF DRIVE MOTOR, RH |
MR248656 |
US $82.88 |
||
|
78631L
|
78631L
MR170210 LINK, SUNROOF DEFLECTOR, LH |
MR170210 |
US $37 |
||
|
78631R
|
78631R
MR170211 LINK, SUNROOF DEFLECTOR, RH |
MR170211 |
US $37 |
||
|
78632
|
78632
MR101934 MOTOR, SUNROOF DRIVE |
MR101934 |
US $615.89 |
||
|
78636B
|
78636B
AW344249 PIPE, SUNROOF DRAIN |
AW344249 |
US $27.38 |
||
|
78636C
|
78636C
AW344721
PIPE,SUNROOF DRAIN
|
AW344721 |
— | ||
|
78640
|
78640
MR170217 BRACKET, SUNROOF DRIVE MOTOR |
MR170217 |
US $12.88 |
||
|
78640
|
78640
MR989163
BRACKET,SUNROOF DRIVE MOTOR
|
MR989163 |
— | ||
|
78647L
|
78647L
MR170206 PLATE, SUNROOF SUNSHADE SETTING, LH |
MR170206 |
US $37.74 |
||
|
78647R
|
78647R
MR170207 PLATE, SUNROOF SUNSHADE SETTING, RH |
MR170207 |
US $37.74 |
||
|
78655
|
78655
MR287967
SUNSHADE,SUNROOF
|
MR287967 |
— | ||
|
78655
|
78655
MR287968 SUNSHADE, SUNROOF |
MR287968 |
US $580.94 |
||
|
78691
|
78691
MR170214 RAIL, SUNROOF DRIP |
MR170214 |
US $91.76 |
||
|
78694
|
78694
MR170201 LOCK, SUNROOF SUNSHADE |
MR170201 |
US $3.26 |
||
|
78704L
|
78704L
MR170212 BRACKET, SUNROOF DEFLECTOR, LH |
MR170212 |
US $4.74 |
||
|
78704R
|
78704R
MR170213 BRACKET, SUNROOF DEFLECTOR, RH |
MR170213 |
US $4.74 |
||
|
78983
|
78983
MR264504 BAND, ROOF LID |
MR264504 |
US $2.37 |
||
|
78995BB
|
78995BB
MF453330 SCREW, ROOM LAMPTapping,5x10 |
MF453330 |
US $1.78 |
||
|
78995BB
|
78995BB
MR236595 SCREW, ROOF LID |
MR236595 |
US $2.66 |
||
|
78995BC
|
78995BC
MR236596 SCREW, ROOF LID |
MR236596 |
US $2.66 |
||
|
78995BD
|
78995BD
MR236597 SCREW, ROOF LID |
MR236597 |
US $2.81 |
||
|
78995BE
|
78995BE
MR236598 SCREW, ROOF LID |
MR236598 |
US $2.66 |
||
|
78995BF
|
78995BF
MR236599 SCREW, ROOF LID |
MR236599 |
US $2.66 |
||
|
78995BG
|
78995BG
MR236600 SCREW, ROOF LID |
MR236600 |
US $2.66 |
||
|
78995BH
|
78995BH
MR236601 SCREW, ROOF LID |
MR236601 |
US $2.66 |
||
|
78995BJ
|
78995BJ
MR264505 SCREW, ROOF LID |
MR264505 |
US $2.66 |
||
|
78996
|
78996
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
78997B
|
78997B
MB195906 GROMMET, ROOF LID30 |
MB195906 |
US $5.77 |
||
|
78997C
|
78997C
MB642445 GROMMET, ROOF LID38 |
MB642445 |
US $4.38 |
||
|
78998B
|
78998B
MS660165 CLIP, ROCKER COVERD=14.8 |
MS660165 |
from US $1.72 |
||
|
78998C
|
78998C
MR901699 CLIP, ROOF LID |
MR901699 |
US $3.26 |
||
|
78999
|
78999
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
78999BB
|
78999BB
MR236594 BOLT, ROOF LID |
MR236594 |
US $2.66 |
||
|
82664
|
82664
MR101943 CONTROL UNIT, SUNROOF |
MR101943 |
US $442.62 |
||
|
83139
|
83139
MR172798 HARNESS, SUNROOF |
MR172798 |
US $59.94 |
