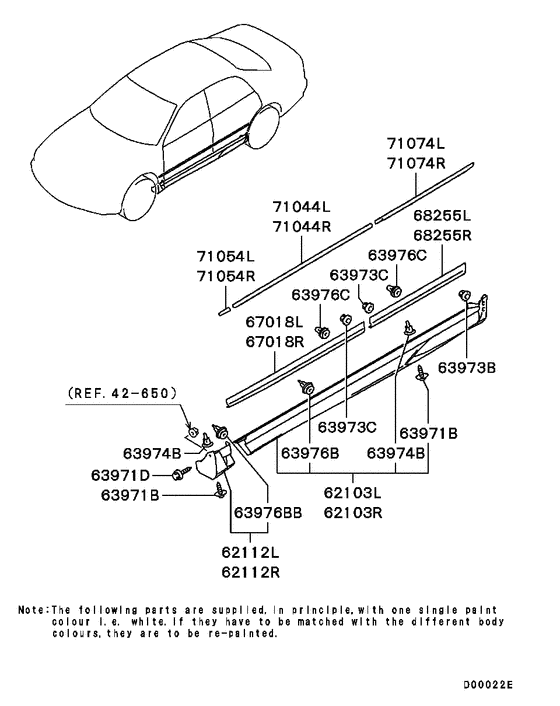

Side garnish & moulding (-0308.3 SIDE GARNISH,ETC.(VR-X)) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62103L
|
62103L
MR926363
AIR DAM,SIDE,LH
|
MR926363 |
— | ||
|
62103R
|
62103R
MR926364
AIR DAM,SIDE,RH
|
MR926364 |
— | ||
|
62112L
|
62112L
AW392669 AIR DAM, SIDE, FR LH |
AW392669 |
US $28.12 |
||
|
62112L
|
62112L
MR926365
AIR DAM,SIDE,FR LH
|
MR926365 |
— | ||
|
62112R
|
62112R
AW392670 AIR DAM, SIDE, FR RH |
AW392670 |
US $28.12 |
||
|
62112R
|
62112R
MR926366
AIR DAM,SIDE,FR RH
|
MR926366 |
— | ||
|
63971B
|
63971B
MS450174 SCREW, 3RD SEATTapping,4x16 |
MS450174 |
from US $2.81 |
||
|
63971B
|
63971B
MS450179 SCREW, RADIATOR GRILLETapping,4x20 |
MS450179 |
US $3.56 |
||
|
63971B
|
63971B
MU240050 SCREW, RADIATOR GRILLETapping,4x16 |
MU240050 |
US $3.83 |
||
|
63971D
|
63971D
MF453094 SCREW, STEERING COLUMN COVERTapping,5x20 |
MF453094 |
from US $1.66 |
||
|
63971D
|
63971D
MS452388 SCREW, SPLASH SHIELDTapping washer assembled,6x25 |
MS452388 |
from US $3.26 |
||
|
63973B
|
63973B
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
63973C
|
63973C
MB645336
NUT, SIDE MOULDING
|
MB645336 |
— | ||
|
63974B
|
63974B
MB361578 GROMMET, SIDE AIR DAM10 |
MB361578 |
from US $2.07 |
||
|
63974B
|
63974B
MR280579 GROMMET, SIDE AIR DAM10 |
MR280579 |
from US $1.89 |
||
|
63976B
|
63976B
MB608104 CLIP, FR DOOR TRIM18x18.5 |
MB608104 |
US $3.42 |
||
|
63976B
|
63976B
MR908666 CLIP, SIDE AIR DAM |
MR908666 |
US $3.55 |
||
|
63976C
|
63976C
MB406999
CLIP, SIDE AIR DAM
|
MB406999 |
— | ||
| replacement | |||||
|
63976C
|
63976C
MB132135 CLIP, SIDE AIR DAM7 |
MB132135 |
from US $1.11 |
||
|
63976C
|
63976C
MR908666 CLIP, SIDE AIR DAM |
MR908666 |
US $3.55 |
||
|
67018L
|
67018L
MR907503 GARNISH, FR DOOR, LH |
MR907503 |
US $155.95 |
||
|
67018L
|
67018L
MR926419
GARNISH,FR DOOR,LH
|
MR926419 |
— | ||
|
67018R
|
67018R
MR907504 GARNISH, FR DOOR, RH |
MR907504 |
US $155.95 |
||
|
67018R
|
67018R
MR926420
GARNISH,FR DOOR,RH
|
MR926420 |
— | ||
|
68255L
|
68255L
MR907505 GARNISH, RR DOOR, LH |
MR907505 |
US $109.44 |
||
|
68255L
|
68255L
MR926423
GARNISH,RR DOOR,LH
|
MR926423 |
— | ||
|
68255R
|
68255R
MR907506 GARNISH, RR DOOR, RH |
MR907506 |
US $109.44 |
||
|
68255R
|
68255R
MR926424
GARNISH,RR DOOR,RH
|
MR926424 |
— | ||
|
71044L
|
71044L
AW392659 MOULDING, FR DOOR PROTECT, LH |
AW392659 |
US $94.72 |
||
|
71044R
|
71044R
AW392660 MOULDING, FR DOOR PROTECT, RH |
AW392660 |
US $94.72 |
||
|
71054L
|
71054L
AW392657 MOULDING, FR FENDER PROTECT, LH |
AW392657 |
US $19.98 |
||
|
71054R
|
71054R
AW392658 MOULDING, FR FENDER PROTECT, RH |
AW392658 |
US $19.98 |
||
|
71074L
|
71074L
AW392661 MOULDING, RR DOOR PROTECT, LH |
AW392661 |
US $67.34 |
||
|
71074R
|
71074R
AW392662 MOULDING, RR DOOR PROTECT, RH |
AW392662 |
US $67.34 |
||
