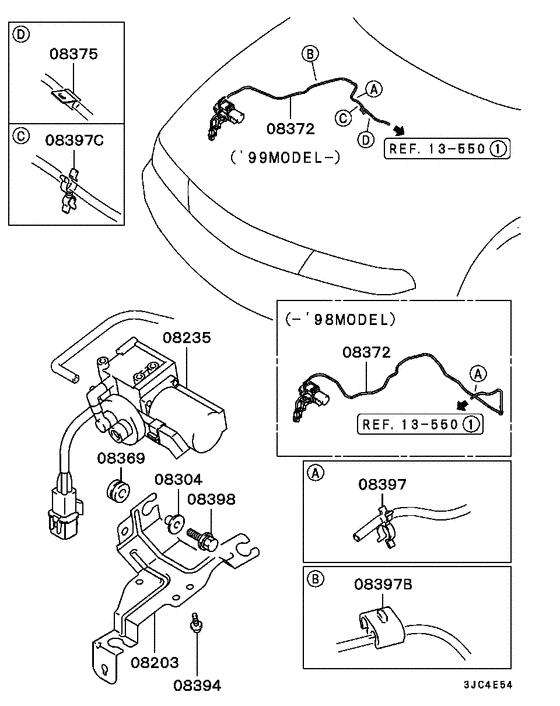

Speed control Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
08203
|
08203
MR285525 BRACKET, CRUISE CONTROL VACUUM PUMP |
MR285525 |
US $10.21 |
||
|
08235
|
08235
MR207535 VACUUM PUMP, CRUISE CONTROL |
MR207535 |
US $235.32 |
||
|
08304
|
08304
MB539492 SPACER, CRUISE CONTROL EQUIP6x9.5 |
MB539492 |
US $2.07 |
||
|
08369
|
08369
MB322032 CUSHION, CRUISE CONTROL EQUIP |
MB322032 |
US $8.73 |
||
|
08372
|
08372
MN162840
HOSE,CRUISE CONTROL EQUIP
|
MN162840 |
— | ||
|
08372
|
08372
MR252004
HOSE,CRUISE CONTROL EQUIP
|
MR252004 |
— | ||
|
08372
|
08372
MR461946
HOSE,CRUISE CONTROL EQUIP
|
MR461946 |
— | ||
|
08375
|
08375
MU470035
CLAMP, A/C PIPING
|
MU470035 |
— | ||
|
08394
|
08394
MB259950 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB259950 |
US $2.66 |
||
|
08397
|
08397
MS470393 CLIP, FUEL RETURN LINE6-16.5 |
MS470393 |
US $4.14 |
||
|
08397
|
08397
MS470398 CLIP, ACCEL CONTROL EQUIP13-6 |
MS470398 |
US $2.37 |
||
|
08397B
|
08397B
MB129999 CLIP, FUEL RETURN LINED=4.6,d=6.2 |
MB129999 |
US $3.97 |
||
|
08397C
|
08397C
MS470521 CLIP,CRUISE CONTROL ELECTRICALS |
MS470521 |
US $2.81 |
||
|
08398
|
08398
MS240204 BOLT, RR VIEW MIRRORWasher assembled,6x25 |
MS240204 |
from US $0.98 |
||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
