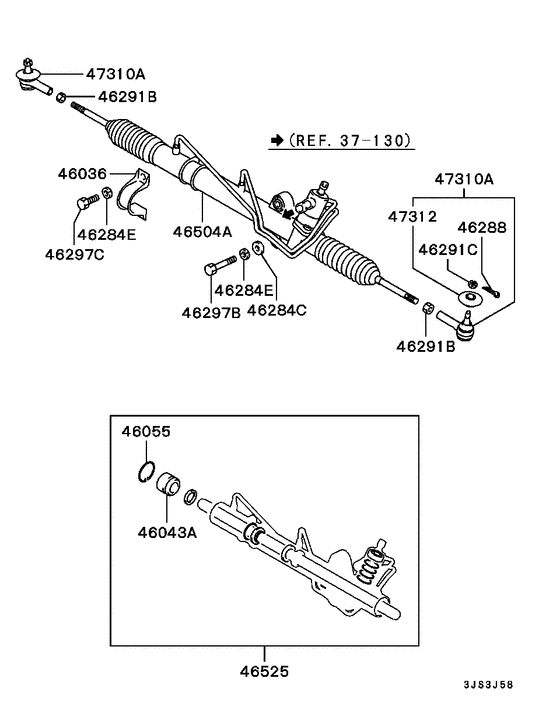

Steering gear (INSTALLING PARTS) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 1998
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS PACKAGE-2,4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS PACKAGE-2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46036
|
46036
MR197353 BRACKET, STEERING GEAR MOUNTING ROD SIDE |
MR197353 |
US $7.84 |
||
|
46043A
|
46043A
AW350121 BUSHING ASSY, STEERING GEAR |
AW350121 |
US $4.59 |
||
|
46043A
|
46043A
AW351937 BUSHING ASSY, STEERING GEAR |
AW351937 |
US $3.11 |
||
|
46055
|
46055
AW350122 CLIP, STEERING GEAR PISTON |
AW350122 |
US $4.14 |
||
|
46284C
|
46284C
MF450156 WASHER, CATALYTIC CONVERTERPlain,12 |
MF450156 |
US $3.83 |
||
|
46284E
|
46284E
MF450407 WASHERSpring,12 |
MF450407 |
from US $0.84 |
||
|
46288
|
46288
MF472054 PIN, ENG OIL PUMP INRSplit,2.5x25 |
MF472054 |
US $1.37 |
||
|
46291B
|
46291B
MF430008 NUTNUT, 14, 4T |
MF430008 |
from US $1.03 |
||
|
46291C
|
46291C
MB122128 NUT, FR SUSP LWR ARMSlotted,6t,10 |
MB122128 |
US $3.56 |
||
|
46297B
|
46297B
MU100015 BOLT, FR SHOCK ABSORBER12x60 |
MU100015 |
US $6.16 |
||
|
46297C
|
46297C
MF101310 BOLT, ENG RR MOUNTING12x25 |
MF101310 |
from US $1.33 |
||
|
46504A
|
46504A
MR197886
GEAR & LINK ASSY,P/S
|
MR197886 |
— | ||
|
46525
|
46525
MR921301 SEAL KIT, P/S GEAR |
MR921301 |
US $82.88 |
||
|
47310A
|
47310A
MB910859 END ASSY, TIE ROD |
MB910859 |
US $48.84 |
||
|
47312
|
47312
MB616023
COVER, TIE ROD END
|
MB616023 |
— | ||
| replacement | |||||
|
47312
|
47312
4422A137 TIE ROD END BOOT |
4422A137 |
US $19.20 |
||
|
37 130
|
Power steering oil line
37 130
|
||||
|
37 130
|
Power steering oil line
37 130
|
||||
