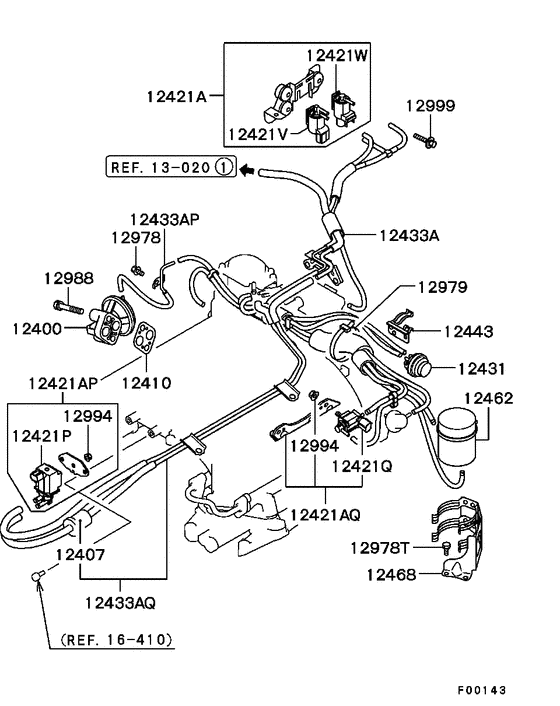

Emission control (0005.1- WITH TCL) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD199283 VALVE, EGR |
MD199283 |
US $298.79 |
||
|
12407
|
12407
MR312385 CHAMBER, EMISSION VACUUM CONTROL |
MR312385 |
from US $16.83 |
||
|
12407
|
12407
MR312679 CHAMBER, EMISSION VACUUM CONTROL |
MR312679 |
US $21.89 |
||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.42 |
||
|
12421A
|
12421A
MR450086 VALVE ASSY,EMISSION SOLENOID |
MR450086 |
US $184.68 |
||
|
12421AP
|
12421AP
MR239114
VALVE ASSY,EMISSION SOLENOID
|
MR239114 |
— | ||
|
12421AP
|
12421AP
MR239173
VALVE ASSY,EMISSION SOLENOID
|
MR239173 |
— | ||
|
12421AP
|
12421AP
MR464098
VALVE ASSY,EMISSION SOLENOID
|
MR464098 |
— | ||
|
12421AQ
|
12421AQ
MR187563
VALVE ASSY,EMISSION SOLENOID
|
MR187563 |
— | ||
|
12421P
|
12421P
MR188756 VALVE, EMISSION SOLENOID |
MR188756 |
from US $68.68 |
||
|
12421P
|
12421P
MR239173
VALVE ASSY,EMISSION SOLENOID
|
MR239173 |
— | ||
|
12421P
|
12421P
MR323894
VALVE,EMISSION SOLENOID
|
MR323894 |
— | ||
|
12421Q
|
12421Q
MR127520 VALVE, EMISSION SOLENOID |
MR127520 |
from US $55.22 |
||
|
12421V
|
12421V
MD165142 VALVE, EMISSION SOLENOID |
MD165142 |
US $95.76 |
||
|
12421W
|
12421W
MR266313
VALVE, EMISSION SOLENOID
|
MR266313 |
— | ||
|
12431
|
12431
MR126976 VALVE, EMISSION VACUUM CONTROL |
MR126976 |
US $75.48 |
||
|
12433A
|
12433A
MR239164
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR239164 |
— | ||
|
12433A
|
12433A
MR239167
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR239167 |
— | ||
|
12433A
|
12433A
MR464095
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR464095 |
— | ||
|
12433A
|
12433A
MR464099
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR464099 |
— | ||
|
12433AP
|
12433AP
MR204881 HOSE & PIPE ASSY, EMISSION CONTROL |
MR204881 |
US $22.94 |
||
|
12433AP
|
12433AP
MR988182
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR988182 |
— | ||
|
12433AQ
|
12433AQ
MR239171
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR239171 |
— | ||
|
12433AQ
|
12433AQ
MR404067
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR404067 |
— | ||
|
12433AQ
|
12433AQ
MR464096
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR464096 |
— | ||
|
12433AQ
|
12433AQ
MR464199
HOSE & PIPE ASSY,EMISSION CONTROL
|
MR464199 |
— | ||
|
12443
|
12443
MR239166
BRACKET,VACUUM CONTROL VALVE
|
MR239166 |
— | ||
|
12462
|
12462
MD163790 VACUUM TANK, EMISSION CONTROL |
MD163790 |
US $44.40 |
||
|
12468
|
12468
MR187882 BRACKET, VACUUM TANK EMISSION CONTROL |
MR187882 |
US $24.42 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12978
|
12978
MF140722 BOLT, ACCEL CABLE SUPPORTFlange,6x10 |
MF140722 |
US $3.28 |
||
|
12978T
|
12978T
MF245423 BOLT, ACCEL CABLE SUPPORTWasher assembled,6x14 |
MF245423 |
US $2.46 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.50 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12994
|
12994
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
12999
|
12999
MF247550 BOLT, FUEL LINEWasher assembled,6x30 |
MF247550 |
from US $0.90 |
||
|
