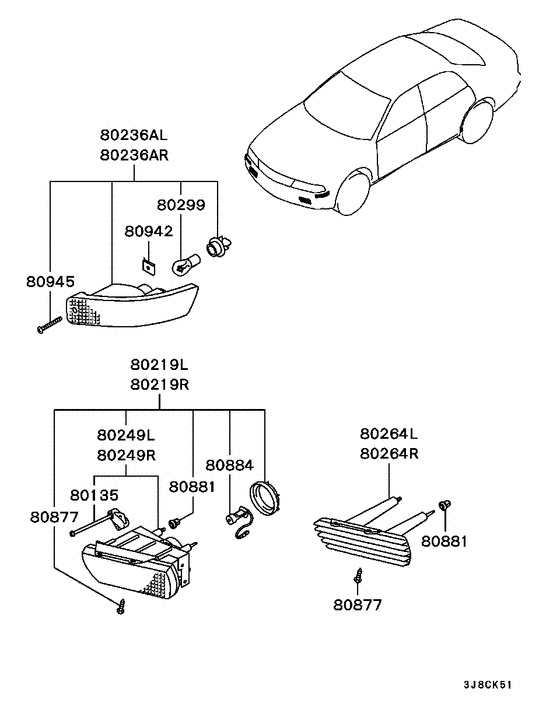

Front exterior lamp (-0308.3) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80135
|
80135
MR361078
GEARBOX, FOG LAMP LEVELING
|
MR361078 |
— | ||
|
80219L
|
80219L
MR296083
LAMP KIT,FOG,FR LH
|
MR296083 |
— | ||
|
80219R
|
80219R
MR296084
LAMP KIT,FOG,FR RH
|
MR296084 |
— | ||
|
80236AL
|
80236AL
AW342999
LAMP KIT,TURN SIGNAL,FR LH
|
AW342999 |
— | ||
|
80236AR
|
80236AR
AW343000
LAMP KIT,TURN SIGNAL,FR RH
|
AW343000 |
— | ||
|
80249L
|
80249L
MR245857
LAMP UNIT,FOG,FR LH
|
MR245857 |
— | ||
|
80249R
|
80249R
MR245858
LAMP UNIT,FOG,FR RH
|
MR245858 |
— | ||
|
80264L
|
80264L
AW343735
COVER,FR FOG LAMP,LH
|
AW343735 |
— | ||
|
80264R
|
80264R
AW343736
COVER,FR FOG LAMP,RH
|
AW343736 |
— | ||
|
80299
|
80299
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80877
|
80877
MB152869 SCREW, RR MUD GUARDTapping,5x12 |
MB152869 |
US $2.37 |
||
|
80877
|
80877
MS350146 SCREW, FOG LAMPWasher assembled,5x16 |
MS350146 |
US $3.83 |
||
|
80881
|
80881
MU810520 GROMMET, HEADLAMP |
MU810520 |
US $7.11 |
||
|
80884
|
80884
MS820960 BULB, HEADLAMP12v-51w(hb4) |
MS820960 |
from US $21.89 |
||
|
80884
|
80884
MS820964 BULB, HEADLAMP12v-55w,h3 |
MS820964 |
from US $38.20 |
||
|
80942
|
80942
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80945
|
80945
MS450946
SCREW, BACKUP LAMP
|
MS450946 |
— |
