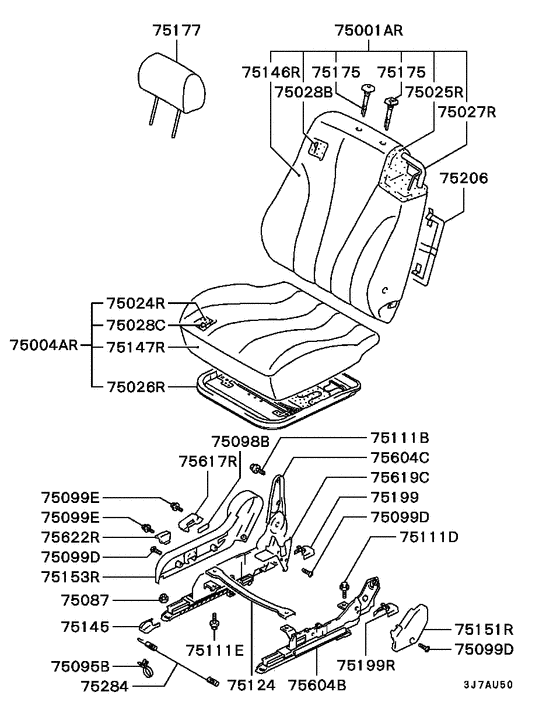

Front seat (RH..EXC POWER) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AR
|
75001AR
AW392613
BACK ASSY,FR SEAT,RH
|
AW392613 |
— | ||
|
75001AR
|
75001AR
AW392615 BACK ASSY, FR SEAT, RH |
AW392615 |
US $2,116.80 |
||
|
75001AR
|
75001AR
MR923588
BACK ASSY,FR SEAT,RH
|
MR923588 |
— | ||
|
75001AR
|
75001AR
MR923590
BACK ASSY,FR SEAT,RH
|
MR923590 |
— | ||
|
75001AR
|
75001AR
MR929352
BACK ASSY,FR SEAT,RH
|
MR929352 |
— | ||
|
75001AR
|
75001AR
MR929354
BACK ASSY,FR SEAT,RH
|
MR929354 |
— | ||
|
75001AR
|
75001AR
MR932712
BACK ASSY,FR SEAT,RH
|
MR932712 |
— | ||
|
75001AR
|
75001AR
MR932714
BACK ASSY,FR SEAT,RH
|
MR932714 |
— | ||
|
75004AR
|
75004AR
AW392576
CUSHION ASSY,FR SEAT,RH
|
AW392576 |
— | ||
|
75004AR
|
75004AR
AW392578 CUSHION ASSY, FR SEAT, RH |
AW392578 |
US $2,116.80 |
||
|
75004AR
|
75004AR
AW392584
CUSHION ASSY,FR SEAT,RH
|
AW392584 |
— | ||
|
75004AR
|
75004AR
AW392586
CUSHION ASSY,FR SEAT,RH
|
AW392586 |
— | ||
|
75004AR
|
75004AR
MR923606
CUSHION ASSY,FR SEAT,RH
|
MR923606 |
— | ||
|
75004AR
|
75004AR
MR923608
CUSHION ASSY,FR SEAT,RH
|
MR923608 |
— | ||
|
75004AR
|
75004AR
MR929614
CUSHION ASSY,FR SEAT,RH
|
MR929614 |
— | ||
|
75004AR
|
75004AR
MR929686
CUSHION ASSY,FR SEAT,RH
|
MR929686 |
— | ||
|
75004AR
|
75004AR
MR932726
CUSHION ASSY,FR SEAT,RH
|
MR932726 |
— | ||
|
75004AR
|
75004AR
MR932728
CUSHION ASSY,FR SEAT,RH
|
MR932728 |
— | ||
|
75024R
|
75024R
AW339992 PAD, FR SEAT CUSHION, RH |
AW339992 |
US $331.97 |
||
|
75024R
|
75024R
AW345262
PAD,FR SEAT CUSHION,RH
|
AW345262 |
— | ||
|
75024R
|
75024R
MR901188
PAD,FR SEAT CUSHION,RH
|
MR901188 |
— | ||
|
75025R
|
75025R
AW339496 PAD, FR SEAT BACK, RH |
AW339496 |
US $331.97 |
||
|
75025R
|
75025R
MR901186
PAD,FR SEAT BACK,RH
|
MR901186 |
— | ||
|
75026R
|
75026R
AW324834 FRAME, FR SEAT CUSHION, RH |
AW324834 |
US $236.80 |
||
|
75026R
|
75026R
AW339486 FRAME, FR SEAT CUSHION |
AW339486 |
US $236.80 |
||
|
75026R
|
75026R
MR932012
FRAME,FR SEAT CUSHION,RH
|
MR932012 |
— | ||
|
75027R
|
75027R
MR920408
FRAME,FR SEAT BACK,RH
|
MR920408 |
— | ||
|
75027R
|
75027R
MR920410 FRAME, FR SEAT BACK, RH |
MR920410 |
US $236.80 |
||
|
75027R
|
75027R
MR932006
FRAME,FR SEAT BACK,RH
|
MR932006 |
— | ||
|
75028B
|
75028B
AW338378 WIRE, FR SEAT TRIMMING2x362 |
AW338378 |
US $2.07 |
||
|
75028B
|
75028B
AW340544 WIRE, RR SEAT TRIMMING2x440 |
AW340544 |
US $2.52 |
||
|
75028B
|
75028B
MR902250 WIRE, RR SEAT TRIMMING310 |
MR902250 |
US $2.07 |
||
|
75028C
|
75028C
AW338378 WIRE, FR SEAT TRIMMING2x362 |
AW338378 |
US $2.07 |
||
|
75028C
|
75028C
AW339497 WIRE, RR SEAT TRIMMING2x340 |
AW339497 |
US $2.52 |
||
|
75028C
|
75028C
AW348900 WIRE, FR SEAT TRIMMING |
AW348900 |
US $2.52 |
||
|
75028C
|
75028C
MR902250 WIRE, RR SEAT TRIMMING310 |
MR902250 |
US $2.07 |
||
|
75087
|
75087
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
75095B
|
75095B
MU481133 BAND, WIRING100.5 |
MU481133 |
US $2.96 |
||
|
75098B
|
75098B
MR741329 CAP, FR SEAT |
MR741329 |
US $3.55 |
||
|
75098B
|
75098B
MR741330 CAP, FR SEAT |
MR741330 |
US $3.55 |
||
|
75099D
|
75099D
MF455510 SCREW, GLOVEBOXTapping,5x10 |
MF455510 |
from US $1.79 |
||
|
75099E
|
75099E
MF350983 SCREW, FR SEATWasher assembled,4x8 |
MF350983 |
US $1.33 |
||
|
75111B
|
75111B
MF241278 BOLT, ENG MOUNTINGWasher assembled,10x16 |
MF241278 |
from US $0.90 |
||
|
75111D
|
75111D
MU240135 BOLT, FR SEATWasher assembled,10x30 |
MU240135 |
US $2.52 |
||
|
75111E
|
75111E
MB190985 BOLT, FR SEAT8x20 |
MB190985 |
US $2.81 |
||
|
75124
|
75124
MB874054 BRACKET, FR SEAT SUPPORT |
MB874054 |
US $6.07 |
||
|
75145
|
75145
MB726461
COVER, FR SEAT ANCHOR
|
MB726461 |
— | ||
|
75146R
|
75146R
AW392190
COVER,FR SEAT BACK,RH
|
AW392190 |
— | ||
|
75146R
|
75146R
AW392192
COVER,FR SEAT BACK,RH
|
AW392192 |
— | ||
|
75146R
|
75146R
MR908830
COVER,FR SEAT BACK,RH
|
MR908830 |
— | ||
|
75146R
|
75146R
MR908832
COVER,FR SEAT BACK,RH
|
MR908832 |
— | ||
|
75146R
|
75146R
MR920156
COVER,FR SEAT BACK,RH
|
MR920156 |
— | ||
|
75146R
|
75146R
MR923300
COVER,FR SEAT BACK,RH
|
MR923300 |
— | ||
|
75146R
|
75146R
MR923506 COVER, FR SEAT BACK, RH |
MR923506 |
US $1,057.06 |
||
|
75146R
|
75146R
MR923532
COVER,FR SEAT BACK,RH
|
MR923532 |
— | ||
|
75146R
|
75146R
MR931718
COVER,FR SEAT BACK,RH
|
MR931718 |
— | ||
|
75146R
|
75146R
MR931720
COVER,FR SEAT BACK,RH
|
MR931720 |
— | ||
|
75147R
|
75147R
AW392182
COVER,FR SEAT CUSHION,RH
|
AW392182 |
— | ||
|
75147R
|
75147R
AW392184
COVER,FR SEAT CUSHION,RH
|
AW392184 |
— | ||
|
75147R
|
75147R
MR920182
COVER,FR SEAT CUSHION,RH
|
MR920182 |
— | ||
|
75147R
|
75147R
MR920184 COVER, FR SEAT CUSHION, RH |
MR920184 |
US $1,448.72 |
||
|
75147R
|
75147R
MR923296
COVER,FR SEAT CUSHION,RH
|
MR923296 |
— | ||
|
75147R
|
75147R
MR923298
COVER,FR SEAT CUSHION,RH
|
MR923298 |
— | ||
|
75147R
|
75147R
MR931944
COVER,FR SEAT CUSHION,RH
|
MR931944 |
— | ||
|
75147R
|
75147R
MR931946
COVER,FR SEAT CUSHION,RH
|
MR931946 |
— | ||
|
75151R
|
75151R
MR648636
COVER,FR SEAT RECLINING ADJUSTER,RH
|
MR648636 |
— | ||
|
75151R
|
75151R
MR708797 COVER, FR SEAT HINGE, RH |
MR708797 |
US $16.28 |
||
|
75151R
|
75151R
MR741314 COVER, FR SEAT HINGE, RH |
MR741314 |
US $12.88 |
||
|
75151R
|
75151R
MR741387 COVER, FR SEAT RECLINING ADJUSTER, RH |
MR741387 |
US $42.18 |
||
|
75151R
|
75151R
MR741388 COVER, FR SEAT RECLINING ADJUSTER, RH |
MR741388 |
US $42.18 |
||
|
75153R
|
75153R
MR306223
SHIELD,FR SEAT CUSHION,RH
|
MR306223 |
— | ||
|
75153R
|
75153R
MR306224
SHIELD,FR SEAT CUSHION,RH
|
MR306224 |
— | ||
|
75153R
|
75153R
MR648632
COVER,FR SEAT SIDE SHIELD,RH
|
MR648632 |
— | ||
|
75153R
|
75153R
MR741383 COVER, FR SEAT SIDE SHIELD, RH |
MR741383 |
US $62.90 |
||
|
75153R
|
75153R
MR741384 COVER, FR SEAT SIDE SHIELD, RH |
MR741384 |
US $62.90 |
||
|
75175
|
75175
AW391181 GUIDE, FR SEAT HEADRESTW/o lock |
AW391181 |
US $10.36 |
||
|
75175
|
75175
AW391182 GUIDE, FR SEAT HEADRESTW/o lock |
AW391182 |
US $10.36 |
||
|
75175
|
75175
AW391183 GUIDE, FR SEAT HEADRESTW/lock |
AW391183 |
US $10.80 |
||
|
75175
|
75175
AW391184 GUIDE, FR SEAT HEADRESTW/lock |
AW391184 |
US $10.80 |
||
|
75175
|
75175
AW395040
GUIDE,RR SEAT HEADREST
|
AW395040 |
— | ||
|
75175
|
75175
AW395042
GUIDE,RR SEAT HEADREST
|
AW395042 |
— | ||
|
75177
|
75177
AW391400
HEADREST,FR SEAT
|
AW391400 |
— | ||
|
75177
|
75177
AW392215 HEADREST, FR SEAT |
AW392215 |
US $253.08 |
||
|
75177
|
75177
MR908702
HEADREST,FR SEAT
|
MR908702 |
— | ||
|
75177
|
75177
MR908999
HEADREST,FR SEAT
|
MR908999 |
— | ||
|
75177
|
75177
MR923622
HEADREST,FR SEAT
|
MR923622 |
— | ||
|
75177
|
75177
MR923623
HEADREST,FR SEAT
|
MR923623 |
— | ||
|
75177
|
75177
MR929362
HEADREST,FR SEAT
|
MR929362 |
— | ||
|
75177
|
75177
MR929364
HEADREST,FR SEAT
|
MR929364 |
— | ||
|
75177
|
75177
MR931343
HEADREST,FR SEAT
|
MR931343 |
— | ||
|
75177
|
75177
MR931344
HEADREST,FR SEAT
|
MR931344 |
— | ||
|
75199
|
75199
MB726462
COVER, FR SEAT ANCHOR, RR
|
MB726462 |
— | ||
|
75199R
|
75199R
MR738916 COVER, FR SEAT ANCHOR, RR RH |
MR738916 |
US $3.85 |
||
|
75206
|
75206
MR920185
PANEL,FR SEAT BACK
|
MR920185 |
— | ||
|
75206
|
75206
MR920186 PANEL, FR SEAT BACK |
MR920186 |
US $233.84 |
||
|
75206
|
75206
MR921937
PANEL,FR SEAT BACK
|
MR921937 |
— | ||
|
75206
|
75206
MR921939
PANEL,FR SEAT BACK
|
MR921939 |
— | ||
|
75206
|
75206
MR923411
PANEL,FR SEAT BACK
|
MR923411 |
— | ||
|
75206
|
75206
MR923413
PANEL,FR SEAT BACK
|
MR923413 |
— | ||
|
75206
|
75206
MR929369
PANEL,FR SEAT BACK
|
MR929369 |
— | ||
|
75206
|
75206
MR929370
PANEL,FR SEAT BACK
|
MR929370 |
— | ||
|
75206
|
75206
MR931527
PANEL,FR SEAT BACK
|
MR931527 |
— | ||
|
75206
|
75206
MR931528
PANEL,FR SEAT BACK
|
MR931528 |
— | ||
|
75284
|
75284
MR921519
WIRE, FR SEAT
|
MR921519 |
— | ||
|
75604B
|
75604B
MR202136
ADJUSTER,FR SEAT SLIDE
|
MR202136 |
— | ||
|
75604C
|
75604C
MR202137
ADJUSTER,FR SEAT SLIDE
|
MR202137 |
— | ||
|
75617R
|
75617R
MR741339 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR741339 |
US $11.40 |
||
|
75617R
|
75617R
MR741340 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR741340 |
US $11.40 |
||
|
75619C
|
75619C
MR648584
COVER,FR SEAT RECLINING ADJUSTER,LWR
|
MR648584 |
— | ||
|
75619C
|
75619C
MR708801 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR708801 |
US $11.25 |
||
|
75619C
|
75619C
MR708803 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR708803 |
US $9.32 |
||
|
75619C
|
75619C
MR741316 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR741316 |
US $12.28 |
||
|
75619C
|
75619C
MR741317 COVER, FR SEAT RECLINING ADJUSTER, LWR |
MR741317 |
US $10.21 |
||
|
75622R
|
75622R
MR741343 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR741343 |
US $10.21 |
||
|
75622R
|
75622R
MR741344 KNOB, FR SEAT SLIDE ADJUSTER, RH |
MR741344 |
US $10.21 |
