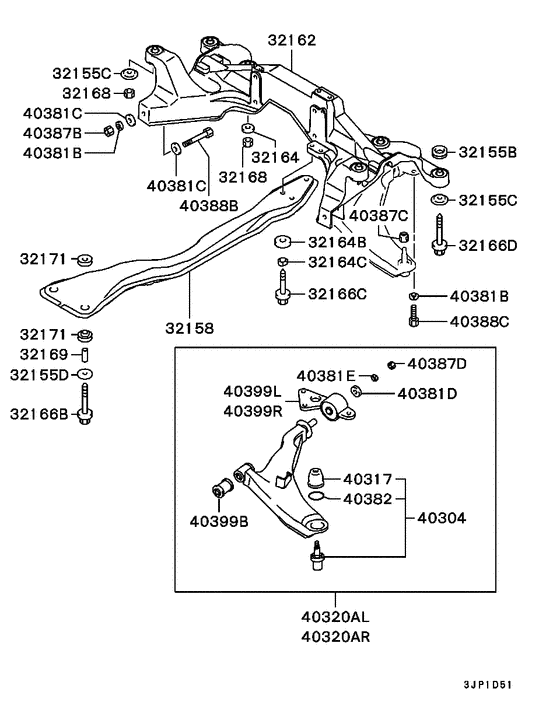

Front susp arm & member Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32155B
|
32155B
MB573306 STOPPER, FR AXLE CROSSMEMBER |
MB573306 |
US $6.84 |
||
|
32155C
|
32155C
MB948453 STOPPER, FR AXLE CROSSMEMBER |
MB948453 |
US $7.11 |
||
|
32155D
|
32155D
MB303652 STOPPER, FR AXLE CROSSMEMBER |
MB303652 |
US $6.16 |
||
|
32158
|
32158
AW342487
MEMBER,FR AXLE,CTR
|
AW342487 |
— | ||
|
32162
|
32162
MR129217 CROSSMEMBER, FR AXLE, NO.1 |
MR129217 |
US $774.59 |
||
|
32164
|
32164
MF450007 WASHER, CYLINDER HEADPlain,12 |
MF450007 |
from US $0.90 |
||
|
32164B
|
32164B
MF450006 WASHER, CYLINDER HEADPlain,10 |
MF450006 |
from US $1.01 |
||
|
32164C
|
32164C
MS450043 WASHER, ENG RR MOUNTINGSpring,10 |
MS450043 |
from US $1.76 |
||
|
32166B
|
32166B
MR223660
BOLT, FR AXLE CROSSMEMBER
|
MR223660 |
— | ||
| replacement | |||||
|
32166B
|
32166B
MU140044 BOLT, FR DIFF MOUNTINGFlange,12x90 |
MU140044 |
US $6.98 |
||
|
32166C
|
32166C
MF101295 BOLT, EXHAUST PIPE10x60 |
MF101295 |
US $3.26 |
||
|
32166D
|
32166D
MB176060 BOLT, FR AXLE CROSSMEMBERFlange,12x103 |
MB176060 |
US $8.14 |
||
|
32168
|
32168
MB242260 NUT, FR AXLE CROSSMEMBERSelf locking,12 |
MB242260 |
from US $3.56 |
||
|
32169
|
32169
MB303651 COLLAR, FR AXLE CROSSMEMBER |
MB303651 |
from US $6.90 |
||
|
32171
|
32171
MB303650 BUSHING, FR AXLE CROSSMEMBER |
MB303650 |
from US $4.43 |
||
|
40304
|
40304
AW345993
BALL JOINT, FR SUSP LWR ARM
|
AW345993 |
— | ||
|
40317
|
40317
MB573938 COVER, FR SUSP LWR ARM BALL JOINT |
MB573938 |
US $12.86 |
||
|
40320AL
|
40320AL
AW343143
ARM ASSY, FR SUSP, LWR LH
|
AW343143 |
— | ||
|
40320AR
|
40320AR
AW343144
ARM ASSY, FR SUSP, LWR RH
|
AW343144 |
— | ||
|
40381B
|
40381B
MS450044 WASHER, ENG RR MOUNTINGSpring,12 |
MS450044 |
from US $1.64 |
||
|
40381C
|
40381C
MB910822 WASHER, ENG MOUNTINGPlain,12 |
MB910822 |
US $2.81 |
||
|
40381D
|
40381D
MB808231
WASHER, FR SUSP LWR ARM
|
MB808231 |
— | ||
|
40381E
|
40381E
MF450408 WASHERSpring,14 |
MF450408 |
from US $1.21 |
||
|
40382
|
40382
MB573939 SNAP RING, FR SUSP LWR ARM |
MB573939 |
US $7.80 |
||
|
40387B
|
40387B
MU430003 NUT, ENG MOUNTING12 |
MU430003 |
from US $1.19 |
||
|
40387C
|
40387C
MS440003 NUT, FR SUSP STRUTSelf locking,12 |
MS440003 |
US $6.16 |
||
|
40387D
|
40387D
MF430124 NUT6T, 14 |
MF430124 |
from US $1.29 |
||
|
40388B
|
40388B
MB109178
BOLT, FR SUSP LWR ARM
|
MB109178 |
— | ||
|
40388C
|
40388C
MF101310 BOLT, ENG RR MOUNTING12x25 |
MF101310 |
from US $1.33 |
||
|
40399B
|
40399B
MR223864 BUSHING, FR SUSP LWR ARM |
MR223864 |
US $25.99 |
||
|
40399L
|
40399L
AW343831
BUSHING, FR SUSP LWR ARM, LH
|
AW343831 |
— | ||
|
40399R
|
40399R
AW343832 BUSHING, FR SUSP LWR ARM, RH |
AW343832 |
US $95.08 |
||
