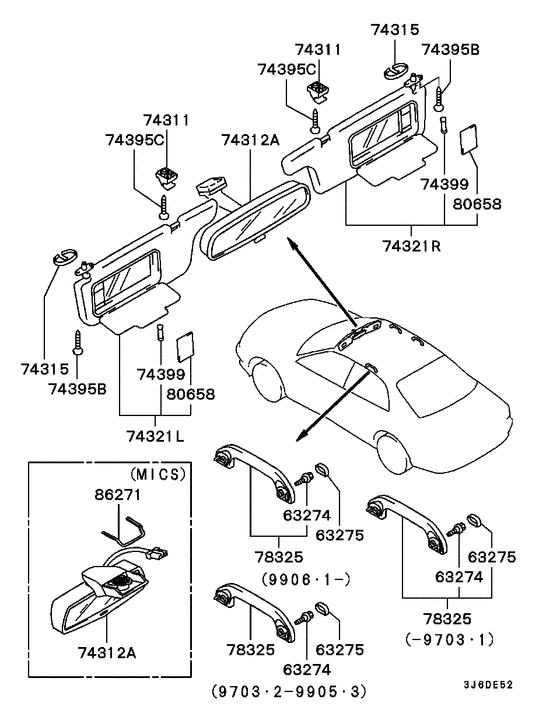

Mirror,grips & sunvisor (-0208.3) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- P.RICO&GUAM/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63274
|
63274
MR262755 SCREW, ASSIST GRIP |
MR262755 |
US $2.22 |
||
|
63274
|
63274
MR907575
SCREW,ASSIST GRIP
|
MR907575 |
— | ||
|
63274
|
63274
MS200313 SCREW, STEERING COLUMNMachine,6x20 |
MS200313 |
US $2.22 |
||
|
63275
|
63275
MR240454
PLUG, ASSIST GRIP
|
MR240454 |
— | ||
|
63275
|
63275
MR240455 PLUG, ASSIST GRIP |
MR240455 |
US $3.26 |
||
|
63275
|
63275
MR330952 PLUG, ASSIST GRIP |
MR330952 |
US $5.20 |
||
|
63275
|
63275
MR330953 PLUG, ASSIST GRIP |
MR330953 |
US $3.40 |
||
|
63275
|
63275
MR908886
PLUG,ASSIST GRIP
|
MR908886 |
— | ||
|
63275
|
63275
MR908887
PLUG,ASSIST GRIP
|
MR908887 |
— | ||
|
74311
|
74311
MR216998 HOLDER, SUNVISOR |
MR216998 |
US $5.88 |
||
|
74311
|
74311
MR216999 HOLDER, SUNVISOR |
MR216999 |
US $5.88 |
||
|
74312A
|
74312A
MR908667
MIRROR ASSY,ROOM
|
MR908667 |
— | ||
|
74312A
|
74312A
MR921278 MIRROR ASSY, ROOM |
MR921278 |
US $92.50 |
||
|
74315
|
74315
MR739063 COVER, SUNVISOR BRACKET |
MR739063 |
US $6.22 |
||
|
74315
|
74315
MR739064 COVER, SUNVISOR BRACKET |
MR739064 |
US $6.22 |
||
|
74321L
|
74321L
MN134539HA
SUNVISOR,LH
|
MN134539HA |
— | ||
|
74321L
|
74321L
MN134539YA
SUNVISOR,LH
|
MN134539YA |
— | ||
|
74321L
|
74321L
MR366866
SUNVISOR,LH
|
MR366866 |
— | ||
|
74321L
|
74321L
MR366867
SUNVISOR,LH
|
MR366867 |
— | ||
|
74321L
|
74321L
MR750240
SUNVISOR,LH
|
MR750240 |
— | ||
|
74321L
|
74321L
MR750241
SUNVISOR,LH
|
MR750241 |
— | ||
|
74321L
|
74321L
MR793676
SUNVISOR,LH
|
MR793676 |
— | ||
|
74321L
|
74321L
MR793677
SUNVISOR,LH
|
MR793677 |
— | ||
|
74321R
|
74321R
MN134540HA
SUNVISOR,RH
|
MN134540HA |
— | ||
|
74321R
|
74321R
MN134540YA
SUNVISOR,RH
|
MN134540YA |
— | ||
|
74321R
|
74321R
MR366868
SUNVISOR,RH
|
MR366868 |
— | ||
|
74321R
|
74321R
MR366869
SUNVISOR,RH
|
MR366869 |
— | ||
|
74321R
|
74321R
MR417736
SUNVISOR,RH
|
MR417736 |
— | ||
|
74321R
|
74321R
MR417737
SUNVISOR,RH
|
MR417737 |
— | ||
|
74321R
|
74321R
MR750242
SUNVISOR,RH
|
MR750242 |
— | ||
|
74321R
|
74321R
MR750243
SUNVISOR,RH
|
MR750243 |
— | ||
|
74321R
|
74321R
MR975790
SUNVISOR,RH
|
MR975790 |
— | ||
|
74321R
|
74321R
MR975791
SUNVISOR,RH
|
MR975791 |
— | ||
|
74395B
|
74395B
AW350769 SCREW, SUNVISOR6x20 |
AW350769 |
US $2.22 |
||
|
74395B
|
74395B
MF205658 SCREW, ROOF LIDMachine cone point,5x25 |
MF205658 |
US $3.97 |
||
|
74395B
|
74395B
MF206106 SCREW, ROOM MIRRORMachine cone point,5x20 |
MF206106 |
US $1.92 |
||
|
74395C
|
74395C
MS100012 BOLT, GUARD BARCross recessed head,6x16 |
MS100012 |
US $0.44 |
||
|
74395C
|
74395C
MS200130 SCREW, QTR WINDOWMachine tapping,6x16 |
MS200130 |
US $3.69 |
||
|
74399
|
74399
MN166598 BULB, SUNVISOR2wx12v |
MN166598 |
US $4.59 |
||
|
78325
|
78325
MR250913
GRIP,ROOF INSIDE ASSIST
|
MR250913 |
— | ||
|
78325
|
78325
MR250914
GRIP,ROOF INSIDE ASSIST
|
MR250914 |
— | ||
|
78325
|
78325
MR250915
GRIP,ROOF INSIDE ASSIST
|
MR250915 |
— | ||
|
78325
|
78325
MR250916
GRIP,ROOF INSIDE ASSIST
|
MR250916 |
— | ||
|
78325
|
78325
MR330017 GRIP, ROOF INSIDE ASSIST |
MR330017 |
US $19.84 |
||
|
78325
|
78325
MR330018 GRIP, ROOF INSIDE ASSIST |
MR330018 |
US $16.28 |
||
|
78325
|
78325
MR330019 GRIP, ROOF INSIDE ASSIST |
MR330019 |
US $45.14 |
||
|
78325
|
78325
MR330020 GRIP, ROOF INSIDE ASSIST |
MR330020 |
US $29.60 |
||
|
78325
|
78325
MR330021 GRIP, ROOF INSIDE ASSIST |
MR330021 |
US $45.14 |
||
|
78325
|
78325
MR330022 GRIP, ROOF INSIDE ASSIST |
MR330022 |
US $29.60 |
||
|
78325
|
78325
MR739203 GRIP, ROOF INSIDE ASSISTLh/rh(w/o hanger) |
MR739203 |
US $59.20 |
||
|
78325
|
78325
MR739204 GRIP, ROOF INSIDE ASSISTLh/rh(w/o hanger) |
MR739204 |
US $59.20 |
||
|
78325
|
78325
MR908884
GRIP,ROOF INSIDE ASSIST
|
MR908884 |
— | ||
|
78325
|
78325
MR908885
GRIP,ROOF INSIDE ASSIST
|
MR908885 |
— | ||
|
78325
|
78325
MR908889
GRIP,ROOF INSIDE ASSIST
|
MR908889 |
— | ||
|
78325
|
78325
MR908890
GRIP,ROOF INSIDE ASSIST
|
MR908890 |
— | ||
|
78325
|
78325
MR908891
GRIP,ROOF INSIDE ASSIST
|
MR908891 |
— | ||
|
78325
|
78325
MR908892
GRIP,ROOF INSIDE ASSIST
|
MR908892 |
— | ||
|
78325
|
78325
MR996272HA
GRIP,ROOF INSIDE ASSIST
|
MR996272HA |
— | ||
|
78325
|
78325
MR996272YA
GRIP,ROOF INSIDE ASSIST
|
MR996272YA |
— | ||
|
80658
|
80658
MR148280 LENS, SUNVISOR LAMP |
MR148280 |
US $3.85 |
||
|
80658
|
80658
MR471704 LENS, SUNVISOR LAMP |
MR471704 |
US $4.59 |
