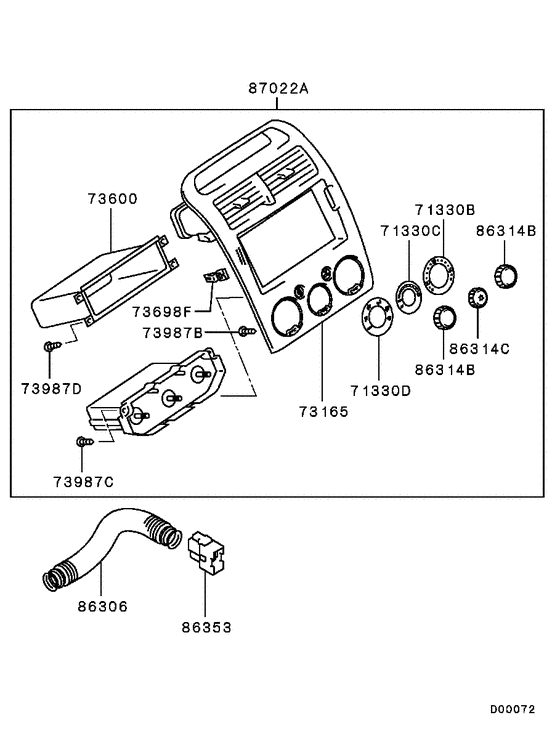

Heater control (HEATER CONTROL PANEL(0309.1-)) Diagram Mitsubishi DIAMANTE
- Year
- 1996 - 2004
- Sales region
- MMNA/MMAL
- Note
- LS/ES-L(99M-),4FA/T FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- LS/ES-L
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71330B
|
71330B
MR930282
LABEL,HEATER CONTROL
|
MR930282 |
— | ||
|
71330B
|
71330B
MR931939
LABEL,HEATER CONTROL
|
MR931939 |
— | ||
|
71330C
|
71330C
MR930284
LABEL,HEATER CONTROL
|
MR930284 |
— | ||
|
71330D
|
71330D
MR930286
LABEL,HEATER CONTROL
|
MR930286 |
— | ||
|
73165
|
73165
MR751954
PANEL,INSTRUMENT,CTR
|
MR751954 |
— | ||
|
73165
|
73165
MR781146
PANEL,INSTRUMENT,CTR
|
MR781146 |
— | ||
|
73165
|
73165
MR931942
PANEL,INSTRUMENT,CTR
|
MR931942 |
— | ||
|
73600
|
73600
MR928127
BOX,INSTRUMENT PANEL CONSOLE
|
MR928127 |
— | ||
|
73698F
|
73698F
MR233536 CLIP, INSTRUMENT PANEL CONSOLE |
MR233536 |
US $6.22 |
||
|
73987B
|
73987B
MF453002 SCREW, RR LAMPTapping,3x6 |
MF453002 |
from US $0.27 |
||
|
73987C
|
73987C
MF453017 SCREWTapping,4x12 |
MF453017 |
from US $1.44 |
||
|
73987D
|
73987D
MF455495 SCREW, HEADLININGTapping,4x8 |
MF455495 |
US $2.07 |
||
|
73987D
|
73987D
MR455495
LABEL,TIRE PRESSURE
|
MR455495 |
— | ||
|
86306
|
86306
MB897442
HOSE, AUTO HEATER CONTROL VACUUM
|
MB897442 |
— | ||
|
86306
|
86306
MN108143
HOSE, AUTO HEATER CONTROL VACUUM
|
MN108143 |
— | ||
|
86306
|
86306
MR250587
HOSE,AUTO HEATER CONTROL VACUUM
|
MR250587 |
— | ||
|
86314B
|
86314B
MR930232
KNOB,HEATER CONTROL LEVER
|
MR930232 |
— | ||
|
86314C
|
86314C
MR930234
KNOB,HEATER CONTROL LEVER
|
MR930234 |
— | ||
|
86353
|
86353
MN134419
SENSOR, HEATER AIR INTAKE DUCT
|
MN134419 |
— | ||
|
87022A
|
87022A
MR931742
PANEL ASSY,INSTRUMENT,CTR
|
MR931742 |
— | ||
|
87022A
|
87022A
MR931744
PANEL ASSY,INSTRUMENT,CTR
|
MR931744 |
— |
