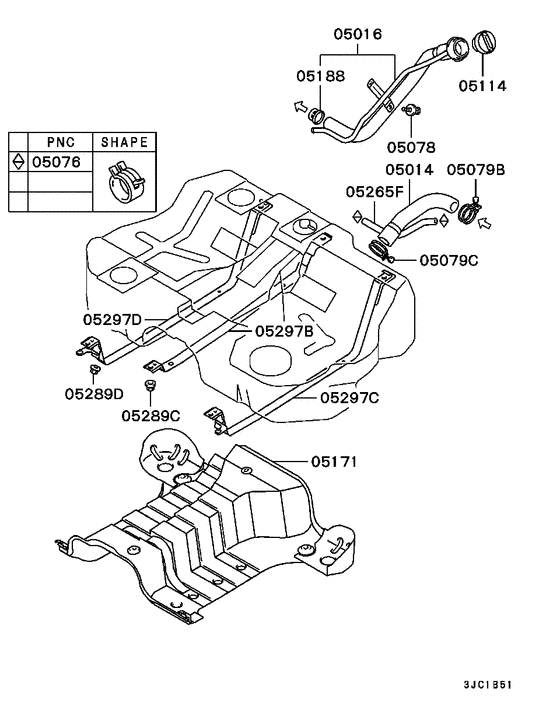

Fuel tank (FUEL FILLER PIPE) Diagram Mitsubishi DIAMANTE
- Year
- 1997 - 1999
- Sales region
- Japan
- Note
- ESPADA(4WD/GDI),5FA/T
- drive
- 4WD/4WD
- transmission
- 5FA/T
- grade
- ESPADA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05014
|
05014
MR134227 HOSE, FUEL FILLER |
MR134227 |
US $56.24 |
||
|
05014
|
05014
MR978063 HOSE, FUEL FILLER |
MR978063 |
US $51.80 |
||
|
05016
|
05016
MR134222 NECK, FUEL FILLER |
MR134222 |
US $149.48 |
||
|
05076
|
05076
MS660173 CLIP, FUEL TANKD=18.5 |
MS660173 |
from US $1.54 |
||
|
05078
|
05078
MF244249 BOLT, ENG HANGERWasher assembled,8x16 |
MF244249 |
US $2.19 |
||
|
05079B
|
05079B
MS660271 CLAMP, FUEL TANK45 |
MS660271 |
from US $2.91 |
||
|
05079C
|
05079C
MF661023 CLAMP, ENG BREATHERD=48 |
MF661023 |
from US $2.60 |
||
|
05079C
|
05079C
MS660031 CLAMP, FUEL TANK52 |
MS660031 |
from US $2.81 |
||
|
05114
|
05114
MB825327 CAP, FUEL TANK |
MB825327 |
US $31.46 |
||
|
05114
|
05114
MN106160 CAP, FUEL TANK |
MN106160 |
from US $23.48 |
||
|
05114
|
05114
MR342330
CAP, FUEL TANK
|
MR342330 |
— | ||
| replacement | |||||
|
05114
|
05114
MN106160 CAP, FUEL TANK |
MN106160 |
from US $23.48 |
||
|
05171
|
05171
MR134167 PROTECTOR, FUEL TANK, LWR |
MR134167 |
US $195.36 |
||
|
05188
|
05188
MR135439 VALVE, FUEL FILLER NECK |
MR135439 |
from US $6.86 |
||
|
05265F
|
05265F
MR134233 HOSE, FUEL TANK |
MR134233 |
US $13.02 |
||
|
05289C
|
05289C
MS440504 NUTWasher assembled,10 |
MS440504 |
from US $0.66 |
||
|
05289D
|
05289D
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
05297B
|
05297B
MR134175 BAND, FUEL TANK |
MR134175 |
US $78.44 |
||
|
05297C
|
05297C
MR134173 BAND, FUEL TANK |
MR134173 |
US $96.20 |
||
|
05297D
|
05297D
MR134174 BAND, FUEL TANK |
MR134174 |
US $96.20 |
||
