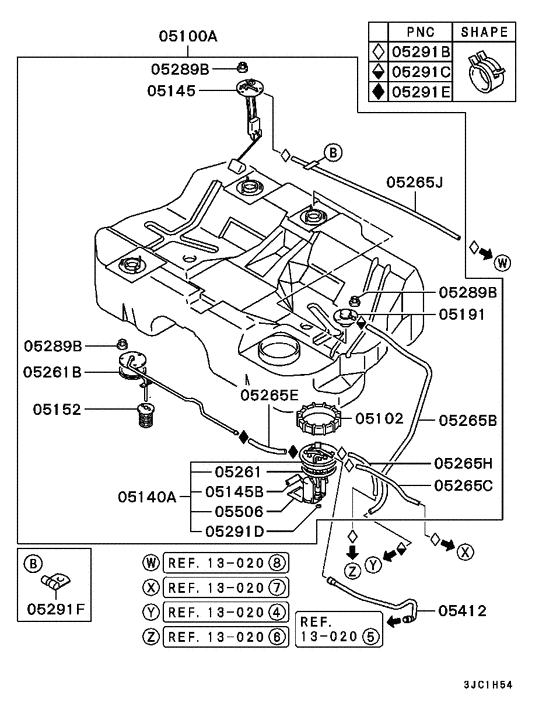

Fuel tank (FUEL TANK..9909.1-) Diagram Mitsubishi DIAMANTE
- Year
- 1997 - 1999
- Sales region
- Japan
- Note
- FAIRWAY(4WD/GDI),5FA/T
- drive
- 4WD/4WD
- transmission
- 5FA/T
- grade
- FAIRWAY
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05100A
|
05100A
MR134158 FUEL TANK ASSY |
MR134158 |
US $1,771.20 |
||
|
05100A
|
05100A
MR342473 FUEL TANK ASSY |
MR342473 |
US $1,814.40 |
||
|
05100A
|
05100A
MR970874 FUEL TANK ASSY |
MR970874 |
US $1,814.40 |
||
|
05102
|
05102
MB867374 CAP, FUEL TANK PUMP & GAUGE MOUNTING |
MB867374 |
US $31.46 |
||
|
05102
|
05102
MR970854 CAP, FUEL TANK PUMP & GAUGE MOUNTING |
MR970854 |
US $26.64 |
||
|
05140A
|
05140A
MR208493 PUMP & GAUGE ASSY, FUEL TANK |
MR208493 |
US $1,179.36 |
||
|
05140A
|
05140A
MR392238 PUMP & GAUGE ASSY, FUEL TANK |
MR392238 |
US $1,218.67 |
||
|
05140A
|
05140A
MR439586 PUMP & GAUGE ASSY, FUEL TANK |
MR439586 |
US $1,217.22 |
||
|
05140A
|
05140A
MR990592 PUMP & GAUGE ASSY, FUEL TANK |
MR990592 |
US $1,217.22 |
||
|
05145
|
05145
MR134522 GAUGE UNIT, FUEL TANK |
MR134522 |
US $75.48 |
||
|
05145
|
05145
MR342478 GAUGE UNIT, FUEL TANK |
MR342478 |
US $84.36 |
||
|
05145B
|
05145B
MR134521 GAUGE UNIT, FUEL TANK |
MR134521 |
US $176.12 |
||
|
05152
|
05152
MB129895 FILTER, FUEL IN TANK |
MB129895 |
from US $4.72 |
||
|
05191
|
05191
MR187855 VALVE, FUEL TANK SAFETY |
MR187855 |
US $38.99 |
||
|
05261
|
05261
MB867373
GASKET, FUEL TANK
|
MB867373 |
— | ||
| replacement | |||||
|
05261
|
05261
MR342213 GASKET, FUEL TANK |
MR342213 |
US $34.20 |
||
|
05261
|
05261
MR342213 GASKET, FUEL TANK |
MR342213 |
US $34.20 |
||
|
05261
|
05261
MR970853 GASKET, FUEL TANK PUMP |
MR970853 |
US $45.14 |
||
|
05261B
|
05261B
MB329077
GASKET, FUEL TANK PUMP
|
MB329077 |
— | ||
|
05265B
|
05265B
MR134643 HOSE, FUEL TANK |
MR134643 |
US $19.98 |
||
|
05265C
|
05265C
MR271072 HOSE, FUEL TANK |
MR271072 |
US $9.47 |
||
|
05265E
|
05265E
MU601799 HOSE, FUEL TANK8x2000 |
MU601799 |
US $87.55 |
||
|
05265H
|
05265H
MR342654 HOSE, FUEL TANK |
MR342654 |
US $11.10 |
||
|
05265J
|
05265J
MU601260 HOSE, FUEL TANK6x600 |
MU601260 |
US $15.54 |
||
|
05289B
|
05289B
MS440501 NUT, FUEL TANKWasher assembled,5 |
MS440501 |
from US $1.03 |
||
|
05291B
|
05291B
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05291C
|
05291C
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05291D
|
05291D
MB595890 CLIP, FUEL TANK |
MB595890 |
US $3.97 |
||
|
05291E
|
05291E
MS660175 CLIP, ROCKER COVERD=12.5 |
MS660175 |
from US $1.46 |
||
|
05291F
|
05291F
MB553316 CLIP, P/S OIL LINE10 |
MB553316 |
US $6.07 |
||
|
05412
|
05412
MR161241 HOSE, FUEL HIGH PRESSURE |
MR161241 |
US $66.60 |
||
|
05412
|
05412
MR342638 HOSE, FUEL HIGH PRESSURE |
MR342638 |
US $232.36 |
||
|
05506
|
05506
MR204495 FILTER, FUEL PUMP |
MR204495 |
from US $31.84 |
||
|
