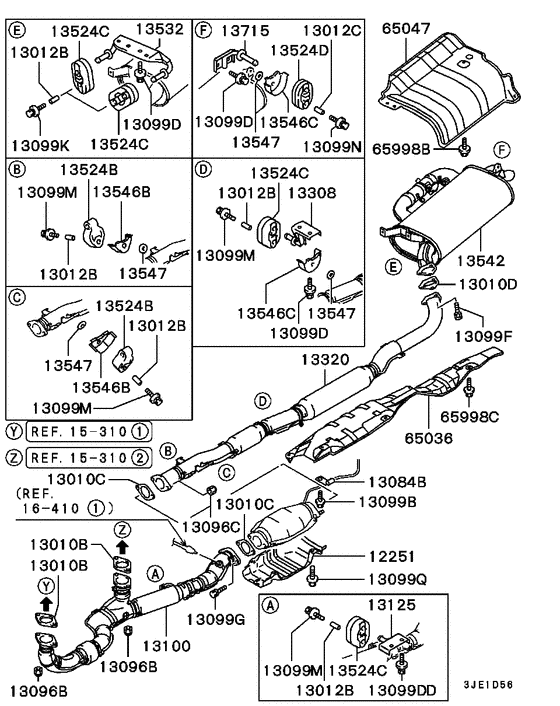

Exhaust pipe & muffler (DOHC..EXHAUST PIPE & MUFFLER) Diagram Mitsubishi DIAMANTE
- Year
- 1997 - 2002
- Sales region
- Japan
- Note
- SE-R(4WD/GDI)/30R-SE(4WD/GDI),5FA/T
- drive
- 4WD/4WD/4WD
- transmission
- 5FA/T
- grade
- SE-R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12251
|
12251
MR160492 PROTECTOR, CATALYTIC CONVERTER |
MR160492 |
US $55.50 |
||
|
13010B
|
13010B
MB687015 GASKET, EXHAUST PIPE |
MB687015 |
from US $5.77 |
||
|
13010C
|
13010C
MB687004 GASKET, EXHAUST PIPE |
MB687004 |
from US $7.61 |
||
|
13010D
|
13010D
MB687013 GASKET, EXHAUST PIPE |
MB687013 |
from US $5.50 |
||
|
13010D
|
13010D
MB687014 GASKET, EXHAUST PIPE |
MB687014 |
from US $7.12 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.85 |
||
|
13012C
|
13012C
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.31 |
||
|
13084B
|
13084B
MR204913 CLIP, EXHAUST PIPE |
MR204913 |
US $5.77 |
||
|
13096B
|
13096B
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.11 |
||
|
13096C
|
13096C
MB059359 NUT, CATALYTIC CONVERTERSelf locking,6t,12 |
MB059359 |
from US $2.11 |
||
|
13096C
|
13096C
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.27 |
||
|
13099D
|
13099D
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
13099DD
|
13099DD
MF240057 BOLT, CYLINDER HEADWasher assembled,8x30 |
MF240057 |
from US $0.90 |
||
|
13099F
|
13099F
MF241284 BOLT, CYLINDER BLOCKWasher assembled,10x30 |
MF241284 |
from US $1.31 |
||
|
13099G
|
13099G
MF241311 BOLT, PROPELLER SHAFT PROTECTORWasher assembled,12x35 |
MF241311 |
from US $2.15 |
||
|
13099K
|
13099K
MF243659
BOLT, INTER COOLER
|
MF243659 |
— | ||
| replacement | |||||
|
13099K
|
13099K
MF244859 BOLT, A/C COMPRESSORWasher assembled,8x40 |
MF244859 |
from US $1.44 |
||
|
13099M
|
13099M
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.58 |
||
|
13099N
|
13099N
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099Q
|
13099Q
MB376864 BOLT, CATALYTIC CONVERTERFlange,6x12 |
MB376864 |
US $4.29 |
||
|
13100
|
13100
MR161184 PIPE, EXHAUST, FR |
MR161184 |
US $1,068.70 |
||
|
13125
|
13125
MR160752 HANGER, EXHAUST FR PIPE |
MR160752 |
US $25.16 |
||
|
13125
|
13125
MR340895 HANGER, EXHAUST FR PIPE |
MR340895 |
US $79.18 |
||
|
13308
|
13308
MR160761 HANGER, EXHAUST CTR PIPE |
MR160761 |
US $33.30 |
||
|
13308
|
13308
MR404176 HANGER, EXHAUST CTR PIPE |
MR404176 |
US $21.46 |
||
|
13320
|
13320
MR161196 PIPE, EXHAUST, CTR |
MR161196 |
US $848.85 |
||
|
13320
|
13320
MR373430 PIPE, EXHAUST, CTR |
MR373430 |
US $848.85 |
||
|
13320
|
13320
MR404580 PIPE, EXHAUST, CTR |
MR404580 |
US $873.60 |
||
|
13524B
|
13524B
MB611935 HANGER, EXHAUST MUFFLER |
MB611935 |
US $12.86 |
||
|
13524C
|
13524C
MB906124 HANGER, EXHAUST MUFFLER |
MB906124 |
from US $10.02 |
||
|
13524D
|
13524D
MB924316 HANGER, EXHAUST MUFFLER |
MB924316 |
from US $14.06 |
||
|
13524D
|
13524D
MR266173 HANGER, EXHAUST MUFFLER |
MR266173 |
US $19.84 |
||
|
13532
|
13532
MR160748 HANGER, EXHAUST MUFFLER, RR |
MR160748 |
US $40.70 |
||
|
13542
|
13542
MR161110 MUFFLER, EXHAUST MAIN |
MR161110 |
US $711.98 |
||
|
13542
|
13542
MR373432 MUFFLER, EXHAUST MAIN |
MR373432 |
US $711.98 |
||
|
13542
|
13542
MR404578 MUFFLER, EXHAUST MAIN |
MR404578 |
US $711.98 |
||
|
13542
|
13542
MR529118 MUFFLER, EXHAUST MAIN |
MR529118 |
US $713.44 |
||
|
13546B
|
13546B
MB549135 PROTECTOR, EXHAUST MUFFLER HANGER |
MB549135 |
US $5.62 |
||
|
13546C
|
13546C
MB687527 PROTECTOR, EXHAUST MUFFLER HANGER |
MB687527 |
US $8.21 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.52 |
||
|
13715
|
13715
MR160754 HANGER, EXHAUST TAIL PIPE |
MR160754 |
US $21.46 |
||
|
65036
|
65036
MR118986 PROTECTOR, UNDER FR FLOOR HEAT |
MR118986 |
US $143.56 |
||
|
65047
|
65047
MR118987 PROTECTOR, UNDER RR FLOOR HEAT |
MR118987 |
US $109.52 |
||
|
65998B
|
65998B
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
65998B
|
65998B
MF243649 BOLT, FLYWHEEL HOUSINGWasher assembled,8x16 |
MF243649 |
from US $0.59 |
||
|
65998C
|
65998C
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
