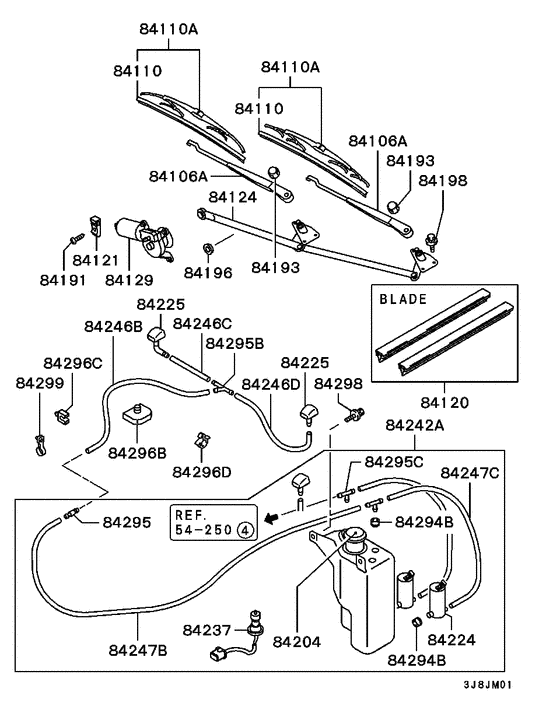

Windshield wiper & washer Diagram Mitsubishi DIAMANTE WAGON
- Year
- 1992 - 1994
- Sales region
- MMNA/MMAL
- Note
- VU(VP)-(V6-SOHC-MPI),4FA/T MMSA-FED
- drive
- 2WD
- transmission
- 4FA/T
- grade
- VU
- body
- STATION WAGON
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84106A
|
84106A
MB859137
ARM ASSY,WINDSHIELD WIPER
|
MB859137 |
— | ||
|
84106A
|
84106A
MB859138
ARM ASSY,WINDSHIELD WIPER
|
MB859138 |
— | ||
|
84110
|
84110
MB572522
BLADE,WINDSHIELD WIPER
|
MB572522 |
— | ||
|
84110
|
84110
MB821509 BLADE, WINDSHIELD WIPER500 |
MB821509 |
from US $9.99 |
||
|
84110A
|
84110A
MB683714 BLADE ASSY, WINDSHIELD WIPER |
MB683714 |
US $38.88 |
||
|
84110A
|
84110A
MB859134 BLADE ASSY, WINDSHIELD WIPER |
MB859134 |
US $51.84 |
||
|
84120
|
84120
MB861021 BLADE SET, WINDSHIELD WIPER |
MB861021 |
US $18.72 |
||
|
84121
|
84121
MB617725 INSULATOR, WINDSHIELD WIPER MOTOR |
MB617725 |
US $6.34 |
||
|
84124
|
84124
MB617862
LINK,WINDSHIELD WIPER
|
MB617862 |
— | ||
|
84129
|
84129
MB617845
MOTOR,WINDSHIELD WIPER
|
MB617845 |
— | ||
|
84191
|
84191
MF453031 SCREW 5x12Tapping,5x12 |
MF453031 |
from US $1.73 |
||
|
84193
|
84193
MS440074 NUT, PTO GEARSHIFT LINKCap,8 |
MS440074 |
from US $3.29 |
||
|
84196
|
84196
MB617724 GROMMET, WINDSHIELD WIPER30 |
MB617724 |
US $6.62 |
||
|
84196
|
84196
MU670035 PLUG, BODY30 |
MU670035 |
from US $2.64 |
||
|
84198
|
84198
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.71 |
||
|
84204
|
84204
AW335390 CAP, WINDSHIELD WASHER TANK FILLER |
AW335390 |
US $13.82 |
||
|
84224
|
84224
AW333610 MOTOR, WINDSHIELD WASHER |
AW333610 |
US $118.08 |
||
|
84224
|
84224
MB286961 MOTOR, WINDSHIELD WASHER |
MB286961 |
US $64.64 |
||
|
84225
|
84225
AW325497 NOZZLE, WINDSHIELD WASHER |
AW325497 |
US $57.60 |
||
|
84225
|
84225
AW325498 NOZZLE, WINDSHIELD WASHER |
AW325498 |
US $57.60 |
||
|
84237
|
84237
MB821463 SWITCH, WINDSHIELD WASHER TANK FLUID LEVEL |
MB821463 |
US $60.48 |
||
|
84242A
|
84242A
AW337607 TANK ASSY, WINDSHIELD WASHER |
AW337607 |
US $149.76 |
||
|
84246B
|
84246B
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $85.68 |
||
|
84246C
|
84246C
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $85.68 |
||
|
84246D
|
84246D
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $85.68 |
||
|
84247B
|
84247B
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $85.68 |
||
|
84247C
|
84247C
AW335100 TUBE, WINDSHIELD WASHER MOTOR SIDERubber,4mmx10m |
AW335100 |
US $85.68 |
||
|
84294B
|
84294B
04157188 GROMMET, WINDSHIELD WASHER |
04157188 |
US $5.47 |
||
| replacement | |||||
|
84294B
|
84294B
4157188 no 'Representative Part Name' |
4157188 |
US $13.39 |
||
|
84294B
|
84294B
MB617937
GASKET, RR WINDOW WASHER TANK
|
MB617937 |
— | ||
| replacement | |||||
|
84294B
|
84294B
MC845482 GASKET, WINDSHIELD WASHER MOTOR |
MC845482 |
from US $0.92 |
||
|
84295
|
84295
MB171570 JOINT, RR WINDOW WASHER |
MB171570 |
US $2.64 |
||
|
84295B
|
84295B
MB623192 JOINT, WINDSHIELD WASHER |
MB623192 |
from US $1.45 |
||
|
84295C
|
84295C
AW336136 JOINT, WINDSHIELD WASHER |
AW336136 |
US $2.74 |
||
|
84296B
|
84296B
MB529507 CLIP, WINDSHIELD WASHER7x3 |
MB529507 |
US $3.43 |
||
|
84296C
|
84296C
MU481044 CLIP, WINDSHIELD WASHER8 |
MU481044 |
from US $2.05 |
||
|
84296D
|
84296D
MU481163 CLIP, WINDSHIELD WASHER7 |
MU481163 |
US $3.04 |
||
|
84298
|
84298
MS240411 BOLT, ENG CONTROL EQUIPWasher assembled,6x20 |
MS240411 |
US $1.87 |
||
|
84299
|
84299
MS470402 CLIP, WIRING, NO.2 |
MS470402 |
US $2.77 |
||
