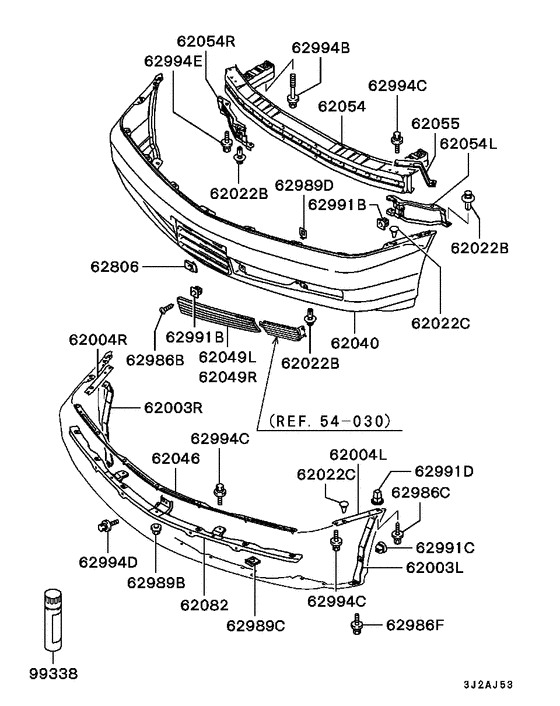

Front bumper & support Diagram Mitsubishi DIAMANTE WAGON
- Year
- 1997 - 1998
- Sales region
- MMAL
- Note
- LS,5FA/T JAPAN
- drive
- 2WD
- transmission
- 5FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62003L
|
62003L
AW339783 BRACKET, FR BUMPER SIDE, LWR LH |
AW339783 |
US $21.46 |
||
|
62003R
|
62003R
AW339784 BRACKET, FR BUMPER SIDE, LWR RH |
AW339784 |
US $21.46 |
||
|
62004L
|
62004L
AW339781 BRACKET, FR BUMPER SIDE, UPR LH |
AW339781 |
US $7.55 |
||
|
62004R
|
62004R
AW339782 BRACKET, FR BUMPER SIDE, UPR RH |
AW339782 |
US $7.55 |
||
|
62022B
|
62022B
MB253964 CLIP, FR BUMPER |
MB253964 |
from US $1.40 |
||
|
62022C
|
62022C
MU481042 CLIP, HEATER5.8 |
MU481042 |
US $1.92 |
||
|
62040
|
62040
AW347886 FACE, FR BUMPER |
AW347886 |
US $711.98 |
||
|
62046
|
62046
AW339754 PLATE, FR BUMPER, UPR |
AW339754 |
US $44.40 |
||
|
62049L
|
62049L
AW339787 GRILLE, FR BUMPER, LH |
AW339787 |
US $70.30 |
||
|
62049R
|
62049R
AW339788 GRILLE, FR BUMPER, RH |
AW339788 |
US $70.30 |
||
|
62054
|
62054
AW344513 REINFORCEMENT, FR BUMPER |
AW344513 |
US $269.36 |
||
|
62054L
|
62054L
AW339795 REINFORCEMENT, FR BUMPER, LH |
AW339795 |
US $35.52 |
||
|
62054R
|
62054R
AW339796 REINFORCEMENT, FR BUMPER, RH |
AW339796 |
US $35.52 |
||
|
62055
|
62055
AW339785 REINFORCEMENT, FR BUMPER SIDE |
AW339785 |
US $7.84 |
||
|
62082
|
62082
AW339789 SUPPORT, FR BUMPER, UPR |
AW339789 |
US $63.64 |
||
|
62806
|
62806
MB325163 BRACKET, FR LICENSE PLATE |
MB325163 |
from US $3.32 |
||
|
62986B
|
62986B
MF456219 SCREW, EXTERIOR MARKTapping,4x16 |
MF456219 |
US $2.22 |
||
|
62986C
|
62986C
MS452348 SCREW, STEERING COLUMN |
MS452348 |
from US $2.22 |
||
|
62986F
|
62986F
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.88 |
||
|
62989B
|
62989B
AW337516 NUT, RR BUMPER6 |
AW337516 |
US $2.37 |
||
|
62989C
|
62989C
MU440019 NUT, FR BUMPER6 |
MU440019 |
from US $1.92 |
||
|
62989D
|
62989D
MR220774 NUT, FR BUMPER3 |
MR220774 |
US $2.22 |
||
|
62991B
|
62991B
MB249471
GROMMET, FR BUMPER
|
MB249471 |
— | ||
| replacement | |||||
|
62991B
|
62991B
MU480001 GROMMET, FR BUMPERScrew,4 |
MU480001 |
US $4.10 |
||
|
62991C
|
62991C
MS480003 GROMMET, FUEL FILLER LID PANELScrew,6 |
MS480003 |
from US $0.88 |
||
|
62991D
|
62991D
MU480035 GROMMET, ABS CONTROL EQUIPScrew,6 |
MU480035 |
from US $0.68 |
||
|
62994B
|
62994B
MF244897 BOLT, FR BUMPERWasher assembled,10x100 |
MF244897 |
US $5.48 |
||
|
62994C
|
62994C
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
US $2.74 |
||
|
62994D
|
62994D
MS240156 BOLTWasher assembled,6x20 |
MS240156 |
from US $0.88 |
||
|
62994E
|
62994E
MR906168 BOLT, RR BUMPERSpecial shoulder,6x15 |
MR906168 |
US $1.63 |
||
|
99338
|
99338
MZ101986 TOUCH-UP PAINT |
MZ101986 |
US $10.36 |
||
|
99338
|
99338
MZ103011 TOUCH-UP PAINT |
MZ103011 |
US $10.36 |
||
|
