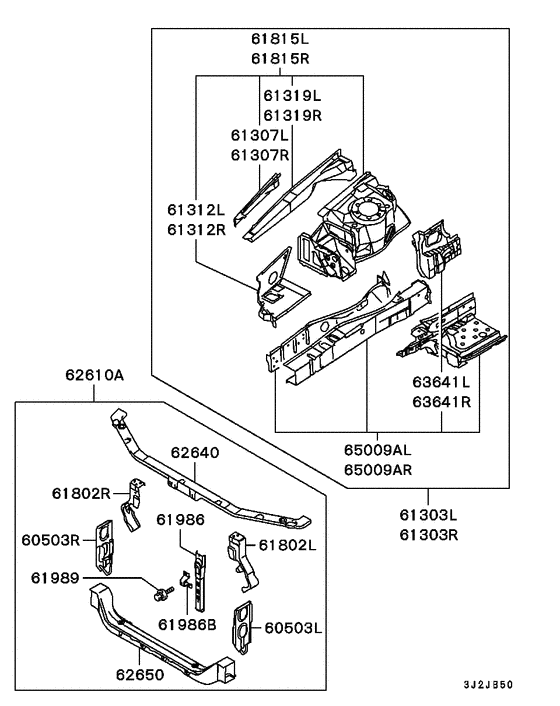

Front end panel Diagram Mitsubishi DIAMANTE WAGON
- Year
- 1997 - 1998
- Sales region
- MMAL
- Note
- LS,5FA/T JAPAN
- drive
- 2WD
- transmission
- 5FA/T
- grade
- LS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
60503L
|
60503L
AW348187
BRACKET, TRACTION HOOK, LH
|
AW348187 |
— | ||
|
60503R
|
60503R
AW348188
BRACKET, TRACTION HOOK, RH
|
AW348188 |
— | ||
|
61303L
|
61303L
AW348137 FENDER SHIELD, FR LH |
AW348137 |
US $989.66 |
||
|
61303R
|
61303R
AW348138 FENDER SHIELD, FR RH |
AW348138 |
US $847.39 |
||
|
61307L
|
61307L
AW348139 FRAME, FENDER SHIELD, UPR OTR LH |
AW348139 |
US $22.94 |
||
|
61307R
|
61307R
AW348140 FRAME, FENDER SHIELD, UPR OTR RH |
AW348140 |
US $22.94 |
||
|
61312L
|
61312L
AW348135 PLATE, FENDER SHIELD, LH |
AW348135 |
US $89.54 |
||
|
61312R
|
61312R
AW348136 PLATE, FENDER SHIELD, RH |
AW348136 |
US $89.54 |
||
|
61319L
|
61319L
AW348141 FRAME, FENDER SHIELD, UPR INR LH |
AW348141 |
US $116.18 |
||
|
61319R
|
61319R
AW348142 FRAME, FENDER SHIELD, UPR INR RH |
AW348142 |
US $116.18 |
||
|
61802L
|
61802L
MR927905
BRACE, FR SIDEMEMBER TO CROSSMEMBER, LH
|
MR927905 |
— | ||
|
61802R
|
61802R
MR927954
BRACE, FR SIDEMEMBER TO CROSSMEMBER, RH
|
MR927954 |
— | ||
|
61815L
|
61815L
AW348143
WHEELHOUSE, FR INR LH
|
AW348143 |
— | ||
|
61815R
|
61815R
AW348144 WHEELHOUSE, FR INR RH |
AW348144 |
US $359.63 |
||
|
61986
|
61986
AW348295
STAY, FR END STRUCTURE
|
AW348295 |
— | ||
|
61986B
|
61986B
MR344309 STAY, FR END STRUCTURE |
MR344309 |
US $6.81 |
||
|
61989
|
61989
MF243623 BOLT, FLYWHEEL HOUSINGWasher assembled,6x14 |
MF243623 |
US $2.74 |
||
|
62610A
|
62610A
AW348129
SUPPORT ASSY, HEADLAMP
|
AW348129 |
— | ||
|
62640
|
62640
AW348130 PANEL, HEADLAMP SUPPORT, UPR |
AW348130 |
US $103.42 |
||
|
62650
|
62650
AW348131 PANEL, HEADLAMP SUPPORT, LWR |
AW348131 |
US $164.16 |
||
|
63641L
|
63641L
AW348293 SIDE SILL, FR FLOOR, FR INR LH |
AW348293 |
US $79.92 |
||
|
63641R
|
63641R
AW348294 SIDE SILL, FR FLOOR, FR INR RH |
AW348294 |
US $79.92 |
||
|
65009AL
|
65009AL
MR920939 SIDEMEMBER ASSY, FR LH |
MR920939 |
US $356.93 |
||
|
65009AR
|
65009AR
AW348146 SIDEMEMBER ASSY, FR RH |
AW348146 |
US $589.68 |
