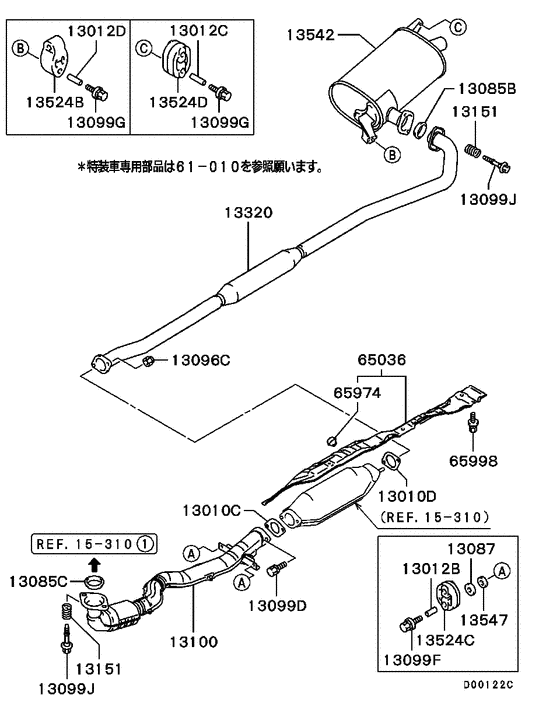

Exhaust pipe & muffler (4WD) Diagram Mitsubishi DION
- Year
- 2002 - 2004
- Sales region
- Japan
- Note
- TC-NAVI 4WD(TURBO),4CA/T
- drive
- 4WD
- transmission
- 4CA/T
- grade
- TC-NAVI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13010C
|
13010C
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $6.94 |
||
|
13010C
|
13010C
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.88 |
||
|
13010D
|
13010D
MB687002 GASKET, EXHAUST PIPE |
MB687002 |
from US $6.94 |
||
|
13010D
|
13010D
MR529712 GASKET, EXHAUST PIPE |
MR529712 |
from US $4.88 |
||
|
13012B
|
13012B
MB514690 COLLAR, EXHAUST PIPE |
MB514690 |
from US $1.52 |
||
|
13012C
|
13012C
MB611937 COLLAR, EXHAUST PIPE |
MB611937 |
from US $1.77 |
||
|
13012D
|
13012D
MR464291 COLLAR, EXHAUST PIPE |
MR464291 |
US $2.96 |
||
|
13085B
|
13085B
MR450702 SEAL RING, EXHAUST PIPE |
MR450702 |
from US $14.08 |
||
|
13085C
|
13085C
MR431022
SEAL RING, EXHAUST PIPE
|
MR431022 |
— | ||
| replacement | |||||
|
13085C
|
13085C
1575A082 SEAL RING, EXHAUST PIPE |
1575A082 |
from US $17.36 |
||
|
13087
|
13087
MF450154 WASHER, ENG FR MOUNTINGPlain,8 |
MF450154 |
from US $0.66 |
||
|
13096C
|
13096C
MR571083 NUT, EXHAUST PIPE |
MR571083 |
from US $1.48 |
||
|
13099D
|
13099D
MF241309 BOLT, ENG MOUNTINGWasher assembled,12x30 |
MF241309 |
from US $1.83 |
||
|
13099F
|
13099F
MF243660 BOLT, RADIATORWasher assembled,8x45 |
MF243660 |
from US $1.38 |
||
|
13099G
|
13099G
MF243662 BOLT, RADIATORWasher assembled,8x55 |
MF243662 |
US $2.33 |
||
|
13099J
|
13099J
MR431025 BOLT, EXHAUST PIPEFlange |
MR431025 |
from US $2.87 |
||
|
13100
|
13100
MR340616 PIPE, EXHAUST, FR |
MR340616 |
US $1,243.42 |
||
|
13151
|
13151
MR431024 SPRING, EXHAUST FR PIPE CUSHION |
MR431024 |
from US $6.28 |
||
|
13320
|
13320
MR968140 PIPE, EXHAUST, CTR |
MR968140 |
US $519.79 |
||
|
13524B
|
13524B
MR281817 HANGER, EXHAUST MUFFLER |
MR281817 |
from US $11.52 |
||
|
13524C
|
13524C
MB906129 HANGER, EXHAUST MUFFLER |
MB906129 |
US $16.42 |
||
|
13524D
|
13524D
MR281816 HANGER, EXHAUST MUFFLER |
MR281816 |
from US $10.90 |
||
|
13542
|
13542
MR597429 MUFFLER, EXHAUST MAIN |
MR597429 |
US $495.04 |
||
|
13547
|
13547
MB651931 SEAT, EXHAUST MUFFLER HANGER |
MB651931 |
from US $2.34 |
||
|
65036
|
65036
MR516127 PROTECTOR, UNDER FR FLOOR HEAT |
MR516127 |
US $70.30 |
||
|
65036
|
65036
MR991438 PROTECTOR, UNDER FR FLOOR HEAT |
MR991438 |
US $77.70 |
||
|
65974
|
65974
MB537428 DAMPER, TRUNK LID |
MB537428 |
from US $0.82 |
||
|
65998
|
65998
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.11 |
||
|
