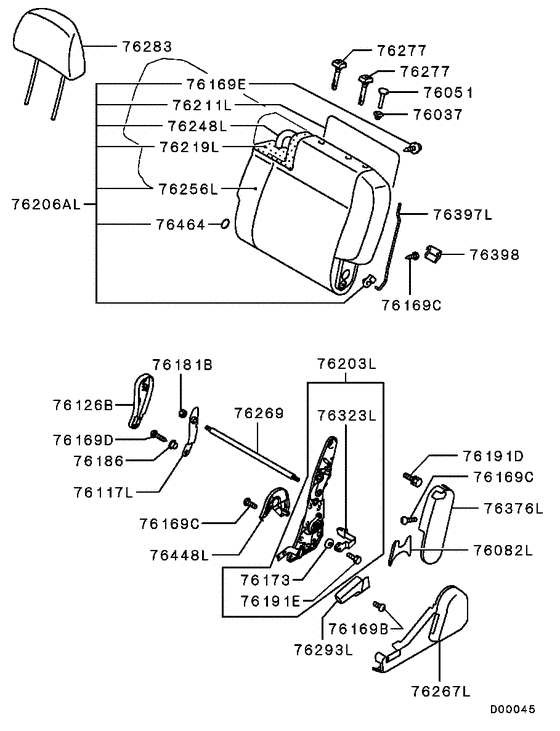

Rear seat (BACK..LH) Diagram Mitsubishi DION
- Year
- 2002 - 2004
- Sales region
- Japan
- Note
- VIE-X C PACKAGE,CVT
- transmission
- CVT
- grade
- VIE-X C PACKAGE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76037
|
76037
MR619358 GARNISH, FR SEAT FOLDING KNOB |
MR619358 |
US $1.92 |
||
|
76037
|
76037
MR638413 GARNISH, RR SEAT FOLDING KNOB |
MR638413 |
US $1.92 |
||
|
76051
|
76051
MR619617 KNOB, RR SEAT FOLDING |
MR619617 |
US $3.26 |
||
|
76051
|
76051
MR638414 KNOB, RR SEAT FOLDING |
MR638414 |
US $3.26 |
||
|
76082L
|
76082L
MR619420 COVER, RR SEAT HINGE, LH |
MR619420 |
US $3.55 |
||
|
76082L
|
76082L
MR638434 COVER, RR SEAT HINGE, LH |
MR638434 |
US $3.55 |
||
|
76117L
|
76117L
MR457133 BRACKET, RR SEAT FREE HINGE, LH |
MR457133 |
US $19.98 |
||
|
76126B
|
76126B
MN124223HD COVER, RR SEAT BACK HINGE |
MN124223HD |
US $9.62 |
||
|
76126B
|
76126B
MN124223YB COVER, RR SEAT BACK HINGE |
MN124223YB |
US $9.62 |
||
|
76169B
|
76169B
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
76169C
|
76169C
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
76169D
|
76169D
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
76169E
|
76169E
MS450154 SCREW, STEERING WHEELTapping,4x16 |
MS450154 |
from US $2.81 |
||
|
76169E
|
76169E
MU466001 SCREW, RR SEATTapping,4x16 |
MU466001 |
US $1.63 |
||
|
76173
|
76173
MF450401 WASHER, GENERATOR SETTINGSpring,3 |
MF450401 |
US $1.78 |
||
|
76181B
|
76181B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
76186
|
76186
MR279303 BUSHING, RR SEAT |
MR279303 |
US $2.81 |
||
|
76186
|
76186
MR562807 BUSHING, RR SEAT |
MR562807 |
US $3.70 |
||
|
76191D
|
76191D
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
76191E
|
76191E
MB941887 BOLT, RR SEAT6 |
MB941887 |
US $2.22 |
||
|
76203L
|
76203L
MR625511 ADJUSTER, 2ND SEAT RECLINING, LH |
MR625511 |
US $99.90 |
||
|
76203L
|
76203L
MR638487 ADJUSTER, 2ND SEAT RECLINING, LH |
MR638487 |
US $99.90 |
||
|
76206AL
|
76206AL
MN124227HA BACK ASSY, 2ND SEAT, LH |
MN124227HA |
US $679.95 |
||
|
76206AL
|
76206AL
MN124227YA BACK ASSY, 2ND SEAT, LH |
MN124227YA |
US $679.95 |
||
|
76211L
|
76211L
MN124233 BOARD, 2ND SEAT BACK |
MN124233 |
US $149.48 |
||
|
76219L
|
76219L
MR513617 PAD, 2ND SEAT BACK, LH |
MR513617 |
US $208.68 |
||
|
76248L
|
76248L
MN124229 FRAME, 2ND SEAT BACK, LH |
MN124229 |
US $193.88 |
||
|
76248L
|
76248L
MR513615 FRAME, 2ND SEAT BACK, LH |
MR513615 |
US $263.44 |
||
|
76256L
|
76256L
MN124231HA COVER, 2ND SEAT BACK, LH |
MN124231HA |
US $350.90 |
||
|
76256L
|
76256L
MN124231YA COVER, 2ND SEAT BACK, LH |
MN124231YA |
US $350.90 |
||
|
76267L
|
76267L
MR619506 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR619506 |
US $34.78 |
||
|
76267L
|
76267L
MR638495 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR638495 |
US $34.78 |
||
|
76269
|
76269
MR524352 SHAFT, 2ND SEAT FOLDING |
MR524352 |
US $71.78 |
||
|
76277
|
76277
MR619368 GUIDE, FR SEAT HEADRESTW/lock |
MR619368 |
US $9.62 |
||
|
76277
|
76277
MR619369 GUIDE, FR SEAT HEADRESTW/lock |
MR619369 |
US $9.62 |
||
|
76277
|
76277
MR619370 GUIDE, FR SEAT HEADREST |
MR619370 |
US $9.62 |
||
|
76277
|
76277
MR619371 GUIDE, FR SEAT HEADREST |
MR619371 |
US $9.62 |
||
|
76277
|
76277
MR638420 GUIDE, 2ND SEAT HEADRESTW/lock |
MR638420 |
US $9.62 |
||
|
76277
|
76277
MR638421 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR638421 |
US $9.62 |
||
|
76277
|
76277
MR642285 GUIDE, 2ND SEAT HEADRESTW/lock |
MR642285 |
US $9.62 |
||
|
76277
|
76277
MR642286 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR642286 |
US $9.62 |
||
|
76277
|
76277
MR647730 GUIDE, 2ND SEAT HEADRESTW/lock |
MR647730 |
US $9.62 |
||
|
76277
|
76277
MR647731 GUIDE, 2ND SEAT HEADRESTW/o lock |
MR647731 |
US $9.62 |
||
|
76283
|
76283
MR643190 HEADREST, FR SEAT |
MR643190 |
US $189.44 |
||
|
76283
|
76283
MR643192 HEADREST, FR SEAT |
MR643192 |
US $189.44 |
||
|
76293L
|
76293L
MR966549HB KNOB, 2ND SEAT RECLINING ADJUSTER, LH |
MR966549HB |
US $6.81 |
||
|
76293L
|
76293L
MR966549YA KNOB, 2ND SEAT RECLINING ADJUSTER, LH |
MR966549YA |
US $6.81 |
||
|
76323L
|
76323L
MR621607 LEVER, 2ND SEAT WALK-IN, LH |
MR621607 |
US $9.47 |
||
|
76323L
|
76323L
MR638515 LEVER, 2ND SEAT WALK-IN, LH |
MR638515 |
US $9.47 |
||
|
76376L
|
76376L
MR619522 COVER, 2ND SEAT FREE HINGE, LH |
MR619522 |
US $22.20 |
||
|
76376L
|
76376L
MR638511 COVER, 2ND SEAT FREE HINGE, LH |
MR638511 |
US $22.94 |
||
|
76397L
|
76397L
MR513608 ROD, RR SEAT RECLINING ADJUSTER |
MR513608 |
US $6.81 |
||
|
76398
|
76398
MR621628 CAP, 2ND SEAT |
MR621628 |
US $2.81 |
||
|
76398
|
76398
MR638519 CAP, 2ND SEAT |
MR638519 |
US $2.81 |
||
|
76448L
|
76448L
MR619510 COVER, 2ND SEAT RECLINING ADJUSTER, INR LH |
MR619510 |
US $9.03 |
||
|
76448L
|
76448L
MR638499 COVER, 2ND SEAT RECLINING ADJUSTER, INR LH |
MR638499 |
US $9.03 |
||
|
76464
|
76464
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
