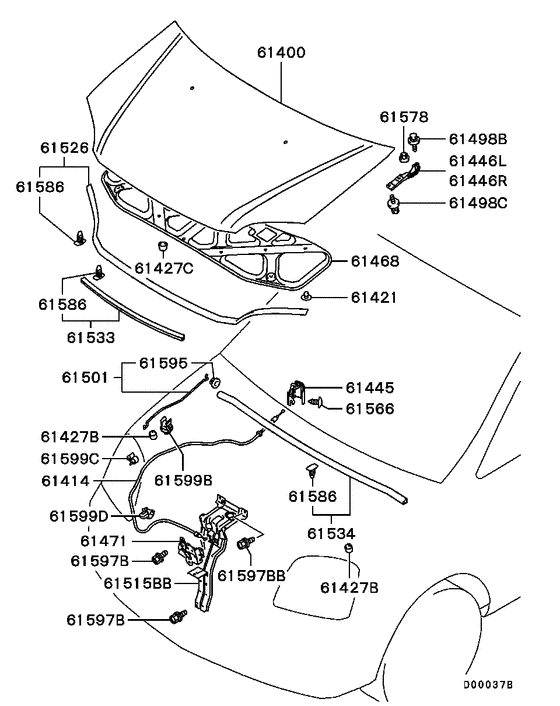

Hood & lock (ALL) Diagram Mitsubishi DION
- Year
- 2002 - 2004
- Sales region
- Japan
- Note
- VIE-X C PACKAGE 4WD,CVT
- drive
- 4WD
- transmission
- CVT
- grade
- VIE-X C PACKAGE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61400
|
61400
MR535544 HOOD |
MR535544 |
US $624.62 |
||
|
61400
|
61400
MR990378 HOOD |
MR990378 |
US $468.83 |
||
|
61414
|
61414
MR503466 CABLE, HOOD LOCK RELEASE |
MR503466 |
US $31.08 |
||
|
61414
|
61414
MR970543 CABLE, HOOD LOCK RELEASE |
MR970543 |
US $22.94 |
||
|
61427B
|
61427B
MB270408 DAMPER, HOOD** |
MB270408 |
from US $2.93 |
||
|
61427B
|
61427B
MR473471 DAMPER, HOOD** |
MR473471 |
from US $3.96 |
||
|
61427C
|
61427C
MB270607 DAMPER, HOODRubber |
MB270607 |
from US $3.12 |
||
|
61427C
|
61427C
MR523879 DAMPER, HOOD |
MR523879 |
US $4.59 |
||
|
61445
|
61445
MR616133 HANDLE, HOOD LOCK RELEASE |
MR616133 |
US $13.32 |
||
|
61445
|
61445
MR642601 HANDLE, HOOD LOCK RELEASE |
MR642601 |
US $13.32 |
||
|
61446L
|
61446L
MR503835 HINGE, HOOD, LH |
MR503835 |
US $53.28 |
||
|
61446L
|
61446L
MR970885 HINGE, HOOD, LH |
MR970885 |
US $38.48 |
||
|
61446R
|
61446R
MR503836 HINGE, HOOD, RH |
MR503836 |
US $53.28 |
||
|
61446R
|
61446R
MR970886 HINGE, HOOD, RH |
MR970886 |
US $38.48 |
||
|
61471
|
61471
MR291985 LATCH, HOOD |
MR291985 |
US $43.78 |
||
|
61471
|
61471
MR291986 LATCH, HOOD |
MR291986 |
US $37 |
||
|
61498B
|
61498B
MB142761 BOLT, FR SUSP STABILIZERWasher assembled,8x25 |
MB142761 |
from US $1.44 |
||
|
61498C
|
61498C
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.25 |
||
|
61498C
|
61498C
MU240002 BOLT, HOOD HINGEWasher assembled,8x20 |
MU240002 |
US $2.96 |
||
|
61501
|
61501
MR991709 ROD, HOOD SUPPORT |
MR991709 |
US $15.54 |
||
|
61515BB
|
61515BB
MR974571 STAY, HOOD SUPPORT |
MR974571 |
US $88.80 |
||
|
61526
|
61526
MR970394 WEATHERSTRIP, HOOD |
MR970394 |
US $13.47 |
||
|
61533
|
61533
MR526845 WEATHERSTRIP, HOOD, FR |
MR526845 |
US $11.10 |
||
|
61534
|
61534
MR434064 WEATHERSTRIP, HOOD, RR |
MR434064 |
US $14.36 |
||
|
61566
|
61566
MF453030 SCREW, ENG CONTROL EQUIPTapping,5x10 |
MF453030 |
from US $0.20 |
||
|
61578
|
61578
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
61586
|
61586
MU481027 CLIP, HOOD5.3 |
MU481027 |
from US $1.11 |
||
|
61595
|
61595
MR473426 GROMMET, HOOD LOCKING |
MR473426 |
US $3.15 |
||
|
61597B
|
61597B
MS240187 BOLT, HOOD LOCKINGWasher assembled,6x16 |
MS240187 |
US $2.87 |
||
|
61597B
|
61597B
MS240593 BOLT, FR DOOR LOCKINGWasher assembled,6x20 |
MS240593 |
US $4.10 |
||
|
61597BB
|
61597BB
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
61599B
|
61599B
MA155254 CLIP, HOOD LOCKING7 |
MA155254 |
from US $2.34 |
||
|
61599C
|
61599C
MU481269 CLIP, HOOD LOCKING |
MU481269 |
from US $1.17 |
||
|
61599D
|
61599D
MR556243 CLIP, HOOD LOCKING |
MR556243 |
US $2.81 |
