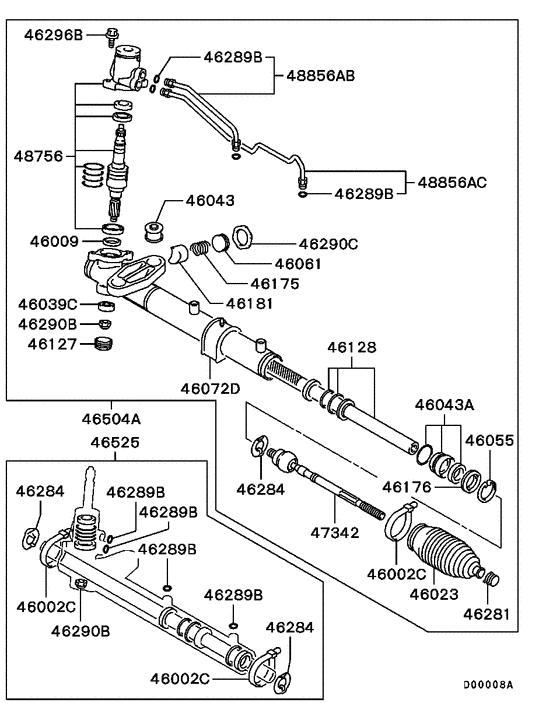

Steering gear (DISASSEMBLED PARTS) Diagram Mitsubishi DION
- Year
- 1999 - 2002
- Sales region
- Japan
- Note
- SUPER PACKAGE,4CA/T
- drive
- 2WD
- transmission
- 4CA/T
- grade
- SUPER PACKAGE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46002C
|
46002C
MR403105 BAND, STEERING GEAR |
MR403105 |
from US $7.93 |
||
|
46009
|
46009
MB815379 BEARING, STEERING GEAR PINION SHAFT, UPR |
MB815379 |
from US $12.50 |
||
|
46023
|
46023
MR510406 BELLOWS, STEERING GEAR |
MR510406 |
from US $33.01 |
||
|
46039C
|
46039C
MB870071 BEARING, STEERING GEAR PINION |
MB870071 |
US $19.15 |
||
|
46043
|
46043
MR403503 BUSHING, STEERING GEAR |
MR403503 |
from US $8.07 |
||
|
46043A
|
46043A
MR369980 BUSHING ASSY, STEERING GEAR |
MR369980 |
US $45.14 |
||
|
46055
|
46055
MB350576 CLIP, STEERING GEAR PISTON |
MB350576 |
US $7.11 |
||
|
46061
|
46061
MR223821 COVER, STEERING GEAR RACK SUPPORT |
MR223821 |
US $13.91 |
||
|
46072D
|
46072D
MR510407 CUSHION, STEERING GEAR |
MR510407 |
US $11.22 |
||
|
46127
|
46127
MB243336 PLUG, STEERING GEAR |
MB243336 |
US $15.54 |
||
|
46128
|
46128
MR510399 RACK, STEERING GEAR |
MR510399 |
US $247.16 |
||
|
46175
|
46175
MB844694 SPRING, STEERING GEAR RACK SUPPORT |
MB844694 |
US $4.74 |
||
|
46176
|
46176
MR333408
STOPPER, STEERING GEAR RACK
|
MR333408 |
— | ||
|
46181
|
46181
MB949342 SUPPORT, STEERING GEAR RACK |
MB949342 |
US $28.73 |
||
|
46281
|
46281
MR223827 CLIP, STEERING GEAR INR |
MR223827 |
from US $2.63 |
||
|
46284
|
46284
MB266164 WASHER, STEERING GEAR |
MB266164 |
from US $7.18 |
||
|
46289B
|
46289B
MB910963
O-RING, STEERING GEAR INR
|
MB910963 |
— | ||
| replacement | |||||
|
46289B
|
46289B
MB844980 O-RING, STEERING GEAR INR |
MB844980 |
US $3.83 |
||
|
46290B
|
46290B
MB243335 NUT, STEERING GEAR |
MB243335 |
US $5.47 |
||
|
46290C
|
46290C
MB501022 NUT, STEERING GEAR |
MB501022 |
US $5.92 |
||
|
46296B
|
46296B
MF140425 BOLT, ENG MOUNTINGFlange,8x20 |
MF140425 |
US $2.07 |
||
|
46504A
|
46504A
MR491366 GEAR & LINK ASSY, P/S |
MR491366 |
US $1,497.60 |
||
|
46525
|
46525
MR961786 SEAL KIT, P/S GEAR |
MR961786 |
US $136.16 |
||
|
47342
|
47342
MR403099 TIE ROD, STEERING |
MR403099 |
from US $88.06 |
||
|
48756
|
48756
MR510401 VALVE KIT, P/S GEAR CONTROL |
MR510401 |
US $592.59 |
||
|
48856AB
|
48856AB
MR510404 TUBE ASSY, P/S OIL FEED |
MR510404 |
US $32.56 |
||
|
48856AC
|
48856AC
MR510405 TUBE ASSY, P/S OIL FEED |
MR510405 |
US $34.04 |
||
