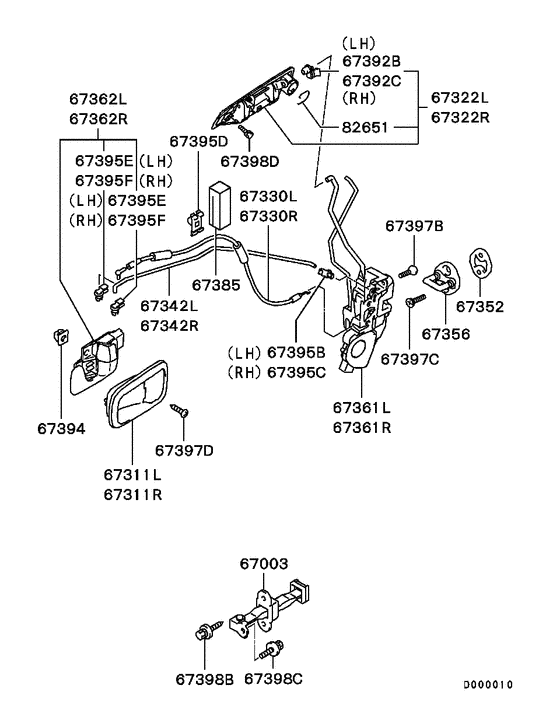

Front door locking Diagram Mitsubishi DION
- Year
- 1999 - 2002
- Sales region
- Japan
- Note
- EXCEED,4CA/T
- drive
- 2WD
- transmission
- 4CA/T
- grade
- EXCEED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67003
|
67003
MR342055 CHECK, FR DOOR |
MR342055 |
from US $22.15 |
||
|
67311L
|
67311L
MR616140 COVER, FR DOOR INSIDE HANDLE, LH |
MR616140 |
US $7.70 |
||
|
67311R
|
67311R
MR616142 COVER, FR DOOR INSIDE HANDLE, RH |
MR616142 |
US $7.70 |
||
|
67322L
|
67322L
MR526865 HANDLE, FR DOOR OUTSIDE, LH |
MR526865 |
US $75.48 |
||
|
67322R
|
67322R
MR526866 HANDLE, FR DOOR OUTSIDE, RH |
MR526866 |
US $75.48 |
||
|
67330L
|
67330L
MR462021 CABLE, FR DOOR INSIDE LOCK, LH |
MR462021 |
US $11.10 |
||
|
67330R
|
67330R
MR462022 CABLE, FR DOOR INSIDE LOCK, RH |
MR462022 |
US $11.10 |
||
|
67342L
|
67342L
MR462019 ROD, FR DOOR INSIDE HANDLE, LH |
MR462019 |
US $7.84 |
||
|
67342R
|
67342R
MR462020 ROD, FR DOOR INSIDE HANDLE, RH |
MR462020 |
US $7.84 |
||
|
67352
|
67352
MB888461 SHIM, FR DOOR LATCH STRIKERT=1.6 |
MB888461 |
from US $2.91 |
||
|
67356
|
67356
MB867059 STRIKER, FR DOOR LATCH |
MB867059 |
from US $9.87 |
||
|
67361L
|
67361L
MR523139 LATCH, FR DOOR, LH |
MR523139 |
US $204.24 |
||
|
67361R
|
67361R
MR523140 LATCH, FR DOOR, RH |
MR523140 |
US $204.24 |
||
|
67362L
|
67362L
MR556367 HANDLE, FR DOOR INSIDE, LH |
MR556367 |
US $28.12 |
||
|
67362R
|
67362R
MR556368 HANDLE, FR DOOR INSIDE, RH |
MR556368 |
US $28.12 |
||
|
67385
|
67385
MB134382 CUSHION, FR DOOR |
MB134382 |
US $3.97 |
||
|
67392B
|
67392B
MU481091 SNAP, FR DOOR LOCKING |
MU481091 |
from US $0.99 |
||
|
67392C
|
67392C
MU481090 SNAP, FR DOOR LOCKING |
MU481090 |
from US $0.82 |
||
|
67394
|
67394
MS480001 GROMMET4,HOLE=6.7X6.7 |
MS480001 |
from US $0.84 |
||
|
67395B
|
67395B
MU481193 CLIP, FR DOOR LOCKING6 |
MU481193 |
from US $0.66 |
||
|
67395C
|
67395C
MU481194 CLIP, FR DOOR LOCKING6 |
MU481194 |
from US $0.80 |
||
|
67395D
|
67395D
MU481211 CLIP, FR DOOR LOCKING6.9 |
MU481211 |
US $3.69 |
||
|
67395E
|
67395E
MS470433 CLIP, PTO GEARSHIFT LINK4.2 |
MS470433 |
US $4.24 |
||
|
67395F
|
67395F
MS470434 CLIP, FR DOOR LOCKING4.2 |
MS470434 |
from US $2.07 |
||
|
67397B
|
67397B
MU200079 SCREW, FR DOOR LOCKINGMachine(plus),6x18 |
MU200079 |
US $3.01 |
||
|
67397C
|
67397C
MU200069 SCREW, FR DOOR LOCKINGWasher assembled,8x22.5 |
MU200069 |
US $3.15 |
||
|
67397D
|
67397D
MF453077 SCREW, ENG AIR INTAKE LINETapping,4x12 |
MF453077 |
from US $1.77 |
||
|
67398B
|
67398B
MS240041 BOLT, ENG OIL COOLER LINEWasher assembled,6x16 |
MS240041 |
from US $0.84 |
||
|
67398B
|
67398B
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
67398B
|
67398B
MS240055 BOLT, RR BUMPERWasher assembled,6x20 |
MS240055 |
US $2.07 |
||
|
67398C
|
67398C
MS240593 BOLT, FR DOOR LOCKINGWasher assembled,6x20 |
MS240593 |
US $4.10 |
||
|
67398D
|
67398D
MS240040 BOLT, IGNITION COILWasher assembled,6x8 |
MS240040 |
US $2.46 |
||
|
82651
|
82651
MB676441 RING, DOOR LOCK CYLINDER |
MB676441 |
US $1.78 |
