	Description	OEM Part #	Price
87111B	87111B MR513413 CLAMP, RR A/C	MR513413	—
87113	87113 MR500426 DUCT, RR A/C, NO.1	MR500426	US $39.96
87114	87114 MR500525 DUCT, RR A/C, NO.2	MR500525	US $27.38
87118	87118 MR513250 KNOB, A/C CONTROL	MR513250	US $4.88
87132	87132 MR513447 CASE, RR A/C	MR513447	—
87177	87177 MR500599 GRILLE, A/C AIR OUTLET	MR500599	US $61.42
87201	87201 MR513408 PIPE, RR A/C DISCHARGE	MR513408	—
87202	87202 MR513407 PIPE, RR A/C SUCTION	MR513407	—
87420	87420 MR513406 HOSE, RR A/C DRAIN	MR513406	—
87423	87423 MR500881 SWITCH, RR A/C FAN	MR500881	US $34.04
87427	87427 MR500383 COOLING UNIT, RR A/C	MR500383	—
87433	87433 MR513410 EVAPORATOR, RR A/C UNIT	MR513410	—
87439	87439 MR149563 VALVE, RR A/C EXPANSION	MR149563	—
87444	87444 MR513412 FAN & MOTOR, RR A/C BLOWER	MR513412	—
87445	87445 MR513411 RESISTOR, RR A/C BLOWER	MR513411	—
87460	87460 MR500520 PANEL, RR A/C CONTROL	MR500520	US $125.06
87463	87463 MR500569 SWITCH, RR A/C CONTROL	MR500569	US $63.64
87508B	87508B MR500894 GROMMET, RR A/C	MR500894	US $5.77
87509B	87509B MR270770 CLIP, RR HEATER	MR270770	US $1.78
87509C	87509C MR283297 CLIP, A/C	MR283297	—
87511B	87511B MS240141 BOLT, FUEL FILLER LID PANEL Washer assembled,6x16	MS240141	from US $1.25
87512B	87512B MF453031 SCREW 5x12 Tapping,5x12	MF453031	from US $1.50
87512D	87512D MR513497 SCREW, RR A/C	MR513497	—
87512E	87512E MF455016 SCREW, STEERING WHEEL Tapping,4x10	MF455016	from US $0.30
87512F	87512F MF453022 SCREW, HEATER CONTROL EQUIP Tapping,4x30	MF453022	US $2.07
87613B	87613B MB946604 O-RING, RR A/C	MB946604	from US $0.82
87613C	87613C MB946605 O-RING, RR A/C 1/2	MB946605	from US $1.56

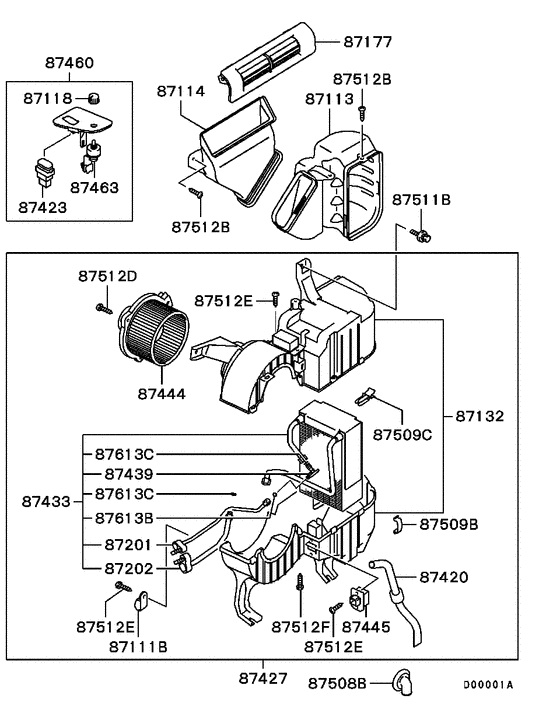

Rr a/c unit, duct Diagram Mitsubishi DION Japan 7928861-627924

Rr a/c unit, duct Diagram Mitsubishi DION Japan 7928861-627924
