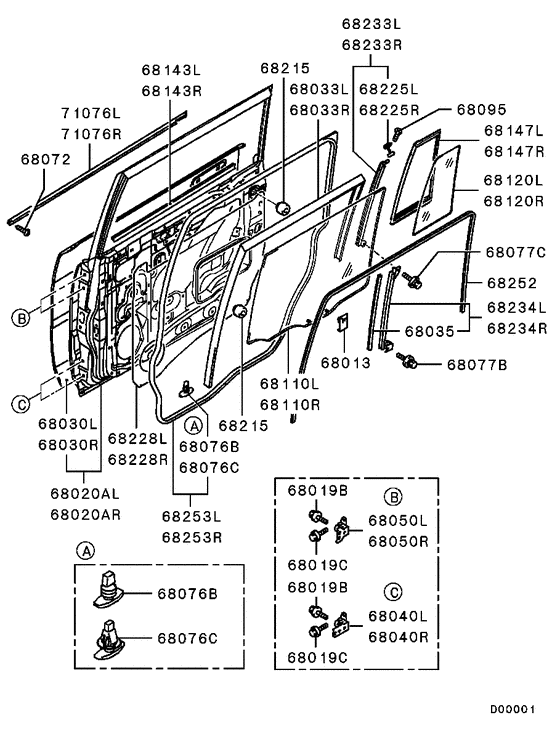

Rear door panel & glass Diagram Mitsubishi DION
- Year
- 2000 - 2002
- Sales region
- Japan
- Note
- SUNROOF NAVI PACKAGE,4CA/T
- drive
- 2WD
- transmission
- 4CA/T
- grade
- SUNROOF NAVI PA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68013
|
68013
MB517810 HOLDER, FR DOOR WINDOW GLASS |
MB517810 |
US $6.43 |
||
|
68019B
|
68019B
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.44 |
||
|
68019C
|
68019C
MU140017 BOLT, FR DOOR HINGEFlange,8x20 |
MU140017 |
from US $1.44 |
||
|
68020AL
|
68020AL
MR555459 PANEL ASSY, RR DOOR, LH |
MR555459 |
US $1,000.27 |
||
|
68020AR
|
68020AR
MR555460 PANEL ASSY, RR DOOR, RH |
MR555460 |
US $1,000.27 |
||
|
68030L
|
68030L
MR555461 PANEL, RR DOOR, OTR LH |
MR555461 |
US $284.16 |
||
|
68030R
|
68030R
MR555462 PANEL, RR DOOR, OTR RH |
MR555462 |
US $284.16 |
||
|
68033L
|
68033L
MR503249 RUNCHANNEL, RR DOOR WINDOW GLASS, LH |
MR503249 |
US $51.80 |
||
|
68033R
|
68033R
MR503250 RUNCHANNEL, RR DOOR WINDOW GLASS, RH |
MR503250 |
US $51.80 |
||
|
68035
|
68035
MR523281 RUNCHANNEL, RR DOOR WINDOW GLASS, RR |
MR523281 |
US $6.81 |
||
|
68040L
|
68040L
MR302271 HINGE, FR DOOR, LWR LH |
MR302271 |
US $24.42 |
||
|
68040R
|
68040R
MR302270 HINGE, FR DOOR, LWR RH |
MR302270 |
from US $23.63 |
||
|
68050L
|
68050L
MR313665 HINGE, RR DOOR, UPR LH |
MR313665 |
US $24.42 |
||
|
68050R
|
68050R
MR313666 HINGE, RR DOOR, UPR RH |
MR313666 |
US $24.42 |
||
|
68072
|
68072
MF453076 SCREW, GEARSHIFT LINKTapping,4x10 |
MF453076 |
from US $1.76 |
||
|
68076B
|
68076B
MB105489 CLIP, HOOD5.2 |
MB105489 |
US $4.10 |
||
|
68076C
|
68076C
MU481283 CLIP, FR DOOR5.2 |
MU481283 |
US $4.24 |
||
|
68077B
|
68077B
MB321590
Bolt
|
MB321590 |
— | ||
| replacement | |||||
|
68077B
|
68077B
MU240087 BOLTWasher assembled,6x10 |
MU240087 |
from US $1.31 |
||
|
68077C
|
68077C
MS240042 BOLT, RADIATORWasher assembled,6x20 |
MS240042 |
from US $0.49 |
||
|
68095
|
68095
MF201546 SCREW, RR BODYMachine,5x8 |
MF201546 |
US $3.56 |
||
|
68110L
|
68110L
MR503273 GLASS, RR DOOR WINDOW, LH |
MR503273 |
US $202.76 |
||
|
68110R
|
68110R
MR503274 GLASS, RR DOOR WINDOW, RH |
MR503274 |
US $202.76 |
||
|
68120L
|
68120L
MR503279 GLASS, RR DOOR STATIONARY WINDOW, LH |
MR503279 |
US $69.56 |
||
|
68120R
|
68120R
MR503280 GLASS, RR DOOR STATIONARY WINDOW, RH |
MR503280 |
US $69.56 |
||
|
68143L
|
68143L
MR503287 WEATHERSTRIP, RR DOOR BELT, INR LH |
MR503287 |
US $26.64 |
||
|
68143R
|
68143R
MR503288 WEATHERSTRIP, RR DOOR BELT, INR RH |
MR503288 |
US $26.64 |
||
|
68147L
|
68147L
MR503281 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, LH |
MR503281 |
US $34.04 |
||
|
68147R
|
68147R
MR503282 WEATHERSTRIP, RR DOOR STATIONARY WINDOW, RH |
MR503282 |
US $34.04 |
||
|
68215
|
68215
MB019730 CUSHION, FR DOOR |
MB019730 |
from US $2.13 |
||
|
68225L
|
68225L
MR503257 PROTECTOR, RR DOOR CTR SASH, LH |
MR503257 |
US $1.63 |
||
|
68225R
|
68225R
MR503258 PROTECTOR, RR DOOR CTR SASH, RH |
MR503258 |
US $1.63 |
||
|
68228L
|
68228L
MR503479 FILM, RR DOOR WATERPROOF, LH |
MR503479 |
US $11.25 |
||
|
68228R
|
68228R
MR503480 FILM, RR DOOR WATERPROOF, RH |
MR503480 |
US $11.25 |
||
|
68233L
|
68233L
MR503251 SASH, RR DOOR WINDOW, CTR LH |
MR503251 |
US $30.34 |
||
|
68233R
|
68233R
MR503252 SASH, RR DOOR WINDOW, CTR RH |
MR503252 |
US $30.34 |
||
|
68234L
|
68234L
MR503867 SASH, RR DOOR WINDOW, CTR LWR LH |
MR503867 |
US $22.20 |
||
|
68234R
|
68234R
MR503868 SASH, RR DOOR WINDOW, CTR LWR RH |
MR503868 |
US $22.20 |
||
|
68252
|
68252
MR616067 WEATHERSTRIP, RR DOOR OPENING, INR |
MR616067 |
US $45.14 |
||
|
68253L
|
68253L
MR503289 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MR503289 |
US $85.10 |
||
|
68253L
|
68253L
MR503291 WEATHERSTRIP, RR DOOR OPENING, OTR LH |
MR503291 |
US $85.10 |
||
|
68253R
|
68253R
MR503290 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MR503290 |
US $85.10 |
||
|
68253R
|
68253R
MR503292 WEATHERSTRIP, RR DOOR OPENING, OTR RH |
MR503292 |
US $85.10 |
||
|
71076L
|
71076L
MR503285 MOULDING, RR DOOR WINDOW BELT LINE, LH |
MR503285 |
US $47.36 |
||
|
71076R
|
71076R
MR503286 MOULDING, RR DOOR WINDOW BELT LINE, RH |
MR503286 |
US $47.36 |
||
