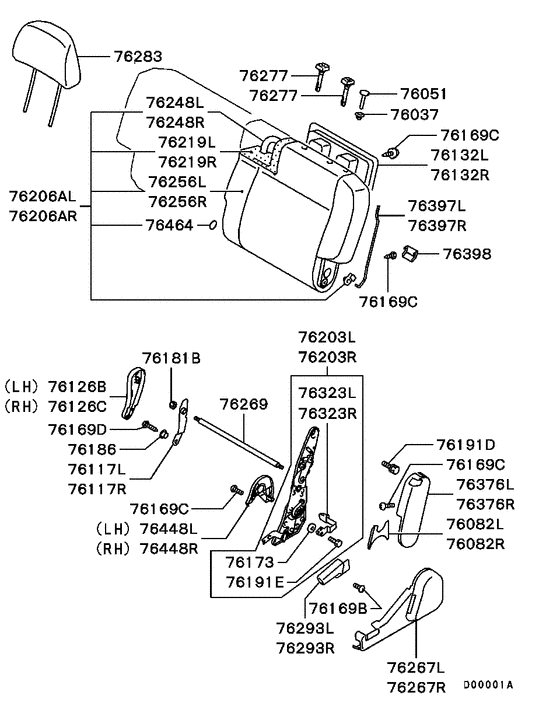

Rear seat (BACK) Diagram Mitsubishi DION
- Year
- 2000 - 2002
- Sales region
- Japan
- Note
- SUNROOF NAVI PACKAGE,4CA/T
- drive
- 2WD
- transmission
- 4CA/T
- grade
- SUNROOF NAVI PA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76037
|
76037
MR619358 GARNISH, FR SEAT FOLDING KNOB |
MR619358 |
US $1.92 |
||
|
76051
|
76051
MR619617 KNOB, RR SEAT FOLDING |
MR619617 |
US $3.26 |
||
|
76082L
|
76082L
MR619420 COVER, RR SEAT HINGE, LH |
MR619420 |
US $3.55 |
||
|
76082R
|
76082R
MR619422 COVER, RR SEAT HINGE, RH |
MR619422 |
US $2.66 |
||
|
76117L
|
76117L
MR457133 BRACKET, RR SEAT FREE HINGE, LH |
MR457133 |
US $19.98 |
||
|
76117R
|
76117R
MR457134 BRACKET, RR SEAT FREE HINGE, RH |
MR457134 |
US $19.98 |
||
|
76126B
|
76126B
MN124223YB COVER, RR SEAT BACK HINGE |
MN124223YB |
US $9.62 |
||
|
76126C
|
76126C
MN124224YB COVER, RR SEAT BACK HINGE |
MN124224YB |
US $9.62 |
||
|
76132L
|
76132L
MR619534 TRAY, 2ND SEAT BACK, RH |
MR619534 |
US $149.48 |
||
|
76132R
|
76132R
MR619534 TRAY, 2ND SEAT BACK, RH |
MR619534 |
US $149.48 |
||
|
76169B
|
76169B
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
76169C
|
76169C
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
76169D
|
76169D
MB902325 SCREW, FR SEATWasher assembled,6x12 |
MB902325 |
US $2.52 |
||
|
76173
|
76173
MF450401 WASHER, GENERATOR SETTINGSpring,3 |
MF450401 |
US $1.78 |
||
|
76181B
|
76181B
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
76186
|
76186
MR279303 BUSHING, RR SEAT |
MR279303 |
US $2.81 |
||
|
76191D
|
76191D
MF241279 BOLT, ENG RR MOUNTINGWasher assembled,10x18 |
MF241279 |
US $1.50 |
||
|
76191E
|
76191E
MB941887 BOLT, RR SEAT6 |
MB941887 |
US $2.22 |
||
|
76203L
|
76203L
MR625511 ADJUSTER, 2ND SEAT RECLINING, LH |
MR625511 |
US $99.90 |
||
|
76203R
|
76203R
MR625513 ADJUSTER, 2ND SEAT RECLINING, RH |
MR625513 |
US $99.90 |
||
|
76206AL
|
76206AL
MR621624 BACK ASSY, 2ND SEAT, LH |
MR621624 |
US $904.18 |
||
|
76206AR
|
76206AR
MR621626 BACK ASSY, 2ND SEAT, RH |
MR621626 |
US $824.10 |
||
|
76219L
|
76219L
MR513617 PAD, 2ND SEAT BACK, LH |
MR513617 |
US $208.68 |
||
|
76219R
|
76219R
MR513618 PAD, 2ND SEAT BACK, RH |
MR513618 |
US $253.08 |
||
|
76248L
|
76248L
MR513615 FRAME, 2ND SEAT BACK, LH |
MR513615 |
US $263.44 |
||
|
76248R
|
76248R
MR513616 FRAME, 2ND SEAT BACK, RH |
MR513616 |
US $236.80 |
||
|
76256L
|
76256L
MR621638 COVER, 2ND SEAT BACK, LH |
MR621638 |
US $468.83 |
||
|
76256R
|
76256R
MR621640 COVER, 2ND SEAT BACK, RH |
MR621640 |
US $425.15 |
||
|
76267L
|
76267L
MR619506 COVER, 2ND SEAT RECLINING ADJUSTER, LH |
MR619506 |
US $34.78 |
||
|
76267R
|
76267R
MR619508 COVER, 2ND SEAT RECLINING ADJUSTER, RH |
MR619508 |
US $34.78 |
||
|
76269
|
76269
MR524352 SHAFT, 2ND SEAT FOLDING |
MR524352 |
US $71.78 |
||
|
76277
|
76277
MR619368 GUIDE, FR SEAT HEADRESTW/lock |
MR619368 |
US $9.62 |
||
|
76277
|
76277
MR619369 GUIDE, FR SEAT HEADRESTW/lock |
MR619369 |
US $9.62 |
||
|
76277
|
76277
MR619370 GUIDE, FR SEAT HEADREST |
MR619370 |
US $9.62 |
||
|
76277
|
76277
MR619371 GUIDE, FR SEAT HEADREST |
MR619371 |
US $9.62 |
||
|
76283
|
76283
MR621602 HEADREST, FR SEAT |
MR621602 |
US $189.44 |
||
|
76293L
|
76293L
MR619364 KNOB, FR SEAT RECLINING ADJUSTER, LH |
MR619364 |
US $6.81 |
||
|
76293R
|
76293R
MR619366 KNOB, FR SEAT RECLINING ADJUSTER, RH |
MR619366 |
US $6.81 |
||
|
76323L
|
76323L
MR621607 LEVER, 2ND SEAT WALK-IN, LH |
MR621607 |
US $9.47 |
||
|
76323R
|
76323R
MR621609 LEVER, 2ND SEAT WALK-IN, RH |
MR621609 |
US $9.47 |
||
|
76376L
|
76376L
MR619522 COVER, 2ND SEAT FREE HINGE, LH |
MR619522 |
US $22.20 |
||
|
76376R
|
76376R
MR619524 COVER, 2ND SEAT FREE HINGE, RH |
MR619524 |
US $22.94 |
||
|
76397L
|
76397L
MR513608 ROD, RR SEAT RECLINING ADJUSTER |
MR513608 |
US $6.81 |
||
|
76397R
|
76397R
MR513608 ROD, RR SEAT RECLINING ADJUSTER |
MR513608 |
US $6.81 |
||
|
76398
|
76398
MR621628 CAP, 2ND SEAT |
MR621628 |
US $2.81 |
||
|
76448L
|
76448L
MR619510 COVER, 2ND SEAT RECLINING ADJUSTER, INR LH |
MR619510 |
US $9.03 |
||
|
76448R
|
76448R
MR619512 COVER, 2ND SEAT RECLINING ADJUSTER, INR RH |
MR619512 |
US $9.03 |
||
|
76464
|
76464
MA167873 RING, FR SEAT SLIDE ADJUSTER WIRE |
MA167873 |
from US $1.58 |
