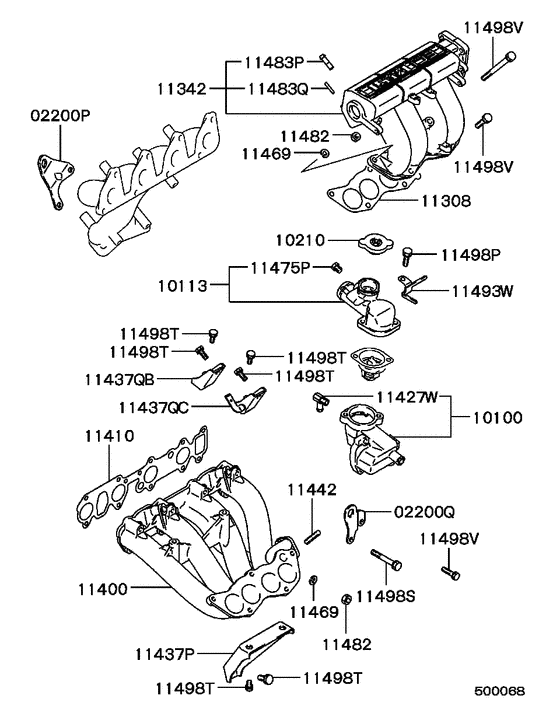

Inlet manifold (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1994
- Sales region
- EUR/MMNA
- Note
- HIGH LINE,5FM/T CAL
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200P
|
02200P
MD103721 ENGINE HANGER |
MD103721 |
US $7.84 |
||
|
02200Q
|
02200Q
MD124683
ENGINE HANGER
|
MD124683 |
— | ||
|
10100
|
10100
MD124285 CASE, THERMOSTAT |
MD124285 |
US $105.82 |
||
|
10113
|
10113
MD113164
FITTING,COOLING WATER OUTLET HOSE
|
MD113164 |
— | ||
|
10210
|
10210
MB222066
CAP, RADIATOR
|
MB222066 |
— | ||
| replacement | |||||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
10210
|
10210
MB660735 CAP, RADIATOR |
MB660735 |
from US $21.10 |
||
|
11308
|
11308
MD127981 GASKET, ENG AIR INTAKE SURGE TANK |
MD127981 |
US $17.02 |
||
|
11308
|
11308
MD184004 GASKET, ENG AIR INTAKE SURGE TANK |
MD184004 |
US $13.91 |
||
|
11342
|
11342
MD129703
TANK,ENG AIR INTAKE SURGE
|
MD129703 |
— | ||
|
11342
|
11342
MD146813
TANK,ENG AIR INTAKE SURGE
|
MD146813 |
— | ||
|
11400
|
11400
MD127813
MANIFOLD,INLET
|
MD127813 |
— | ||
|
11410
|
11410
MD112095 GASKET, INLET MANIFOLD |
MD112095 |
US $12.58 |
||
|
11410
|
11410
MD183417 GASKET, INLET MANIFOLD |
MD183417 |
US $12.73 |
||
|
11427W
|
11427W
MD081379 JOINT, INLET MANIFOLD10 |
MD081379 |
US $13.32 |
||
|
11437P
|
11437P
MD122485 STAY, INLET MANIFOLD |
MD122485 |
US $43.66 |
||
|
11437QB
|
11437QB
MD118389 STAY, INLET MANIFOLD |
MD118389 |
US $22.94 |
||
|
11437QC
|
11437QC
MD124419
STAY,INLET MANIFOLD
|
MD124419 |
— | ||
|
11442
|
11442
MS401427 STUD, CYLINDER HEAD8x25 |
MS401427 |
from US $1.07 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11475P
|
11475P
MD014929 PLUG, CYLINDER HEADTaper,1/8 |
MD014929 |
US $3.28 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483P
|
11483P
MD088093 JOINT, ROCKER COVER BREATHER HOSE |
MD088093 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11493W
|
11493W
MD138356
CLIP,INLET MANIFOLD
|
MD138356 |
— | ||
|
11498P
|
11498P
MF241255 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF241255 |
from US $1.11 |
||
|
11498S
|
11498S
MF241264 BOLT, ENG FR CASEWasher assembled,8x55 |
MF241264 |
from US $1.54 |
||
|
11498T
|
11498T
MF240080 BOLT, ENG RR MOUNTINGWasher assembled,10x20 |
MF240080 |
from US $1.21 |
||
|
11498T
|
11498T
MF241252 BOLT, CARBWasher assembled,8x18 |
MF241252 |
from US $0.96 |
||
|
11498V
|
11498V
MF241257 BOLT, CRANKCASEWasher assembled,8x30 |
MF241257 |
from US $1.42 |
||
|
11498V
|
11498V
MF241272 BOLT, CARBWasher assembled,8x100 |
MF241272 |
US $4.38 |
||
