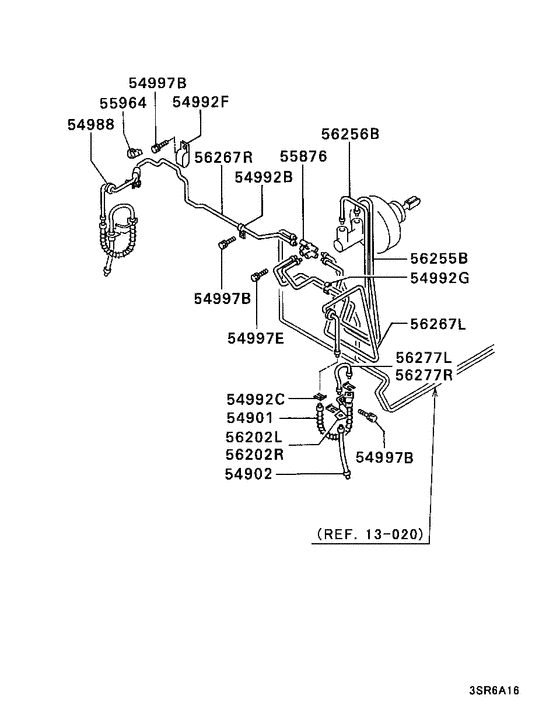

Brake line (FRONT..EXC.ABS) Diagram Mitsubishi ECLIPSE
- Year
- 1988 - 1994
- Sales region
- MMNA/MMNA
- Note
- MEDIUM LINE,5FM/T FED
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54901
|
54901
MB238162 HOSE, RR BRAKE BODY SIDE315 |
MB238162 |
US $30.34 |
||
|
54901
|
54901
MB857561 HOSE, RR BRAKE BODY SIDE315 |
MB857561 |
US $19.98 |
||
|
54901
|
54901
MB858847 HOSE, FR BRAKE BODY SIDE315 |
MB858847 |
US $29.60 |
||
|
54901
|
54901
MR129789
HOSE, FR BRAKE BODY SIDE
|
MR129789 |
— | ||
|
54902
|
54902
MB238158
HOSE, RR BRAKE BODY SIDE
|
MB238158 |
— | ||
| replacement | |||||
|
54902
|
54902
MR129744 HOSE, FR BRAKE WHEEL SIDE210 |
MR129744 |
from US $18.06 |
||
|
54902
|
54902
MB857526
HOSE, RR BRAKE BODY SIDE
|
MB857526 |
— | ||
| replacement | |||||
|
54902
|
54902
MR129744 HOSE, FR BRAKE WHEEL SIDE210 |
MR129744 |
from US $18.06 |
||
|
54902
|
54902
MB858845 HOSE, FR BRAKE WHEEL SIDE210 |
MB858845 |
US $29.60 |
||
|
54902
|
54902
MR129759 HOSE, FR BRAKE WHEEL SIDE210 |
MR129759 |
US $26.64 |
||
|
54988
|
54988
MS810053 GROMMET, FUEL LINE6 |
MS810053 |
US $3.01 |
||
|
54992B
|
54992B
MB193006 CLIP, FUEL LINED=4.76 |
MB193006 |
US $3.28 |
||
|
54992C
|
54992C
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992F
|
54992F
MB151280 CLIP, FUEL RETURN LINE8,10 |
MB151280 |
US $2.74 |
||
|
54992G
|
54992G
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
54997B
|
54997B
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
54997E
|
54997E
MF240059 BOLT, CYLINDER HEADWasher assembled,8x35 |
MF240059 |
from US $1.29 |
||
|
55876
|
55876
MB407409 VALVE, BRAKE FLUID PROPORTIONING |
MB407409 |
US $96.94 |
||
|
55876
|
55876
MB699645
VALVE, BRAKE FLUID PROPORTIONING
|
MB699645 |
— | ||
|
55964
|
55964
MU480009 GROMMET, BODY WIRING5 |
MU480009 |
from US $1.31 |
||
|
56202L
|
56202L
MB366133
BRACKET, BRAKE HOSE, LH
|
MB366133 |
— | ||
|
56202R
|
56202R
MB366134 BRACKET, BRAKE HOSE, RH |
MB366134 |
US $8.76 |
||
|
56255B
|
56255B
MB500561 TUBE, BRAKE M/CYL PRIMARY |
MB500561 |
US $10.36 |
||
|
56255B
|
56255B
MB895400 TUBE, BRAKE M/CYL PRIMARY |
MB895400 |
US $14.65 |
||
|
56256B
|
56256B
MB534426 TUBE, BRAKE M/CYL SECONDARY |
MB534426 |
US $10.95 |
||
|
56256B
|
56256B
MB895399 TUBE, BRAKE M/CYL SECONDARY |
MB895399 |
US $15.54 |
||
|
56267L
|
56267L
MB534428
TUBE, FR BRAKE, LH
|
MB534428 |
— | ||
|
56267R
|
56267R
MB500563
TUBE, FR BRAKE, RH
|
MB500563 |
— | ||
|
56267R
|
56267R
MB857176 TUBE, FR BRAKE, RH |
MB857176 |
US $42.92 |
||
|
56277L
|
56277L
MB366135 TUBE, FR BRAKE WHEEL SIDE, LH |
MB366135 |
US $9.30 |
||
|
56277R
|
56277R
MB366136 TUBE, FR BRAKE WHEEL SIDE, RH |
MB366136 |
from US $6.83 |
||
|
