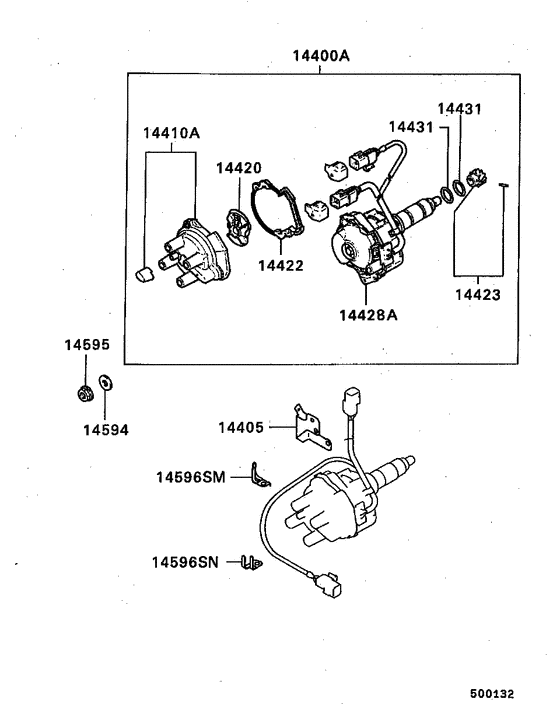

Distributor (-9005.1) Diagram Mitsubishi ECLIPSE
- Year
- 1988 - 1994
- Sales region
- MMNA/MMNA
- Note
- MEDIUM LINE,5FM/T FED
- transmission
- 5FM/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14400A
|
14400A
MD119306 DISTRIBUTOR ASSY |
MD119306 |
US $1,035.22 |
||
|
14400A
|
14400A
MD155852 DISTRIBUTOR ASSY |
MD155852 |
US $1,035.22 |
||
|
14405
|
14405
MD127874 BRACKET, DISTRIBUTOR LEAD CABLE CONNECTOR |
MD127874 |
US $14.21 |
||
|
14410A
|
14410A
MD611787
CAP ASSY, DISTRIBUTOR
|
MD611787 |
— | ||
|
14410A
|
14410A
MD618374
CAP ASSY, DISTRIBUTOR
|
MD618374 |
— | ||
|
14420
|
14420
MD611788
ROTOR, DISTRIBUTOR
|
MD611788 |
— | ||
|
14422
|
14422
MD611789
GASKET, DISTRIBUTOR CAP
|
MD611789 |
— | ||
|
14422
|
14422
MD618299
GASKET, DISTRIBUTOR CAP
|
MD618299 |
— | ||
|
14423
|
14423
MD607226
GEAR KIT, DISTRIBUTOR
|
MD607226 |
— | ||
|
14428A
|
14428A
MD618145
HOUSING ASSY, DISTRIBUTOR
|
MD618145 |
— | ||
|
14428A
|
14428A
MD618399
HOUSING ASSY, DISTRIBUTOR
|
MD618399 |
— | ||
|
14431
|
14431
MD602412
O-RING, DISTRIBUTOR
|
MD602412 |
— | ||
|
14594
|
14594
MD001521 WASHER, TIMING BELT TRAINPlain,8.5 |
MD001521 |
from US $1.21 |
||
|
14595
|
14595
MF434104 NUT, ROCKER COVERFlange,8 |
MF434104 |
from US $0.55 |
||
|
14596SM
|
14596SM
MD126248 CLIP, DISTRIBUTOR |
MD126248 |
US $5.18 |
||
|
14596SN
|
14596SN
MD126249 CLIP, DISTRIBUTOR |
MD126249 |
US $3.85 |
