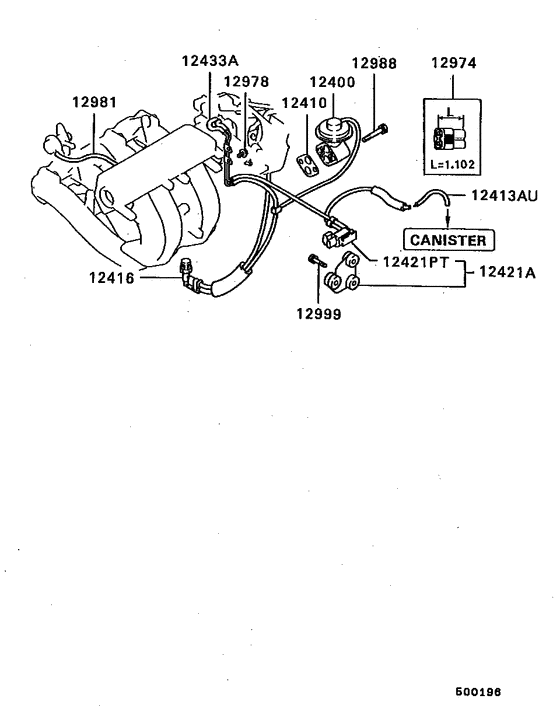

Emission control (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1992
- Sales region
- PUERTO RICO/MMNA
- Note
- MEDIUM LINE,4FA/T FED
- transmission
- 4FA/T
- grade
- MEDIUM LINE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD112794
VALVE, EGR
|
MD112794 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12410
|
12410
MD101402 GASKET, EGR VALVE |
MD101402 |
US $2.52 |
||
|
12413AU
|
12413AU
MD145580 HOSE ASSY, EMISSION VACUUM CONTROL |
MD145580 |
US $6.51 |
||
|
12416
|
12416
MD103867
THERMO-VALVE, EMISSION CONTROL
|
MD103867 |
— | ||
|
12421A
|
12421A
MD113584 VALVE ASSY, EMISSION SOLENOID |
MD113584 |
US $75.48 |
||
|
12421PT
|
12421PT
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12433A
|
12433A
MD127325
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD127325 |
— | ||
|
12433A
|
12433A
MD153144
HOSE & PIPE ASSY,EMISSION CONTROL
|
MD153144 |
— | ||
|
12974
|
12974
MD003155 JOINT,EMISSION CONTROL EQUIP |
MD003155 |
US $4.59 |
||
|
12978
|
12978
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
12981
|
12981
MS632392 HOSE, EMISSION CONTROL EQUIP3x2000 |
MS632392 |
US $54.72 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
