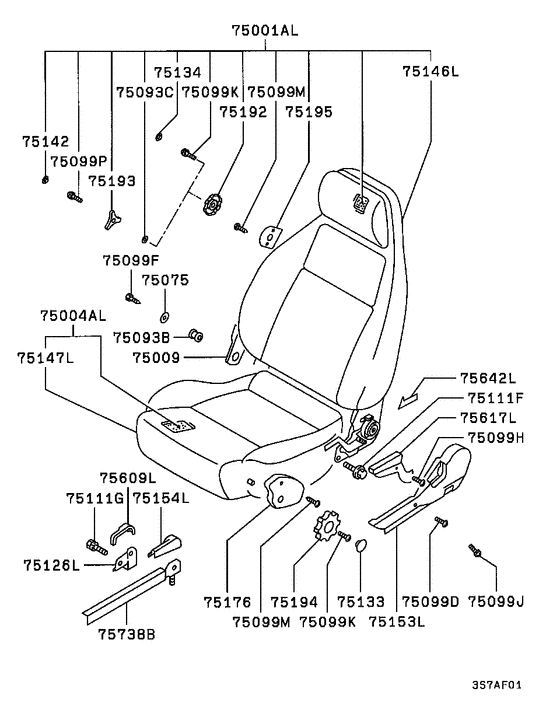

Front seat (LH CUSHION&BACK ASSY ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75001AL
|
75001AL
MB791660 BACK ASSY,FR SEAT,LH |
MB791660 |
US $1,080.35 |
||
|
75001AL
|
75001AL
MB961835
BACK ASSY,FR SEAT,LH
|
MB961835 |
— | ||
|
75001AL
|
75001AL
MB966519 BACK ASSY, FR SEAT, LH |
MB966519 |
US $1,225.95 |
||
|
75004AL
|
75004AL
MB791648 CUSHION ASSY,FR SEAT,LH |
MB791648 |
US $920.19 |
||
|
75004AL
|
75004AL
MB961833
CUSHION ASSY,FR SEAT,LH
|
MB961833 |
— | ||
|
75004AL
|
75004AL
MB966490 CUSHION ASSY, FR SEAT, LH |
MB966490 |
US $838.66 |
||
|
75009
|
75009
MB747623 PROTECTOR, FR SEAT BACK FRAME, LWR |
MB747623 |
US $7.40 |
||
|
75009
|
75009
MB791711 PROTECTOR, FR SEAT BACK FRAME, LWR |
MB791711 |
US $12.14 |
||
|
75075
|
75075
MF450193 WASHER, FR FENDERPlain,6 |
MF450193 |
from US $1.40 |
||
|
75093B
|
75093B
MB158706 BUSHING, FR SEAT12x6 |
MB158706 |
from US $1.42 |
||
|
75099D
|
75099D
MF455497 SCREW, RR PILLAR GARNISHTapping,4x12 |
MF455497 |
from US $0.20 |
||
|
75099F
|
75099F
MB074040 SCREW, FR SEAT6x12 |
MB074040 |
US $3.85 |
||
|
75099H
|
75099H
MB410568 SCREW, FR SEAT4x6 |
MB410568 |
US $3.56 |
||
|
75099J
|
75099J
MF350313 SCREW, ASSIST GRIPWasher assembled,6x16 |
MF350313 |
US $2.22 |
||
|
75099K
|
75099K
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
75099M
|
75099M
MF456110 SCREW, FLOOR CONSOLETapping,5x10 |
MF456110 |
US $2.22 |
||
|
75111F
|
75111F
MF241280 BOLT, RR SEATWasher assembled,10x20 |
MF241280 |
from US $0.98 |
||
|
75111G
|
75111G
MB268795 BOLT, FLOOR CONSOLEWasher assembled,7/16x25 |
MB268795 |
from US $2.94 |
||
|
75126L
|
75126L
MB559827 BRACKET, FR SEAT SLIDE RAIL, LH |
MB559827 |
US $139.86 |
||
|
75134
|
75134
MB747658 CAP, FR SEAT THIGH SUPPORT LEVER |
MB747658 |
US $13.62 |
||
|
75134
|
75134
MB791738 CAP, FR SEAT LUMBAR SUPPORT LEVER |
MB791738 |
US $6.81 |
||
|
75146L
|
75146L
MB791741 COVER,FR SEAT BACK,LH |
MB791741 |
US $677.04 |
||
|
75146L
|
75146L
MB961844 COVER,FR SEAT BACK,LH |
MB961844 |
US $566.38 |
||
|
75146L
|
75146L
MB966531 COVER, FR SEAT BACK, LH |
MB966531 |
US $496.50 |
||
|
75147L
|
75147L
MB791716 COVER,FR SEAT CUSHION,LH |
MB791716 |
US $596.96 |
||
|
75147L
|
75147L
MB961842 COVER,FR SEAT CUSHION,LH |
MB961842 |
US $493.58 |
||
|
75147L
|
75147L
MB966502 COVER, FR SEAT CUSHION, LH |
MB966502 |
US $556.19 |
||
|
75153L
|
75153L
MB747611
COVER, FR SEAT SIDE SHIELD, LH
|
MB747611 |
— | ||
|
75153L
|
75153L
MB791707
COVER, FR SEAT SIDE SHIELD, LH
|
MB791707 |
— | ||
|
75154L
|
75154L
MB722706 COVER, FR SEAT SLIDE RAIL, LH |
MB722706 |
US $31.82 |
||
|
75154L
|
75154L
MB791704
COVER, FR SEAT SLIDE RAIL, LH
|
MB791704 |
— | ||
|
75192
|
75192
MB747655 LEVER, FR SEAT THIGH SUPPORT |
MB747655 |
US $14.21 |
||
|
75192
|
75192
MB791737 LEVER, FR SEAT LUMBAR SUPPORT |
MB791737 |
US $26.64 |
||
|
75194
|
75194
MB747655 LEVER, FR SEAT THIGH SUPPORT |
MB747655 |
US $14.21 |
||
|
75194
|
75194
MB791737 LEVER, FR SEAT LUMBAR SUPPORT |
MB791737 |
US $26.64 |
||
|
75195
|
75195
MB747681 GARNISH, FR SEAT LUMBAR SUPPORT LEVER |
MB747681 |
US $12.88 |
||
|
75195
|
75195
MB791761 GARNISH, FR SEAT LUMBAR SUPPORT LEVER |
MB791761 |
US $14.65 |
||
|
75609L
|
75609L
MB747626
COVER, FR SEAT SLIDE RAIL BRACKET, LH
|
MB747626 |
— | ||
|
75609L
|
75609L
MB791712 COVER, FR SEAT SLIDE RAIL BRACKET, LH |
MB791712 |
US $7.70 |
||
|
75617L
|
75617L
MB725069
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MB725069 |
— | ||
|
75617L
|
75617L
MB785948
KNOB, FR SEAT RECLINING ADJUSTER, LH
|
MB785948 |
— | ||
|
75642L
|
75642L
MB747617 CAP, FR SEAT RECLINING ADJUSTER, LH |
MB747617 |
US $4.59 |
||
|
75642L
|
75642L
MB791709 CAP, FR SEAT RECLINING ADJUSTER, LH |
MB791709 |
US $5.18 |
||
|
75738B
|
75738B
MB722347 SLIDER, FR SEAT |
MB722347 |
US $51.80 |
||
|
75738B
|
75738B
MB791702 RAIL, FR SEAT BELT GUIDE, LH |
MB791702 |
US $54.02 |
