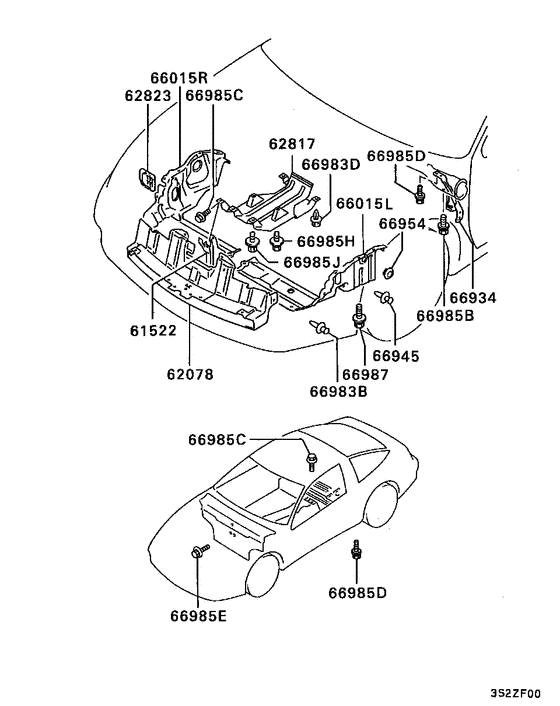

Loose panel (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61522
|
61522
MB528600
SUPPORT, HOOD LATCH
|
MB528600 |
— | ||
|
62078
|
62078
MB631167
DUCT, FR BUMPER AIR GUIDE, CTR
|
MB631167 |
— | ||
|
62817
|
62817
MB889108
PANEL,AIR GUIDE
|
MB889108 |
— | ||
|
62823
|
62823
MB574140 PLATE, WATERPROOF |
MB574140 |
US $38.48 |
||
|
66015L
|
66015L
MB528623 COVER, ENG ROOM UNDER, LH |
MB528623 |
US $59.20 |
||
|
66015R
|
66015R
MB528624 COVER, ENG ROOM UNDER, RH |
MB528624 |
US $63.64 |
||
|
66934
|
66934
MB590077 STAY, BODY LOOSE PANEL |
MB590077 |
US $37 |
||
|
66945
|
66945
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
66954
|
66954
MS660186
PLUG, ENG CONTROL EQUIP
|
MS660186 |
— | ||
| replacement | |||||
|
66954
|
66954
MU670026 PLUG, BODY35 |
MU670026 |
from US $3.26 |
||
|
66983B
|
66983B
MB406894 CLIP, FR BUMPER8 |
MB406894 |
US $2.74 |
||
|
66983D
|
66983D
MB547806 CLIP, SPLASH SHIELD8 |
MB547806 |
from US $1.68 |
||
|
66985B
|
66985B
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
66985C
|
66985C
MS100223 BOLT, BODYFlange,6x10 |
MS100223 |
US $2.74 |
||
|
66985D
|
66985D
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
66985E
|
66985E
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
66985H
|
66985H
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
|
66985J
|
66985J
MF243626 BOLT, ENG WIRINGWasher assembled,6x20 |
MF243626 |
US $2.60 |
||
|
66987
|
66987
MS240158 BOLT, FUEL TANKWasher assembled,8x20 |
MS240158 |
US $3.69 |
||
