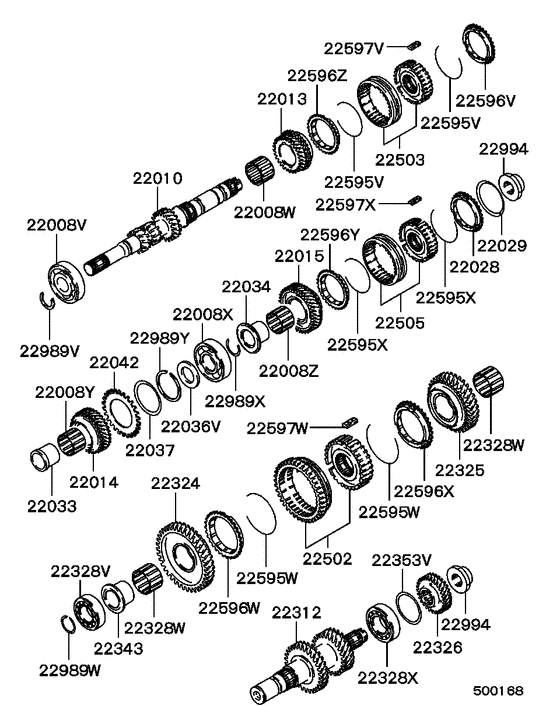

M/t gear (-9205.3 (IN/SHAFT,INTM/SHAFT)) Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22008V
|
22008V
MD700207
BEARING, M/T INPUT SHAFT
|
MD700207 |
— | ||
| replacement | |||||
|
22008V
|
22008V
2526A001 BEARING, M/T INPUT SHAFTBall,68 |
2526A001 |
from US $28.12 |
||
|
22008W
|
22008W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22008X
|
22008X
MD718030 BEARING, M/T INPUT SHAFTBall,72 |
MD718030 |
from US $36.94 |
||
|
22008Y
|
22008Y
MD718031 BEARING, M/T 4TH SPEED GEARNeedle,42 |
MD718031 |
US $16.42 |
||
|
22008Z
|
22008Z
MD719137 BEARING, M/T INPUT SHAFTNeedle,37 |
MD719137 |
from US $10.04 |
||
|
22010
|
22010
MD734850 SHAFT, M/T INPUT |
MD734850 |
US $275.28 |
||
|
22010
|
22010
MD739437 SHAFT,M/T INPUT |
MD739437 |
US $278.24 |
||
|
22010
|
22010
MD746124 SHAFT,M/T INPUT |
MD746124 |
US $269.36 |
||
|
22010
|
22010
MD747877 SHAFT,M/T INPUT |
MD747877 |
US $278.24 |
||
|
22013
|
22013
MD740768 GEAR, M/T INPUT SHAFT 3RD SPEEDN=23 |
MD740768 |
US $318.86 |
||
|
22013
|
22013
MD741794 GEAR, M/T INPUT SHAFT 3RD SPEEDN=23 |
MD741794 |
US $291.56 |
||
|
22014
|
22014
MD741795 GEAR, M/T INPUT SHAFT 4TH SPEEDN=27 |
MD741795 |
US $222 |
||
|
22014
|
22014
MD742342 GEAR, M/T INPUT SHAFT 4TH SPEEDN=27 |
MD742342 |
US $158.36 |
||
|
22015
|
22015
MD728843 GEAR, M/T INPUT SHAFT 5TH SPEEDN=42 |
MD728843 |
US $153.92 |
||
|
22015
|
22015
MD743158 GEAR, M/T INPUT SHAFT 5TH SPEEDN=42 |
MD743158 |
US $190.92 |
||
|
22015
|
22015
MD743166 GEAR, M/T INPUT SHAFT 5TH SPEEDN=42 |
MD743166 |
US $167.24 |
||
|
22028
|
22028
MD736067 RING, M/T SYNCH |
MD736067 |
US $51.30 |
||
|
22028
|
22028
MD742051
RING, M/T INPUT SHAFT REV BRAKE
|
MD742051 |
— | ||
|
22028
|
22028
MD746439 RING, M/T INPUT SHAFT REV BRAKE |
MD746439 |
US $73.87 |
||
|
22029
|
22029
MD737197 SPRING, M/T REV BRAKE WAVE |
MD737197 |
US $6.96 |
||
|
22029
|
22029
MD744342 SPRING, M/T REV BRAKE WAVE |
MD744342 |
US $9.99 |
||
|
22033
|
22033
MD718026 SLEEVE, M/T INPUT SHAFT 4TH GEAR BEARING |
MD718026 |
US $36.26 |
||
|
22034
|
22034
MD730783 SLEEVE, M/T INPUT SHAFT 5TH GEAR BEARING |
MD730783 |
US $39.96 |
||
|
22034
|
22034
MD739439 SLEEVE, M/T INPUT SHAFT 5TH GEAR BEARING |
MD739439 |
US $31.08 |
||
|
22036V
|
22036V
MD730794
SPACER, M/T INPUT SHAFT
|
MD730794 |
— | ||
|
22037
|
22037
MD723535 SPRING, M/T INPUT SHAFT SUB GEAR |
MD723535 |
US $5.48 |
||
|
22042
|
22042
MD741160 SUB GEAR, M/T INPUT SHAFT |
MD741160 |
US $22.94 |
||
|
22312
|
22312
MD741881 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD741881 |
US $551.82 |
||
|
22312
|
22312
MD743212 GEAR CLUSTER, M/T INTERMEDIATE SHAFT |
MD743212 |
US $455.73 |
||
|
22324
|
22324
MD741344
GEAR,M/T MAIN SHAFT 1ST SPEED
|
MD741344 |
— | ||
|
22324
|
22324
MD743169
GEAR,M/T MAIN SHAFT 1ST SPEED
|
MD743169 |
— | ||
|
22324
|
22324
MD744684 GEAR,M/T INTERMEDIATE SHAFT 1ST SPEED |
MD744684 |
US $260.48 |
||
|
22325
|
22325
MD736119 GEAR, M/T MAIN SHAFT 2ND SPEEDN=33 |
MD736119 |
US $294.11 |
||
|
22325
|
22325
MD743186 GEAR, M/T MAIN SHAFT 2ND SPEEDN=33 |
MD743186 |
US $307.22 |
||
|
22325
|
22325
MD743192 GEAR, M/T MAIN SHAFT 2ND SPEEDN=33 |
MD743192 |
US $175.10 |
||
|
22326
|
22326
MD740239 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=29 |
MD740239 |
US $253.08 |
||
|
22326
|
22326
MD742084 GEAR, M/T INTERMEDIATE SHAFT 5TH SPEEDN=43 |
MD742084 |
US $185 |
||
|
22328V
|
22328V
MD724118
BEARING, M/T INTERMEDIATE GEAR
|
MD724118 |
— | ||
|
22328W
|
22328W
MD718033 BEARING, M/T INTERMEDIATE GEARNeedle,42 |
MD718033 |
from US $16.42 |
||
|
22328W
|
22328W
MD737652 BEARING, M/T INTERMEDIATE GEARNeedle,47 |
MD737652 |
US $28.73 |
||
|
22328X
|
22328X
MD724117
BEARING, M/T INTERMEDIATE GEAR
|
MD724117 |
— | ||
|
22328X
|
22328X
MD726237 BEARING, M/T INTERMEDIATE GEARTaper roller,63 |
MD726237 |
US $48.56 |
||
|
22343
|
22343
MD719302 SLEEVE, M/T INTERMEDIATE SHAFT 1ST GEAR BEARING |
MD719302 |
US $36.26 |
||
|
22343
|
22343
MD740195
SLEEVE, M/T OUTPUT SHAFT 1ST SPEED GEAR
|
MD740195 |
— | ||
|
22353V
|
22353V
MD724142 SPACER, M/T INTERMEDIATE SHAFT0.80 |
MD724142 |
US $6.36 |
||
|
22353V
|
22353V
MD724143 SPACER, M/T INTERMEDIATE SHAFT0.83 |
MD724143 |
US $6.36 |
||
|
22353V
|
22353V
MD724144 SPACER, M/T INTERMEDIATE SHAFT0.86 |
MD724144 |
US $6.36 |
||
|
22353V
|
22353V
MD724145 SPACER, M/T INTERMEDIATE SHAFT0.89 |
MD724145 |
US $6.36 |
||
|
22353V
|
22353V
MD724146 SPACER, M/T INTERMEDIATE SHAFT0.92 |
MD724146 |
US $5.18 |
||
|
22353V
|
22353V
MD724147 SPACER, M/T INTERMEDIATE SHAFT0.95 |
MD724147 |
US $6.36 |
||
|
22353V
|
22353V
MD724148 SPACER, M/T INTERMEDIATE SHAFT0.98 |
MD724148 |
US $6.36 |
||
|
22353V
|
22353V
MD724149 SPACER, M/T INTERMEDIATE SHAFT1.01 |
MD724149 |
US $5.18 |
||
|
22353V
|
22353V
MD724150 SPACER, M/T POWER TRAIN1.04 |
MD724150 |
US $6.36 |
||
|
22353V
|
22353V
MD724151 SPACER, M/T INTERMEDIATE SHAFT1.07 |
MD724151 |
US $6.36 |
||
|
22353V
|
22353V
MD724152 SPACER, M/T INTERMEDIATE SHAFT1.10 |
MD724152 |
US $5.18 |
||
|
22353V
|
22353V
MD724153
SPACER, M/T INTERMEDIATE SHAFT
|
MD724153 |
— | ||
|
22353V
|
22353V
MD724154 SPACER, M/T INTERMEDIATE SHAFT1.16 |
MD724154 |
US $6.36 |
||
|
22353V
|
22353V
MD724155 SPACER, M/T INTERMEDIATE SHAFT1.19 |
MD724155 |
US $5.18 |
||
|
22353V
|
22353V
MD724156 SPACER, M/T INTERMEDIATE SHAFT1.22 |
MD724156 |
US $6.36 |
||
|
22353V
|
22353V
MD724157 SPACER, M/T INTERMEDIATE SHAFT1.25 |
MD724157 |
US $6.36 |
||
|
22353V
|
22353V
MD724158 SPACER, M/T INTERMEDIATE SHAFT1.28 |
MD724158 |
US $6.36 |
||
|
22353V
|
22353V
MD724159 SPACER, M/T INTERMEDIATE SHAFT1.31 |
MD724159 |
US $6.36 |
||
|
22353V
|
22353V
MD724160 SPACER, M/T INTERMEDIATE SHAFT1.34 |
MD724160 |
US $6.36 |
||
|
22353V
|
22353V
MD724161 SPACER, M/T INTERMEDIATE SHAFT1.37 |
MD724161 |
US $6.36 |
||
|
22353V
|
22353V
MD735659 SPACER, M/T INTERMEDIATE SHAFT0.68 |
MD735659 |
US $6.36 |
||
|
22353V
|
22353V
MD735660 SPACER, M/T INTERMEDIATE SHAFT0.71 |
MD735660 |
US $6.36 |
||
|
22353V
|
22353V
MD735661 SPACER, M/T INTERMEDIATE SHAFT0.74 |
MD735661 |
US $6.36 |
||
|
22353V
|
22353V
MD735662 SPACER, M/T INTERMEDIATE SHAFT0.77 |
MD735662 |
US $6.36 |
||
|
22353V
|
22353V
MD736754 SPACER, M/T POWER TRAIN0.62 |
MD736754 |
US $6.36 |
||
|
22353V
|
22353V
MD736755 SPACER, M/T POWER TRAIN0.65 |
MD736755 |
US $6.36 |
||
|
22502
|
22502
MD742467 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD742467 |
US $201.28 |
||
|
22502
|
22502
MD742468
HUB & SLEEVE, M/T 1ST & 2ND SYNCH
|
MD742468 |
— | ||
|
22502
|
22502
MD746144
HUB & SLEEVE, M/T 1ST & 2ND SYNCH
|
MD746144 |
— | ||
|
22502
|
22502
MD746442
HUB & SLEEVE, M/T 1ST & 2ND SYNCH
|
MD746442 |
— | ||
| replacement | |||||
|
22502
|
22502
MD747643 HUB & SLEEVE, M/T 1ST & 2ND SYNCH |
MD747643 |
US $292.03 |
||
|
22503
|
22503
MD741549
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD741549 |
— | ||
| replacement | |||||
|
22503
|
22503
MD747646
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD747646 |
— | ||
|
22503
|
22503
MD744095
HUB & SLEEVE, M/T H-L SYNCH
|
MD744095 |
— | ||
| replacement | |||||
|
22503
|
22503
MD747647
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD747647 |
— | ||
|
22503
|
22503
MD746443
HUB & SLEEVE, M/T 3RD & 4TH SYNCH
|
MD746443 |
— | ||
|
22505
|
22505
MD741396
HUB & SLEEVE, M/T H-L SYNCH
|
MD741396 |
— | ||
| replacement | |||||
|
22505
|
22505
MD747639 HUB & SLEEVE, M/T 5TH SYNCH |
MD747639 |
US $196.99 |
||
|
22505
|
22505
MD744350
HUB & SLEEVE, M/T 5TH SYNCH
|
MD744350 |
— | ||
|
22505
|
22505
MD746445
HUB & SLEEVE, M/T 5TH SYNCH
|
MD746445 |
— | ||
|
22595V
|
22595V
MD742441 SPRING, M/T SYNCH KEY |
MD742441 |
US $5.88 |
||
|
22595V
|
22595V
MD742445 SPRING, M/T SYNCH KEY |
MD742445 |
US $5.88 |
||
|
22595W
|
22595W
MD742445 SPRING, M/T SYNCH KEY |
MD742445 |
US $5.88 |
||
|
22595X
|
22595X
MD739066 SPRING, M/T SYNCH KEY |
MD739066 |
US $4.38 |
||
|
22595X
|
22595X
MD742441 SPRING, M/T SYNCH KEY |
MD742441 |
US $5.88 |
||
|
22596V
|
22596V
MD741198
RING, M/T HIGH SPEED GEAR SYNCH
|
MD741198 |
— | ||
| replacement | |||||
|
22596V
|
22596V
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596V
|
22596V
MD742536 RING, M/T SYNCH |
MD742536 |
US $43.09 |
||
|
22596V
|
22596V
MD745479 RING, M/T SYNCH |
MD745479 |
US $56.77 |
||
|
22596W
|
22596W
MD741644 RING, M/T SYNCH |
MD741644 |
US $65.12 |
||
|
22596W
|
22596W
MD742419 RING, M/T SYNCH |
MD742419 |
US $46.51 |
||
|
22596W
|
22596W
MD745477 RING, M/T SYNCH |
MD745477 |
US $71.14 |
||
|
22596X
|
22596X
MD741645
RING, M/T SYNCH
|
MD741645 |
— | ||
| replacement | |||||
|
22596X
|
22596X
MD742536 RING, M/T SYNCH |
MD742536 |
US $43.09 |
||
|
22596Y
|
22596Y
MD728990 RING, M/T 3RD SPEED GEAR SYNCH |
MD728990 |
US $65.12 |
||
|
22596Y
|
22596Y
MD742541
RING, M/T SYNCH
|
MD742541 |
— | ||
| replacement | |||||
|
22596Y
|
22596Y
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596Y
|
22596Y
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596Y
|
22596Y
MD745892 RING, M/T SYNCH |
MD745892 |
US $71.14 |
||
|
22596Z
|
22596Z
MD741198
RING, M/T HIGH SPEED GEAR SYNCH
|
MD741198 |
— | ||
| replacement | |||||
|
22596Z
|
22596Z
MD744782 RING, M/T SYNCH |
MD744782 |
from US $55.40 |
||
|
22596Z
|
22596Z
MD742536 RING, M/T SYNCH |
MD742536 |
US $43.09 |
||
|
22596Z
|
22596Z
MD745479 RING, M/T SYNCH |
MD745479 |
US $56.77 |
||
|
22597V
|
22597V
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22597W
|
22597W
MD742775 KEY, M/T SYNCH |
MD742775 |
US $6.98 |
||
|
22597X
|
22597X
MD742777 KEY, M/T SYNCH |
MD742777 |
US $6.70 |
||
|
22989V
|
22989V
MD706537 SNAP RING, M/T POWER TRAIN2.24 |
MD706537 |
US $5.88 |
||
|
22989V
|
22989V
MD706538 SNAP RING, M/T POWER TRAIN2.31 |
MD706538 |
US $5.88 |
||
|
22989V
|
22989V
MD706539 SNAP RING, M/T POWER TRAIN2.38 |
MD706539 |
from US $5.66 |
||
|
22989W
|
22989W
MD723276 SNAP RING, M/T POWER TRAIN1.4 |
MD723276 |
US $8.62 |
||
|
22989W
|
22989W
MD723277 SNAP RING, M/T POWER TRAIN1.5 |
MD723277 |
US $7.66 |
||
|
22989W
|
22989W
MD723278
SNAP RING, M/T POWER TRAIN
|
MD723278 |
— | ||
|
22989W
|
22989W
MD723279
SNAP RING, M/T POWER TRAIN
|
MD723279 |
— | ||
|
22989X
|
22989X
MD723276 SNAP RING, M/T POWER TRAIN1.4 |
MD723276 |
US $8.62 |
||
|
22989X
|
22989X
MD723277 SNAP RING, M/T POWER TRAIN1.5 |
MD723277 |
US $7.66 |
||
|
22989X
|
22989X
MD723278
SNAP RING, M/T POWER TRAIN
|
MD723278 |
— | ||
|
22989X
|
22989X
MD723279
SNAP RING, M/T POWER TRAIN
|
MD723279 |
— | ||
|
22989X
|
22989X
MD730889 SNAP RING, M/T POWER TRAIN1.45 |
MD730889 |
US $7.25 |
||
|
22989X
|
22989X
MD730890
SNAP RING, M/T POWER TRAIN
|
MD730890 |
— | ||
|
22989X
|
22989X
MD730891
SNAP RING, M/T POWER TRAIN
|
MD730891 |
— | ||
|
22989X
|
22989X
MD730892 SNAP RING, M/T POWER TRAIN1.75 |
MD730892 |
US $7.25 |
||
|
22989Y
|
22989Y
MD724392 SNAP RING, M/T POWER TRAIN1.75 |
MD724392 |
US $4.44 |
||
|
22994
|
22994
MD718035 NUT, M/T POWER TRAINLock,22 |
MD718035 |
US $11.63 |
||
|
22994
|
22994
MD731948 NUT, M/T POWER TRAINLock,22 |
MD731948 |
from US $10.12 |
||
