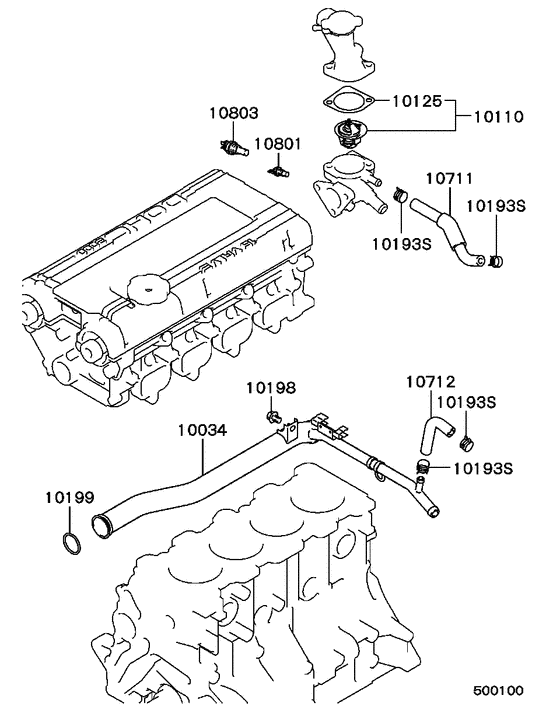

Water pipe & thermostat Diagram Mitsubishi ECLIPSE
- Year
- 1991 - 1994
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD171061 PIPE, WATER PUMP INLET |
MD171061 |
US $99.90 |
||
|
10110
|
10110
MD997607
THERMOSTAT KIT
|
MD997607 |
— | ||
|
10125
|
10125
MD171446 GASKET, THERMOSTAT WATER HOSE FITTING |
MD171446 |
US $7.55 |
||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
US $8.48 |
||
|
10193S
|
10193S
MS660243 CLIP, COOLING WATER LINE15.5 |
MS660243 |
from US $5.19 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10711
|
10711
MD146803
HOSE, ENG HEATER WATER BY-PASS
|
MD146803 |
— | ||
|
10712
|
10712
MD017335
HOSE, THROTTLE BODY WATER RETURN
|
MD017335 |
— | ||
|
10712
|
10712
MD301024
HOSE, THROTTLE BODY WATER RETURN
|
MD301024 |
— | ||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD069879
SENSOR UNIT, WATER TEMPERATURE
|
MD069879 |
— |
