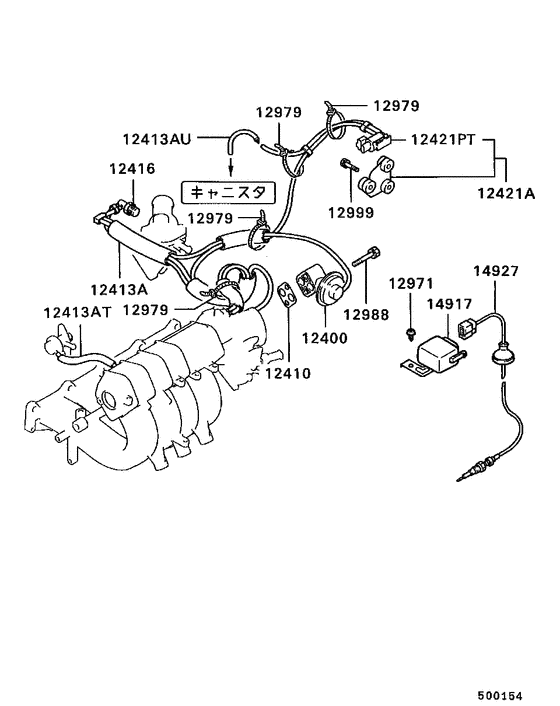

Emission control (ALL) Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12400
|
12400
MD109373 VALVE, EGR |
MD109373 |
US $129.50 |
||
|
12400
|
12400
MD112794
VALVE, EGR
|
MD112794 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD163928 HOSE ASSY, EMISSION VACUUM CONTROL |
MD163928 |
US $72.52 |
||
|
12413A
|
12413A
MD163929 HOSE ASSY, EMISSION VACUUM CONTROL |
MD163929 |
US $76.22 |
||
|
12413AT
|
12413AT
MD133228 HOSE ASSY, EMISSION VACUUM CONTROL |
MD133228 |
US $11.10 |
||
|
12413AU
|
12413AU
MD145580 HOSE ASSY, EMISSION VACUUM CONTROL |
MD145580 |
US $6.51 |
||
|
12416
|
12416
MD103867
THERMO-VALVE, EMISSION CONTROL
|
MD103867 |
— | ||
|
12421A
|
12421A
MD113584 VALVE ASSY, EMISSION SOLENOID |
MD113584 |
US $75.48 |
||
|
12421PT
|
12421PT
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12971
|
12971
MF350768 SCREW, FUEL FILLER LID PANELWasher assembled,5x12 |
MF350768 |
from US $1.77 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
14917
|
14917
MD132953 RELAY, HIGH TEMPERATURE LAMPK8t50374 |
MD132953 |
US $103.60 |
||
|
14927
|
14927
MD097290 SENSOR, EXHAUST HIGH TEMPERATURE |
MD097290 |
US $236.80 |
||
