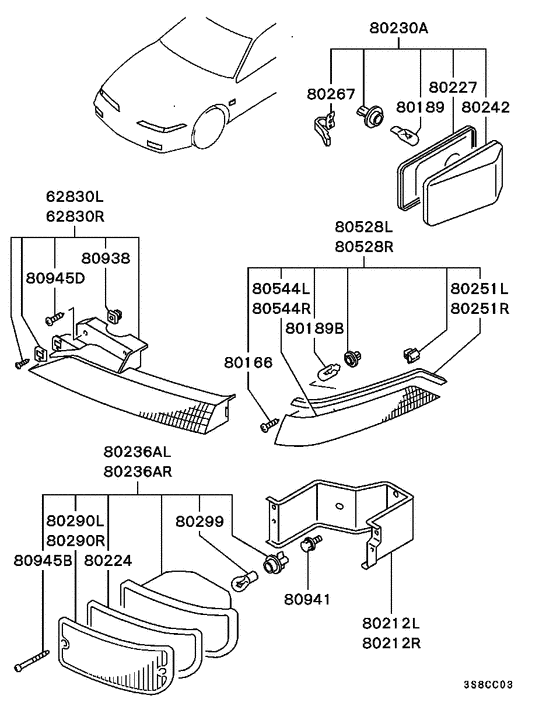

Front exterior lamp Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62830L
|
62830L
MB598247
GARNISH KIT, FR LH
|
MB598247 |
— | ||
|
62830R
|
62830R
MB598248 GARNISH KIT, FR RH |
MB598248 |
US $304.30 |
||
|
80166
|
80166
MS200125 SCREW, FR SEAT BELTMachine tapping,5x12 |
MS200125 |
US $2.81 |
||
|
80189
|
80189
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80189B
|
80189B
MS820080 BULB, FR LAMP12v-5w |
MS820080 |
from US $3.80 |
||
|
80212L
|
80212L
MB530223 BRACKET, FR FOG LAMP, LH |
MB530223 |
US $36.26 |
||
|
80212L
|
80212L
MB606257 BRACKET, FR TURN SIGNAL LAMP, LH |
MB606257 |
US $36.26 |
||
|
80212R
|
80212R
MB530224 BRACKET, FR FOG LAMP, RH |
MB530224 |
US $36.26 |
||
|
80212R
|
80212R
MB606258 BRACKET, FR TURN SIGNAL LAMP, RH |
MB606258 |
US $36.26 |
||
|
80224
|
80224
MB606273 GASKET, FR TURN SIGNAL LAMP |
MB606273 |
US $5.18 |
||
|
80227
|
80227
MB605574 GASKET, SIDE TURN SIGNAL LAMP |
MB605574 |
US $8.88 |
||
|
80230A
|
80230A
MB529093 LAMP ASSY, SIDE TURN SIGNAL, FR12v-5w |
MB529093 |
US $36.94 |
||
|
80236AL
|
80236AL
MB606253 LAMP ASSY, TURN SIGNAL, FR LH12v-21w |
MB606253 |
US $69.56 |
||
|
80236AR
|
80236AR
MB606254 LAMP ASSY, TURN SIGNAL, FR RH12v-21w |
MB606254 |
US $69.56 |
||
|
80242
|
80242
MB605573 LAMP UNIT, SIDE TURN SIGNAL, FR |
MB605573 |
US $17.76 |
||
|
80251L
|
80251L
MB596505
SEAL, FR COMBINATION LAMP END
|
MB596505 |
— | ||
|
80251R
|
80251R
MB596506
SEAL, FR COMBINATION LAMP END
|
MB596506 |
— | ||
|
80267
|
80267
MB605575 ADAPTER, FR SIDE TURN SIGNAL LAMP |
MB605575 |
US $3.11 |
||
|
80290L
|
80290L
MB606271 LENS, FR TURN SIGNAL LAMP, LH |
MB606271 |
US $15.54 |
||
|
80290R
|
80290R
MB606272 LENS, FR TURN SIGNAL LAMP, RH |
MB606272 |
US $15.54 |
||
|
80299
|
80299
MS820044
BULB, RR END PANEL GARNISH
|
MS820044 |
— | ||
| replacement | |||||
|
80299
|
80299
MS820046 BULB, FR LAMP12v-21w |
MS820046 |
from US $4.47 |
||
|
80528L
|
80528L
MB598249 LAMP KIT, CLEARANCE, LH12v-5w |
MB598249 |
US $194.26 |
||
|
80528R
|
80528R
MB598250 LAMP KIT, CLEARANCE, RH12v-5w |
MB598250 |
US $204.24 |
||
|
80544L
|
80544L
MB623449 LAMP UNIT, CLEARANCE, LH |
MB623449 |
US $158.36 |
||
|
80544R
|
80544R
MB623450 LAMP UNIT, CLEARANCE, RH |
MB623450 |
US $158.36 |
||
|
80938
|
80938
MS480002 GROMMET, HOOD LOCKINGScrew,5 |
MS480002 |
from US $1.29 |
||
|
80941
|
80941
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
80945B
|
80945B
MB184080 SCREW, FR TURN SIGNAL LAMP |
MB184080 |
US $4.14 |
||
|
80945D
|
80945D
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
