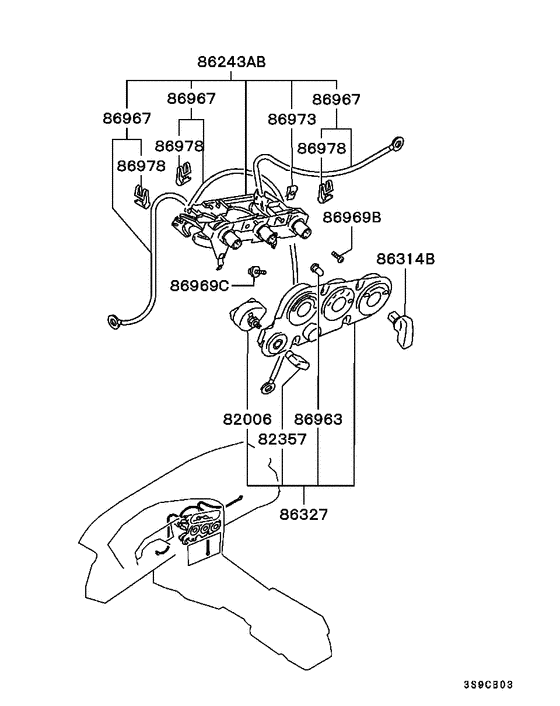

Heater control Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82006
|
82006
MB439488 SWITCH, HEATER BLOWER |
MB439488 |
from US $49.04 |
||
|
82357
|
82357
MB609229 KNOB, HEATER SWITCH |
MB609229 |
US $6.81 |
||
|
86243AB
|
86243AB
MB439453 CONTROLLER ASSY, HEATER |
MB439453 |
US $111 |
||
|
86243AB
|
86243AB
MR117247 CONTROLLER ASSY, HEATER |
MR117247 |
US $94.72 |
||
|
86314B
|
86314B
MB568113 KNOB, HEATER CONTROL LEVER |
MB568113 |
US $7.40 |
||
|
86327
|
86327
MB439454 PANEL ASSY, A/C CONTROL |
MB439454 |
US $156.88 |
||
|
86327
|
86327
MR116572 PANEL ASSY, A/C CONTROL |
MR116572 |
US $133.20 |
||
|
86963
|
86963
MB609167 BULB, HEATER CONTROL EQUIP14v-1.4w |
MB609167 |
US $8.58 |
||
|
86967
|
86967
MB439490 WIRE, HEATER CONTROL EQUIPOutside-inside,520 |
MB439490 |
US $9.03 |
||
|
86967
|
86967
MB439491 WIRE, HEATER CONTROL EQUIPMode,431 |
MB439491 |
US $25.90 |
||
|
86967
|
86967
MB439492 WIRE, HEATER CONTROL EQUIPTemp,410 |
MB439492 |
US $25.90 |
||
|
86967
|
86967
MB899737 WIRE, HEATER CONTROL EQUIPMode,431 |
MB899737 |
US $11.69 |
||
|
86969B
|
86969B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
86969C
|
86969C
MB409438 SCREW, STEERING COLUMN COVERTapping,5x16 |
MB409438 |
from US $3.16 |
||
|
86973
|
86973
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.72 |
||
|
86978
|
86978
MB298639 CLIP, FR CTR VENTILATION5.2 |
MB298639 |
from US $1.27 |
