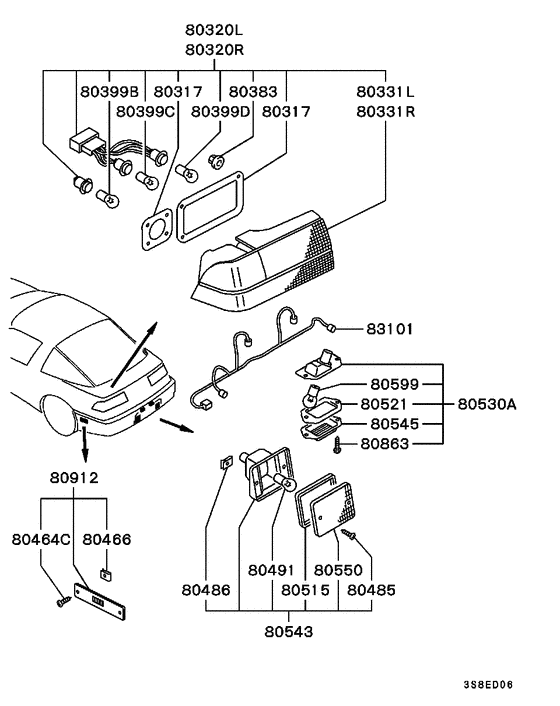

Rear exterior lamp (COMBINATION LAMP ETC.) Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80317
|
80317
MB596519 GASKET, RR COMBINATION LAMP |
MB596519 |
US $12.88 |
||
|
80317
|
80317
MB596520 GASKET, RR COMBINATION LAMP |
MB596520 |
US $6.81 |
||
|
80320L
|
80320L
MB598355 LAMP KIT, COMBINATION, RR LH12v-27/7w,27w |
MB598355 |
US $521.25 |
||
|
80320L
|
80320L
MB598357 LAMP KIT, COMBINATION, RR LH12v-27/7w,27w |
MB598357 |
US $521.25 |
||
|
80320L
|
80320L
MB598359 LAMP KIT, COMBINATION, RR LH12v-27/7w,27w |
MB598359 |
US $483.39 |
||
|
80320L
|
80320L
MB861937 LAMP KIT, COMBINATION, RR LH12v-27/7w,27w |
MB861937 |
US $544.54 |
||
|
80320L
|
80320L
MB959963 LAMP KIT, COMBINATION, RR LH12v-27/7w,27w |
MB959963 |
US $483.39 |
||
|
80320R
|
80320R
MB598356 LAMP KIT, COMBINATION, RR RH12v-27/7w,27w |
MB598356 |
US $521.25 |
||
|
80320R
|
80320R
MB598358 LAMP KIT, COMBINATION, RR RH12v-27/7w,27w |
MB598358 |
US $521.25 |
||
|
80320R
|
80320R
MB598360 LAMP KIT, COMBINATION, RR RH12v-27/7w,27w |
MB598360 |
US $483.39 |
||
|
80320R
|
80320R
MB861938 LAMP KIT, COMBINATION, RR RH12v-27/7w,27w |
MB861938 |
US $544.54 |
||
|
80320R
|
80320R
MB959964 LAMP KIT, COMBINATION, RR RH12v-27/7w,27w |
MB959964 |
US $483.39 |
||
|
80331L
|
80331L
MB623465 LAMP UNIT, COMBINATION, RR LH |
MB623465 |
US $425.15 |
||
|
80331L
|
80331L
MB623466 LAMP UNIT, COMBINATION, RR LH |
MB623466 |
US $425.15 |
||
|
80331L
|
80331L
MB623467 LAMP UNIT, COMBINATION, RR LH |
MB623467 |
US $394.58 |
||
|
80331L
|
80331L
MB794572 LAMP UNIT, COMBINATION, RR LH |
MB794572 |
US $394.58 |
||
|
80331L
|
80331L
MR705956 LAMP UNIT, COMBINATION, RR LH |
MR705956 |
US $394.58 |
||
|
80331R
|
80331R
MB623473 LAMP UNIT, COMBINATION, RR RH |
MB623473 |
US $425.15 |
||
|
80331R
|
80331R
MB623474 LAMP UNIT, COMBINATION, RR RH |
MB623474 |
US $425.15 |
||
|
80331R
|
80331R
MB623475 LAMP UNIT, COMBINATION, RR RH |
MB623475 |
US $394.58 |
||
|
80331R
|
80331R
MB794573 LAMP UNIT, COMBINATION, RR RH |
MB794573 |
US $394.58 |
||
|
80331R
|
80331R
MR705957 LAMP UNIT, COMBINATION, RR RH |
MR705957 |
US $394.58 |
||
|
80383
|
80383
MS440522 NUT, FUEL TANKWasher assembled,6 |
MS440522 |
from US $0.96 |
||
|
80399B
|
80399B
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80399C
|
80399C
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80399D
|
80399D
MS820047 BULB, TAIL LAMP12v-27/7w |
MS820047 |
US $4.79 |
||
|
80464C
|
80464C
MB596495
SCREW, RR LAMP
|
MB596495 |
— | ||
|
80466
|
80466
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80485
|
80485
MS450946
SCREW, BACKUP LAMP
|
MS450946 |
— | ||
|
80486
|
80486
MB623817 NUT, RR LAMPSpring,4 |
MB623817 |
US $3.97 |
||
|
80491
|
80491
MS820043 BULB, FR TURN SIGNAL LAMP12v-27w |
MS820043 |
US $5.77 |
||
|
80515
|
80515
MB596493 GASKET, BACKUP LAMP |
MB596493 |
US $5.62 |
||
|
80521
|
80521
MB596502 GASKET, LICENSE PLATE LAMP LENS |
MB596502 |
from US $1.46 |
||
|
80530A
|
80530A
MB606249 LAMP ASSY, LICENSE PLATE12v-5w |
MB606249 |
US $30.34 |
||
|
80543
|
80543
MB597781 LAMP KIT, BACKUP12v-27w |
MB597781 |
US $39.96 |
||
|
80545
|
80545
MB596500 LENS, LICENSE PLATE LAMP |
MB596500 |
from US $2.57 |
||
|
80550
|
80550
MB596492 LENS, BACKUP LAMP |
MB596492 |
US $5.62 |
||
|
80599
|
80599
MS820090 BULB (12V, 5W)12v-5w |
MS820090 |
from US $2.44 |
||
|
80863
|
80863
MS200335 SCREW, LICENSE PLATE LAMPMachine,4x14 |
MS200335 |
US $2.60 |
||
|
80912
|
80912
MB598306 REFLECTOR KIT, RR SIDE MARKER |
MB598306 |
US $37 |
||
|
83101
|
83101
MB530247 HARNESS, LICENSE PLATE LAMP |
MB530247 |
US $107.30 |
