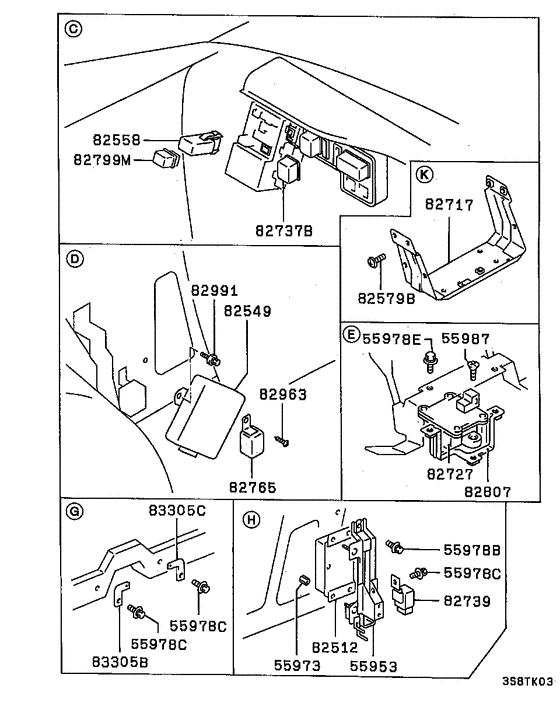

Relay,flasher & sensor (RELAY..INTERIOR) Diagram Mitsubishi ECLIPSE
- Year
- 1989 - 1993
- Sales region
- MMNA
- Note
- GS,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82549
|
82549
MB543651 CONTROL UNIT, AUTO SEAT BELTX2f01631 |
MB543651 |
US $518.34 |
||
|
82558
|
82558
MB302373
FLASHER UNIT, HAZARD & TURN SIGNAL LAMP
|
MB302373 |
— | ||
|
82579B
|
82579B
MF350767 SCREW, FUEL FILLER LID PANELWasher assembled,5x10 |
MF350767 |
US $2.05 |
||
|
82717
|
82717
MB628024 BRACKET, RELAY |
MB628024 |
US $22.94 |
||
|
82717
|
82717
MB649241 BRACKET, ALARM LAMP RELAY |
MB649241 |
US $12.88 |
||
|
82737B
|
82737B
MB543647 CONTROL UNIT, DOORG8r-27m |
MB543647 |
US $69.56 |
||
|
82765
|
82765
MB530319 RELAY, ROOM LAMPG8d-70m |
MB530319 |
US $85.10 |
||
|
82799M
|
82799M
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
82963
|
82963
MS450157 SCREW, ENG CONTROL EQUIPTapping,5x16 |
MS450157 |
from US $2.81 |
||
|
82991
|
82991
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
82991
|
82991
MS240391 BOLT, CRUISE CONTROL ELECTRICALSWasher assembled,6x16 |
MS240391 |
US $3.01 |
