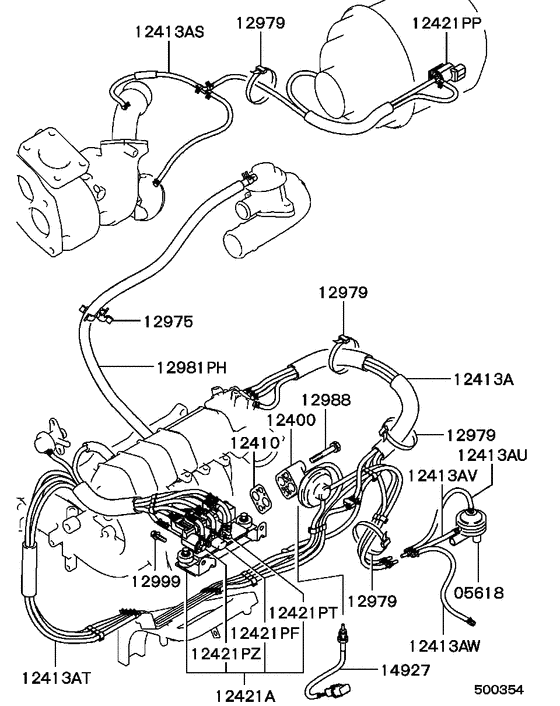

Emission control (WITH TURBO..CALIFORNIA) Diagram Mitsubishi ECLIPSE
- Year
- 1990 - 1994
- Sales region
- MMNA/MMNA
- Note
- PREMIUM LINE(TURBO),5FM/T CAL
- drive
- 2WD
- transmission
- 5FM/T
- grade
- PREMIUM LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05618
|
05618
MD011227
VALVE, PURGE CONTROL
|
MD011227 |
— | ||
|
12400
|
12400
MD120440
VALVE,EGR
|
MD120440 |
— | ||
|
12410
|
12410
MD088604
GASKET, EGR VALVE
|
MD088604 |
— | ||
| replacement | |||||
|
12410
|
12410
MD119127 GASKET, EGR VALVE |
MD119127 |
from US $2.44 |
||
|
12413A
|
12413A
MD153149
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD153149 |
— | ||
|
12413A
|
12413A
MD193418
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD193418 |
— | ||
|
12413AS
|
12413AS
MD139711 HOSE ASSY, EMISSION VACUUM CONTROL |
MD139711 |
US $47.36 |
||
|
12413AT
|
12413AT
MD133241
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD133241 |
— | ||
|
12413AT
|
12413AT
MD193472
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD193472 |
— | ||
|
12413AU
|
12413AU
MD154218 HOSE ASSY, EMISSION VACUUM CONTROL |
MD154218 |
US $7.99 |
||
|
12413AV
|
12413AV
MD154217 HOSE ASSY, EMISSION VACUUM CONTROL |
MD154217 |
US $10.80 |
||
|
12413AW
|
12413AW
MD193474
HOSE ASSY,EMISSION VACUUM CONTROL
|
MD193474 |
— | ||
|
12421A
|
12421A
MB925993
VALVE ASSY,EMISSION SOLENOID
|
MB925993 |
— | ||
|
12421A
|
12421A
MD128601
VALVE ASSY,EMISSION SOLENOID
|
MD128601 |
— | ||
|
12421PF
|
12421PF
MD113721 VALVE, EMISSION SOLENOID |
MD113721 |
US $78.66 |
||
|
12421PP
|
12421PP
MD115466
VALVE, EMISSION SOLENOID
|
MD115466 |
— | ||
|
12421PT
|
12421PT
MD110681
VALVE, EMISSION SOLENOID
|
MD110681 |
— | ||
|
12421PT
|
12421PT
MD112375 VALVE, EMISSION SOLENOID |
MD112375 |
US $77.29 |
||
|
12421PZ
|
12421PZ
MD126812 VALVE, EMISSION SOLENOID |
MD126812 |
US $75.92 |
||
|
12975
|
12975
MS470465 CLIP, FUEL RETURN LINED=13-16.5 |
MS470465 |
US $3.69 |
||
|
12979
|
12979
MB249338 BAND, ROCKER COVERL=129.5 |
MB249338 |
US $2.87 |
||
|
12979
|
12979
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
12981PH
|
12981PH
MD130550 HOSE, EMISSION CONTROL EQUIP5.4x720 |
MD130550 |
US $39.96 |
||
|
12988
|
12988
MF241263 BOLT, BALANCER BELT TRAINWasher assembled,8x50 |
MF241263 |
US $1.50 |
||
|
12999
|
12999
MF244824 BOLTWasher assembled,6x16 |
MF244824 |
from US $0.82 |
||
|
12999
|
12999
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
12999
|
12999
MS240144 BOLT, FUEL LINEWasher assembled,6x30 |
MS240144 |
US $2.07 |
||
|
14927
|
14927
MD127984
SENSOR,EXHAUST HIGH TEMPERATURE
|
MD127984 |
— | ||
